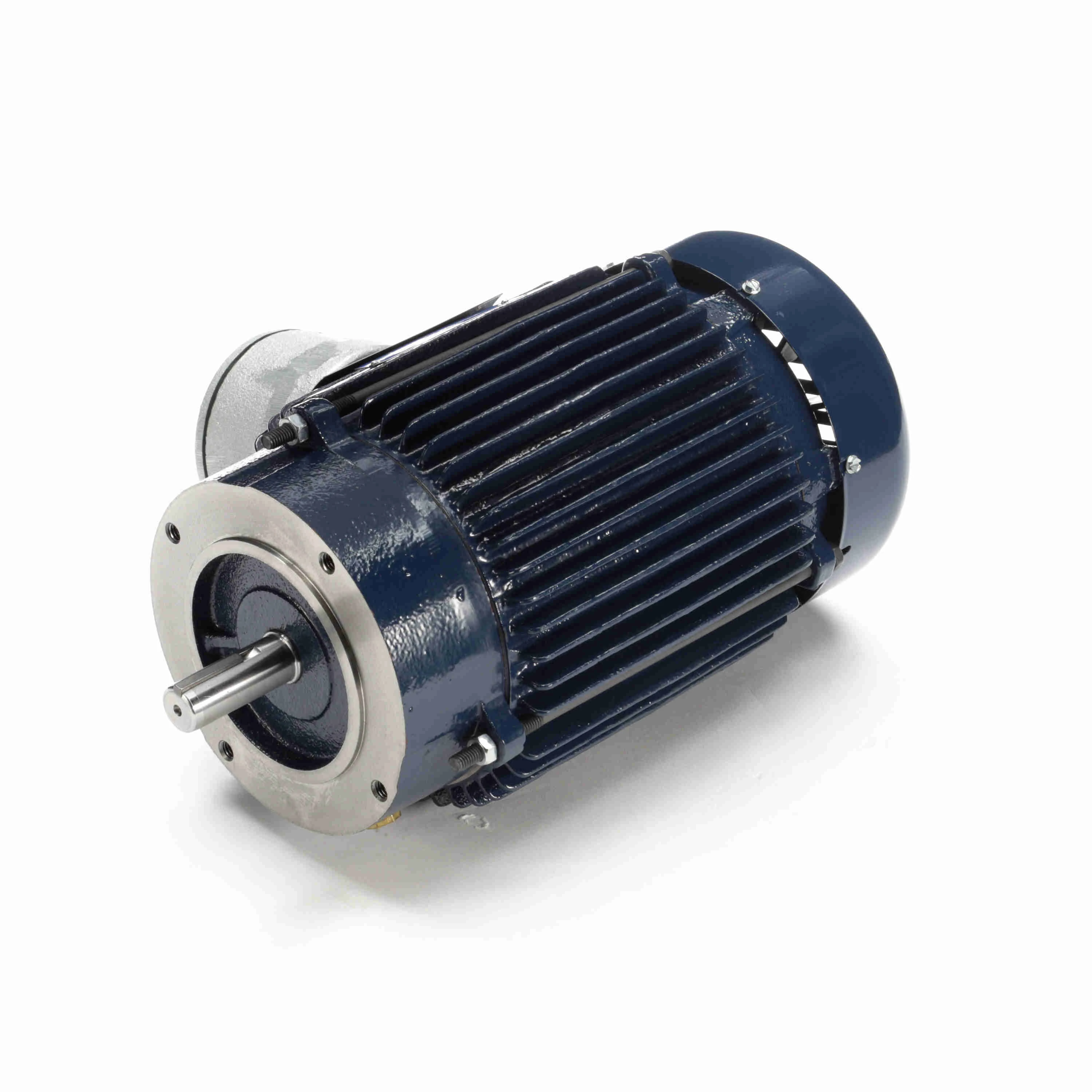

LEESON 145TTGN16036 145TTGN16036AA / C321B Explosion Proof Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM
Get it by Monday, Jun 16
€1,122.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | NEMA Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Hazardous Location Class | Class 1D/2F, Class G |
| Hazardous Location Division | Division 1 |
| Hp | 1 1/2 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length Less Shaft | 13.062" |
| Motor Application | Hazardous Location |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1755 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Overall Length | 15.188" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Full Load Amps | 4.6/2.3A |
| Hz | 60 |
| Ins. Class | Class B |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | T-Stat |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Voltage | 230/460V AC |
| Weight | 256 lbs. |
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
| Product | Model | Frame | Frame Material | Full Load Amps | Hazardous Location Class | HP | Hz | Lead Length | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17G15599 | 56C | Rolled Steel | 3.3/1.6 | 1 C,D / 2 F,G | 1 | 60 | 18" | 14 1/16" | €1,105.05 | |
 |
056T17G15615 | 56C | Rolled Steel | 1.3 | 1 C,D / 2 F,G | 1 | 60 | 18" | 14 1/16" | €1,105.05 | |
 |
056T17G15601 | 56C | Rolled Steel | 4.6/2.3 | 1 C,D / 2 F,G | 1.5 | 60 | 18" | 14 1/16" | €1,543.37 | |
 |
143TTGN16539 | 143TC | Cast Iron | 3.3/1.6 | 1 D / 2 F,G | 1 | 50/60 | 12" | 13 1/16" | €1,058.75 |
