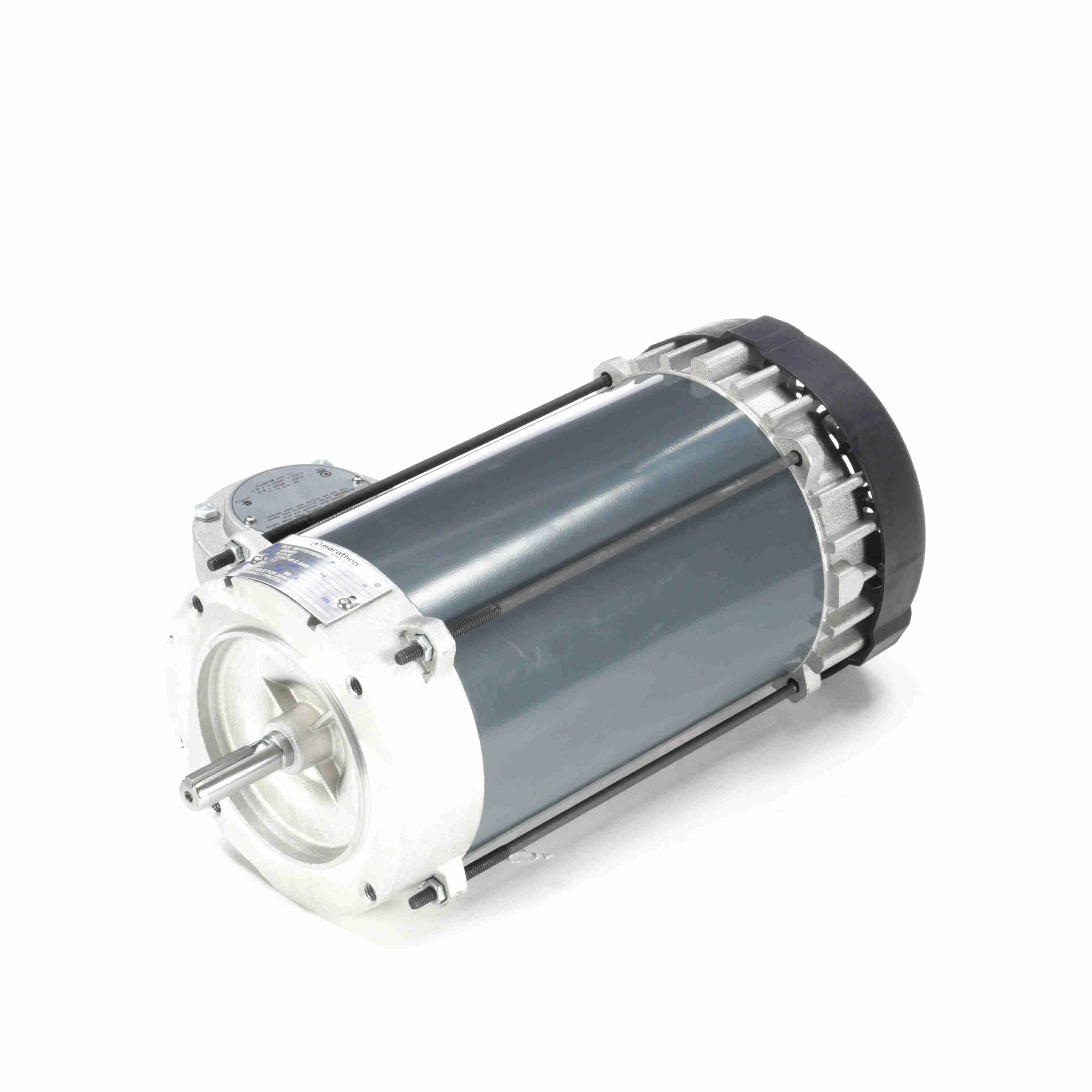

LEESON 056T17G15599 56T17G15599A / G841A Explosion Proof Motor, 1 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Friday, Jun 13
€1,105.05 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | NEMA Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 13 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Hazardous Location |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nema Design | A |
| Nominal Efficiency | 85.5% , 86.5% |
| Number | CC003A |
| Number Of Speeds | 1 |
| Overall Length | 15 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" , 2.062" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Full Load Amps | 3.2/1.6A |
| Hz | 60 |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Voltage | 230/460V AC |
| Weight | 85 lbs. |
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 49.05 |
| Ship width (cm) | 28.42 |
| Country of Origin | MX |
| Product | Model | Frame | Frame Material | Full Load Amps | Hazardous Location Class | HP | Hz | Lead Length | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17G15615 | 56C | Rolled Steel | 1.3 | 1 C,D / 2 F,G | 1 | 60 | 18" | 14 1/16" | €1,105.05 | |
 |
056T17G15601 | 56C | Rolled Steel | 4.6/2.3 | 1 C,D / 2 F,G | 1.5 | 60 | 18" | 14 1/16" | €1,543.37 | |
 |
143TTGN16539 | 143TC | Cast Iron | 3.3/1.6 | 1 D / 2 F,G | 1 | 50/60 | 12" | 13 1/16" | €1,058.75 | |
 |
145TTGN16036 | 143TC | Cast Iron | 4.6/2.3 | 1 D / 2 F,G | 1.5 | 50/60 | 12" | 13 1/16" | €1,122.96 |
