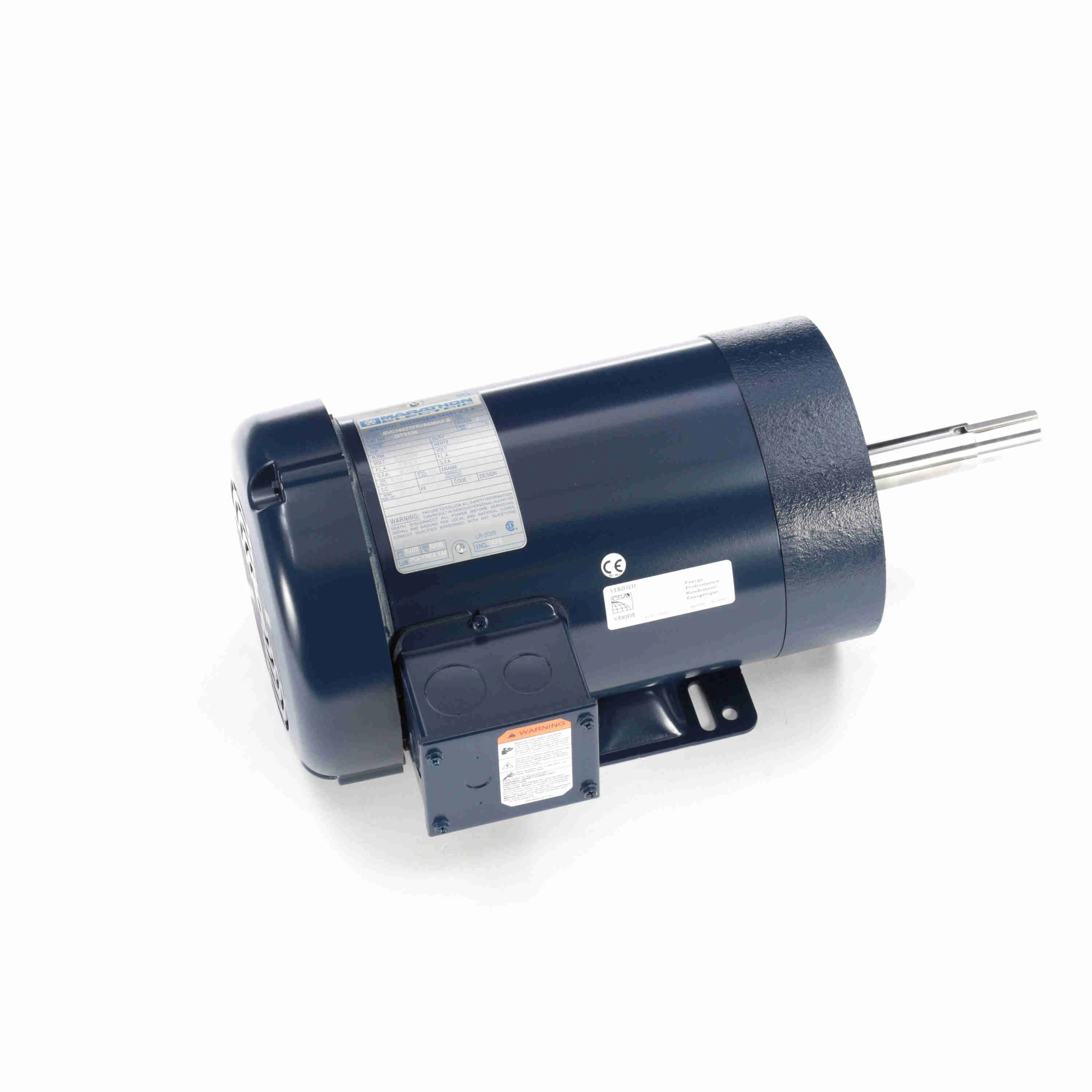

| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 7.286" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Frame | 145JM |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.6/2.3A |
| Full Load Efficiency | 86.5% |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |
| Ip Rating | IP43 |
| Length Less Shaft | 11.688" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Shaft Design | Keyed Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | No |
| Motor Type | Three Phase |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Overall Height | 7 1/4" |
| Overall Length | 15.938" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Height | 7 1/4" |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Standards | CE MARK, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 46 lbs. |
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 37.47 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.7 |
| HS code | 8501524000 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | kW | Mounting | NEMA Design | RPM | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143TTFR16010 | 143JMV | 4/2 | 1.5 | 1.12 | C-Face Rigid | B | 3600 | 230/460 | - | RFQ
|
 |
143TTFR16046 | 143JMV | 1.3 | 1 | 0.75 | C-Face Rigid | B | 1800 | 575 | €179.15 | |
 |
143TTFR16013 | 143JMV | 1.6 | 1.5 | 1.12 | C-Face Rigid | B | 3600 | 575 | €168.95 | |
 |
145TTFR16067 | 145JMV | 6.9 | 2 | 1.49 | C-Face Rigid | A | 1800 | 200 | €220.74 | |
 |
145TTFR16074 | 145JMV | 4.6/2.3 | 1.5 | 1.12 | C-Face Footless | B | 1800 | 230/460 | €955.04 | |
 |
145TTFR16071 | 145JMV | 2.4 | 2 | 1.49 | C-Face Rigid | A | 1800 | 575 | €192.63 | |
 |
143TTFR16048 | 143JMV | 3.8 | 1 | 0.75 | C-Face Footless | B | 1800 | 200 | €181.76 | RFQ
|
