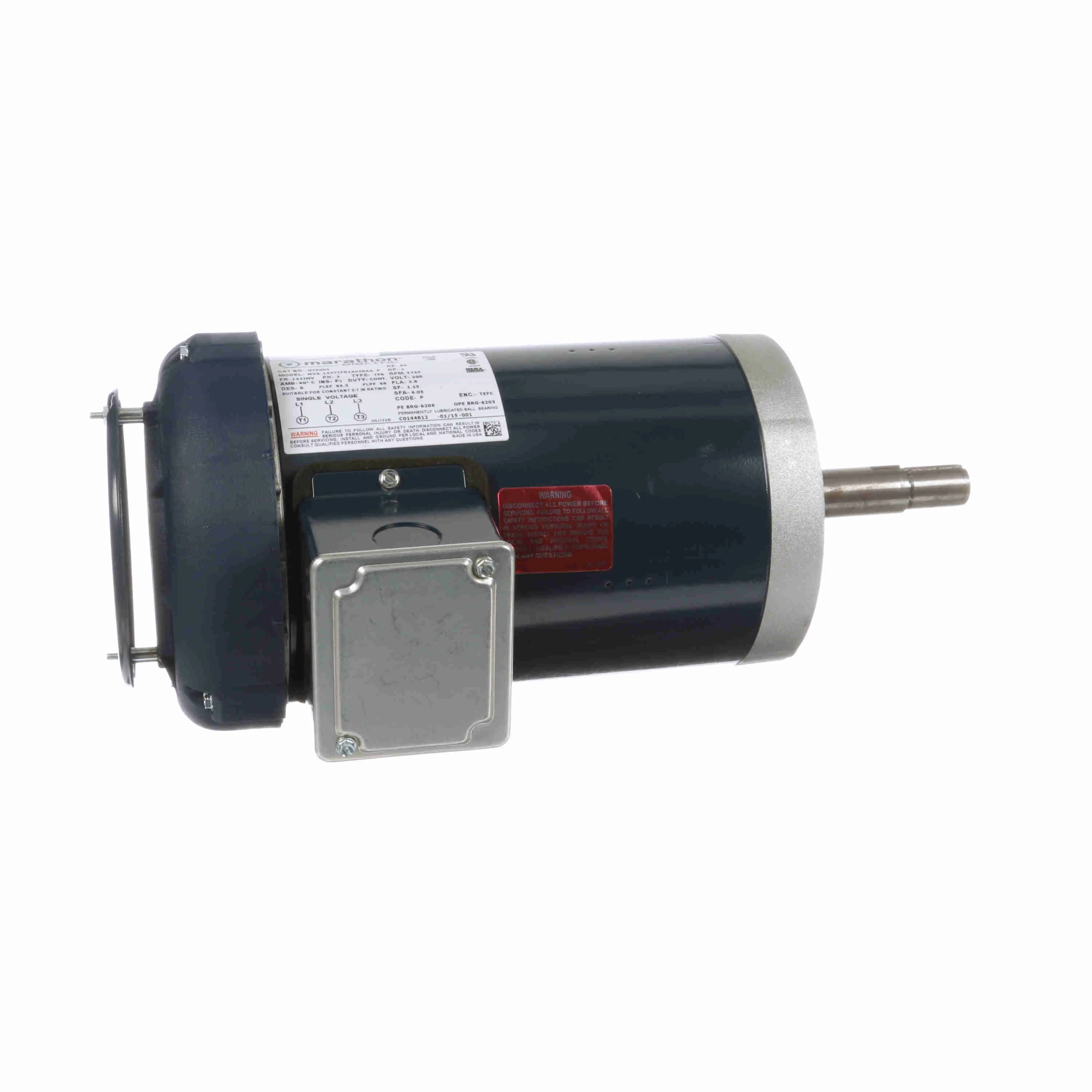

| Item | Close-Coupled Pump Motor |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Frame Type | 143JMV |
| Frequency | 60 Hz |
| Full Load Amps | 3.8A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal Shaft Down/Vertical Shaft Down |
| Motor Mounting Type | C Face, Footless |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| Orientation | Horizontal, Shaft Down |
| Phase | 3 |
| Power | 0.75 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Voltage | 200V AC |
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| HS code | 8501524000 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | kW | Mounting | NEMA Design | RPM | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143TTFR16010 | 143JMV | 4/2 | 1.5 | 1.12 | C-Face Rigid | B | 3600 | 230/460 | - | RFQ
|
 |
143TTFR16046 | 143JMV | 1.3 | 1 | 0.75 | C-Face Rigid | B | 1800 | 575 | €179.15 | |
 |
143TTFR16013 | 143JMV | 1.6 | 1.5 | 1.12 | C-Face Rigid | B | 3600 | 575 | €168.95 | |
 |
145TTFR16067 | 145JMV | 6.9 | 2 | 1.49 | C-Face Rigid | A | 1800 | 200 | €220.74 | |
 |
145TTFR16074 | 145JMV | 4.6/2.3 | 1.5 | 1.12 | C-Face Footless | B | 1800 | 230/460 | €955.04 | |
 |
145TTFR16071 | 145JMV | 2.4 | 2 | 1.49 | C-Face Rigid | A | 1800 | 575 | €192.63 | |
 |
143TTFR16047 | 143JMV | 3.8 | 1 | 0.75 | C-Face Rigid | B | 1800 | 200 | €183.45 |
