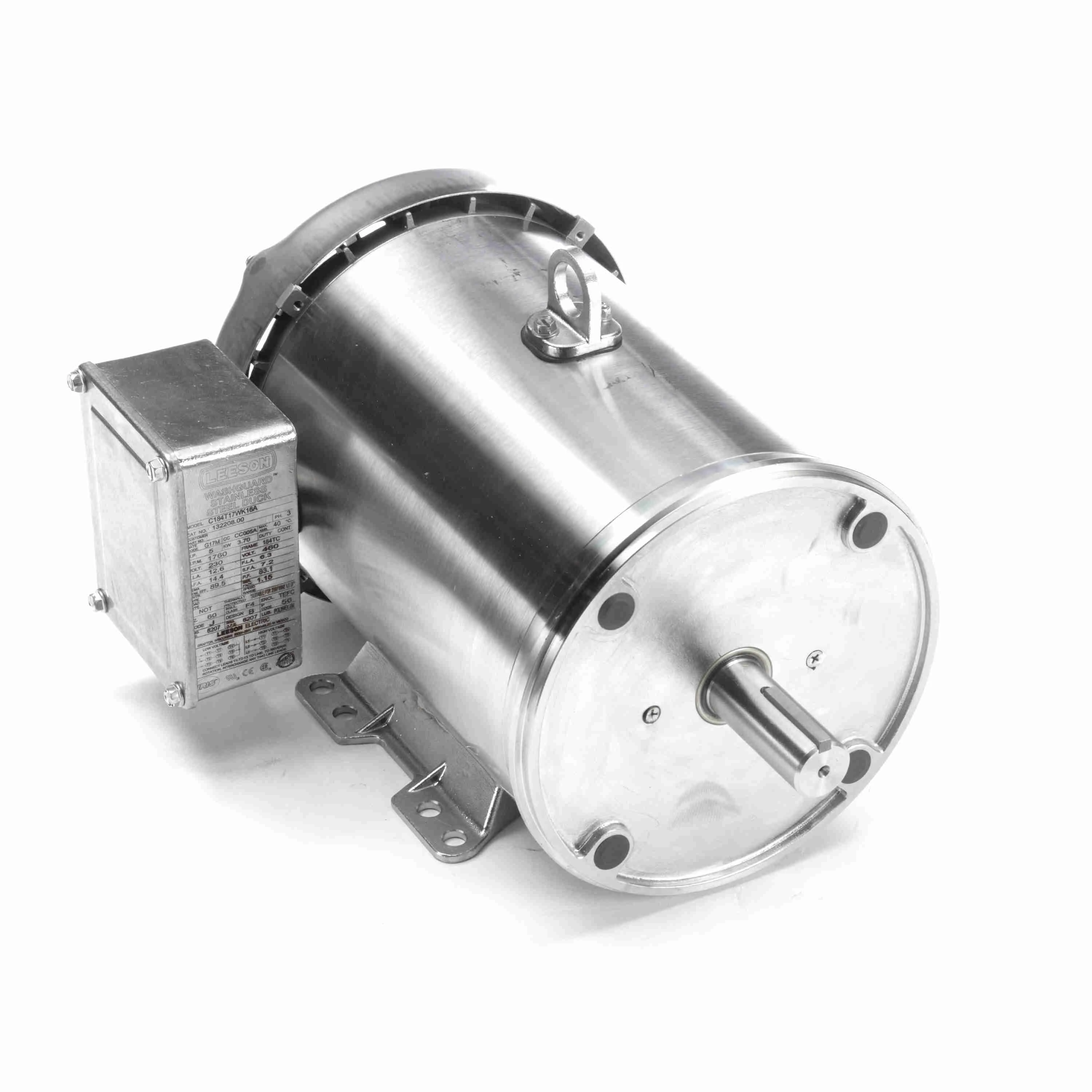

LEESON 132208.00 C184T17WK16A General Purpose Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Wednesday, Jun 18
€2,496.84 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 180-050 |
| Bearing Type | Ball |
| Body Dia. | 8.38" |
| Bolt Circle Dia. | 7 1/4" |
| Cc Number | CC005A |
| Code | J |
| Conduit Box Location | Exterior |
| Design | B |
| Duty Cycle | Continuous |
| Finish | Unfinished |
| Frame | 184TC |
| Frame Material | Stainless Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12.6/6.3A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Overall Length | 15 3/4" |
| Packaging | B |
| Phase | 3 |
| Power | 3.7 kW |
| Power Factor | 83.1 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 13 1/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1760 RPM |
| Product Type | Washdown Motor |
| Standards | BISSC APPROVED, CE, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 101 lbs. |
| Ship weight (kg) | 45.45 |
| Ship height (cm) | 34.14 |
| Ship length (cm) | 46.51 |
| Ship width (cm) | 34.29 |
| Country of Origin | MX |
| Product | Model | Assembly | Design | Enclosure | Frame | Full Load Amps | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103388 | - | B | TEFC | S56C | 2.5-2.4 / 1.2 | 3/4 | 50/60 | F | €1,506.64 | |
 |
117267 | 042541 | B | TENV | 56C | 2.4-2.3 / 1.15 | 3/4 / 1/2 | 50/60 | F | €1,427.03 | |
 |
117273 | 042541 | B | TENV | 56HC | 2.6 / 1.3 | 1 / 3/4 | 50/60 | F | €1,408.25 | |
 |
117275 | 042541 | B | TENV | 56HC | 2.35-2.3 / 1.15 | 1/2 / 1/3 | 50/60 | F | €1,717.18 | |
 |
119491 | 042542 | B | TEFC | 56C | 3.2-3.2 / 1.6 | 1 | 50/60 | F | €1,623.26 | |
 |
119492 | 042542 | B | TEFC | 56HC | 3.8-3.8 / 1.9 | 1 / 3/4 | 50/60 | F | €1,800.71 | |
 |
119494 | 042542 | B | TEFC | 56HC | 4.8 / 2.4 | 1 1/2 / 1 | 50/60 | F | €1,689.14 |
