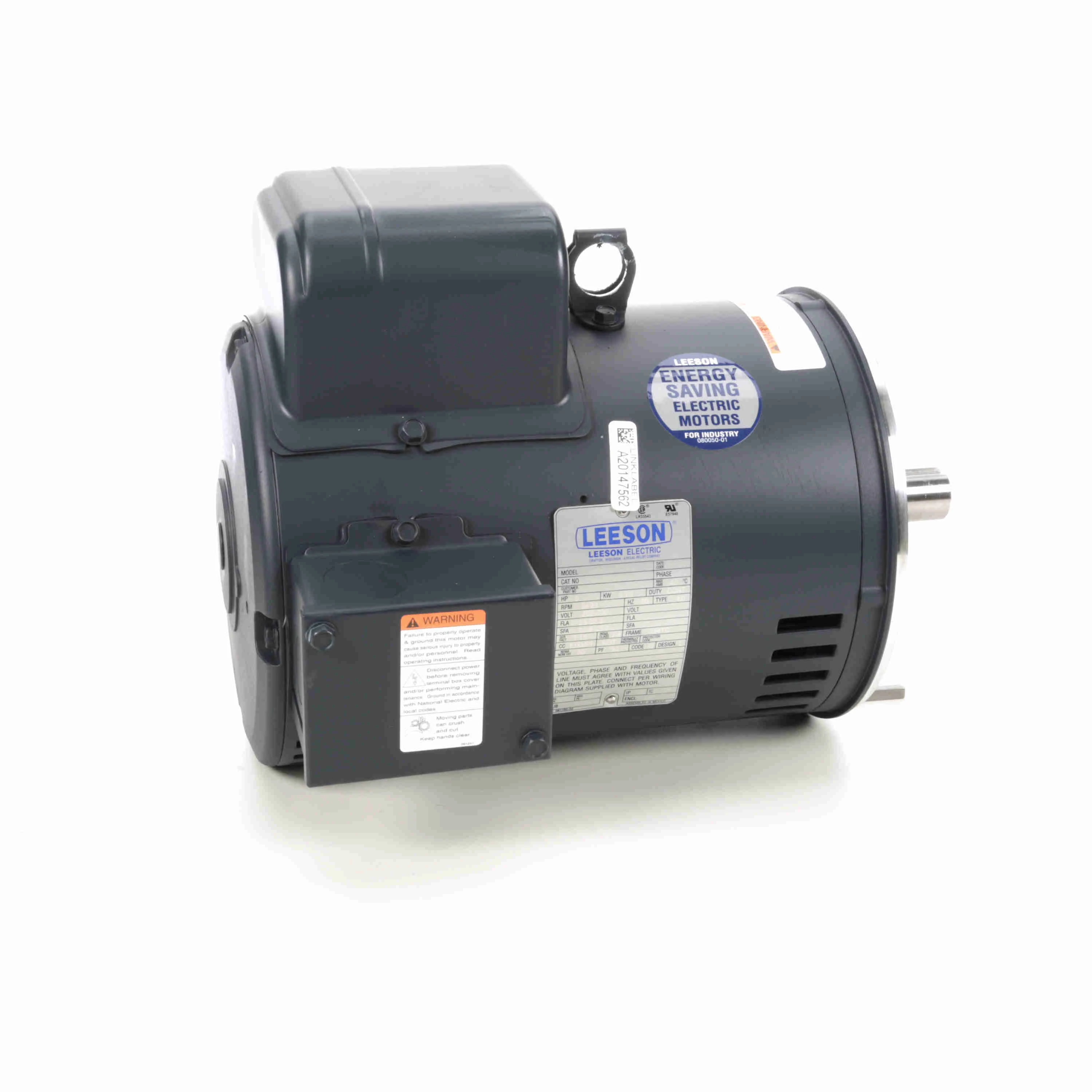

LEESON 131777.00 C184K34DC2A General Purpose Motor, 5 HP, 1 Phase, 60 Hz, 208-230V, 3600 RPM
Get it by Wednesday, Jun 18
€1,151.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Code | G |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 184TC |
| Frequency | 60 Hz |
| Full Load Amps | 22.2-23A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3600 RPM |
| Nema Design | G, L |
| Output Kw | 3.7 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 92 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Type | KD |
| Voltage | 208-230V AC |
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Insulation Class | kW | Lubrication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131539 | 180-014 | L | 184TC | 23-21 | 5 | F | 3.7 | Polyrex EM | €1,224.50 | |
 |
131544 | 180-014 | L | 184TC | 33.8 / 16.9 | 3 | F | 2.24 | Polyrex EM | €878.23 | |
 |
E100025.00 | - | N | S56C | 4.6 / 2.3 | 1/2 | B | 0.37 | VERIFY | €544.22 |
