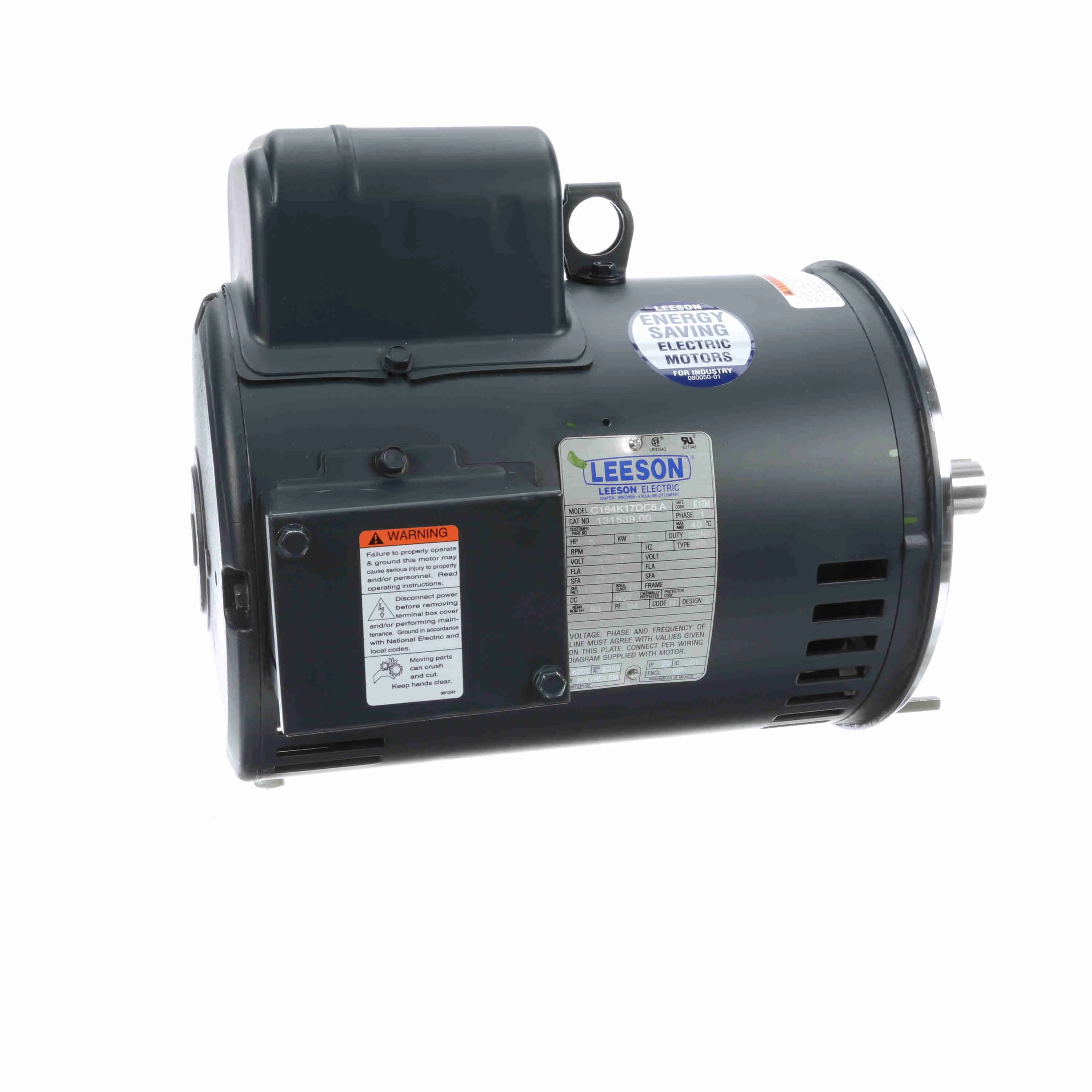

| Item | Single Phase Motor |
| Assembly | 180-014 |
| Code | H |
| Design | L |
| Duty | Continuous |
| Enclosure | DP |
| Frame | 184TC |
| Full Load Amps | 23-21 |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| kW | 3.7 |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40 |
| Mounting | Round |
| Packaging | B |
| Phase | 1 |
| Power Factor | 94 |
| Rotation | SELECTIVE CCW |
| RPM | 1800 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Type | KD |
| Voltage | 208-230 |
| Ship weight (kg) | 37.8 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Product | Model | Type | Lubrication | Assembly | Frame | Full Load Amps | HP | Insulation Class | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131544.00 | CD | Polyrex EM | 180-014 | 184TC | 33.8 / 16.9 | 3 | F | 2.24 | €931.46 | |
 |
131777.00 | KD | Polyrex EM | 180-016 | 184TC | 23-22.2 | 5 | F | 3.7 | €1,221.59 | |
 |
E100025.00 | KD | VERIFY | - | S56C | 4.6 / 2.3 | 1/2 | B | 0.37 | €577.20 |
