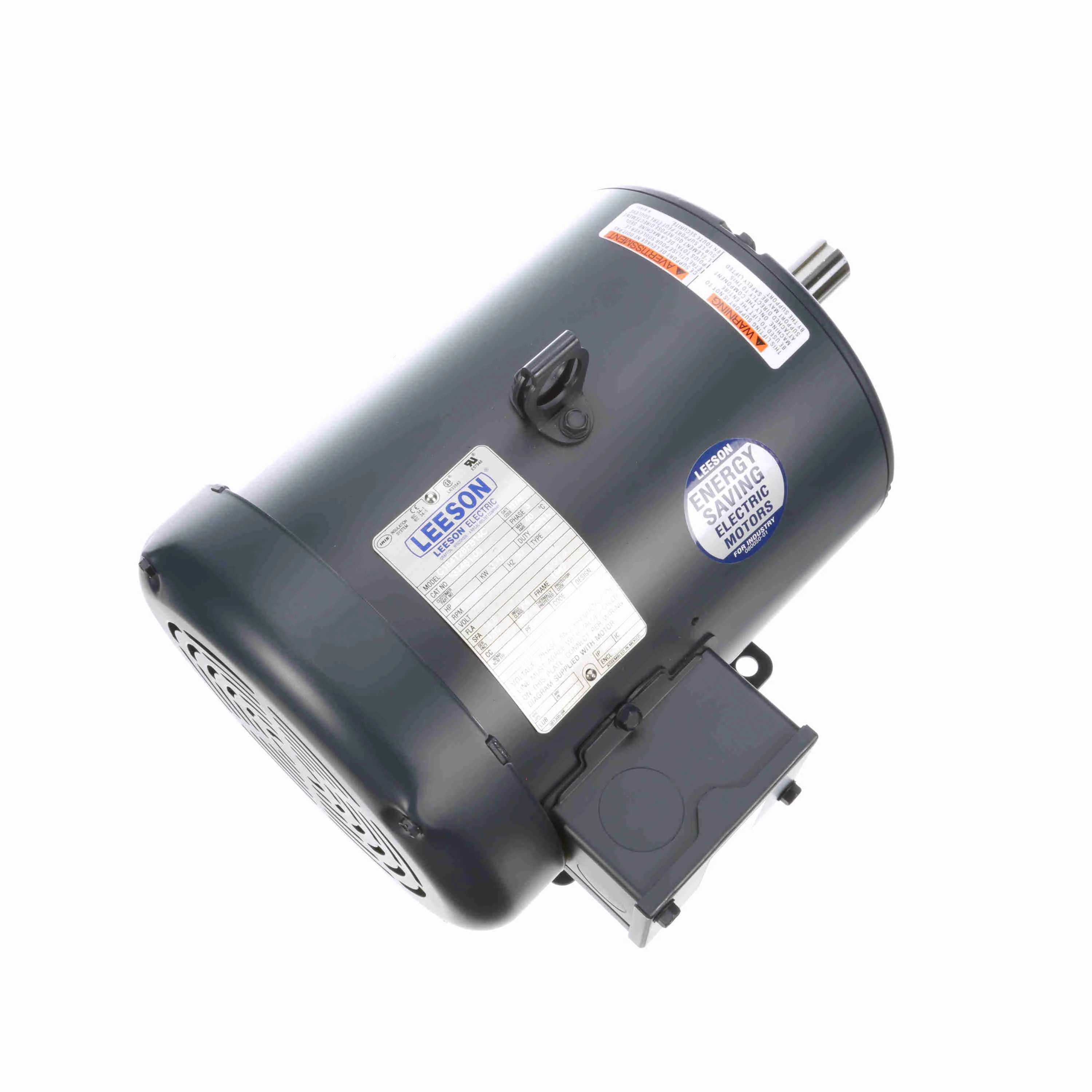

LEESON 131481.00 C184T28FB14C Special Voltage Motor, 5 HP, 3 Phase, 50 Hz, 220/380/440V, 3000 RPM
Get it by Tuesday, Jun 17
€1,095.92 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | 50 Hz Motor |
| Application | General Application |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 184T |
| Frame Material | Steel |
| Frequency | 50 Hz |
| Full Load Amps | 12.8/7.4/6.4A |
| Full Load Efficiency | 84% |
| Hp | 5 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 2850 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Length | 14 7/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | None |
| Type | Three Phase |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 220/380/440V AC |
| Full Load Amps @ 50hz | 12.8/7.4/6.4A |
| Hp @ 50hz | 5 hp |
| Hz | 50 |
| Ins. Class | Class F |
| Length Less Shaft | 11 3/4" |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 84% |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Weight | 79 lbs. |
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| HS code | 8501524000 |
| Country of Origin | MX |
