LEESON 114888.00 50 Hz Motor 3-phase 1 Hp 1425 220/380-440v 56 | AD7WGT 4GUT8 / C6T14FB8B

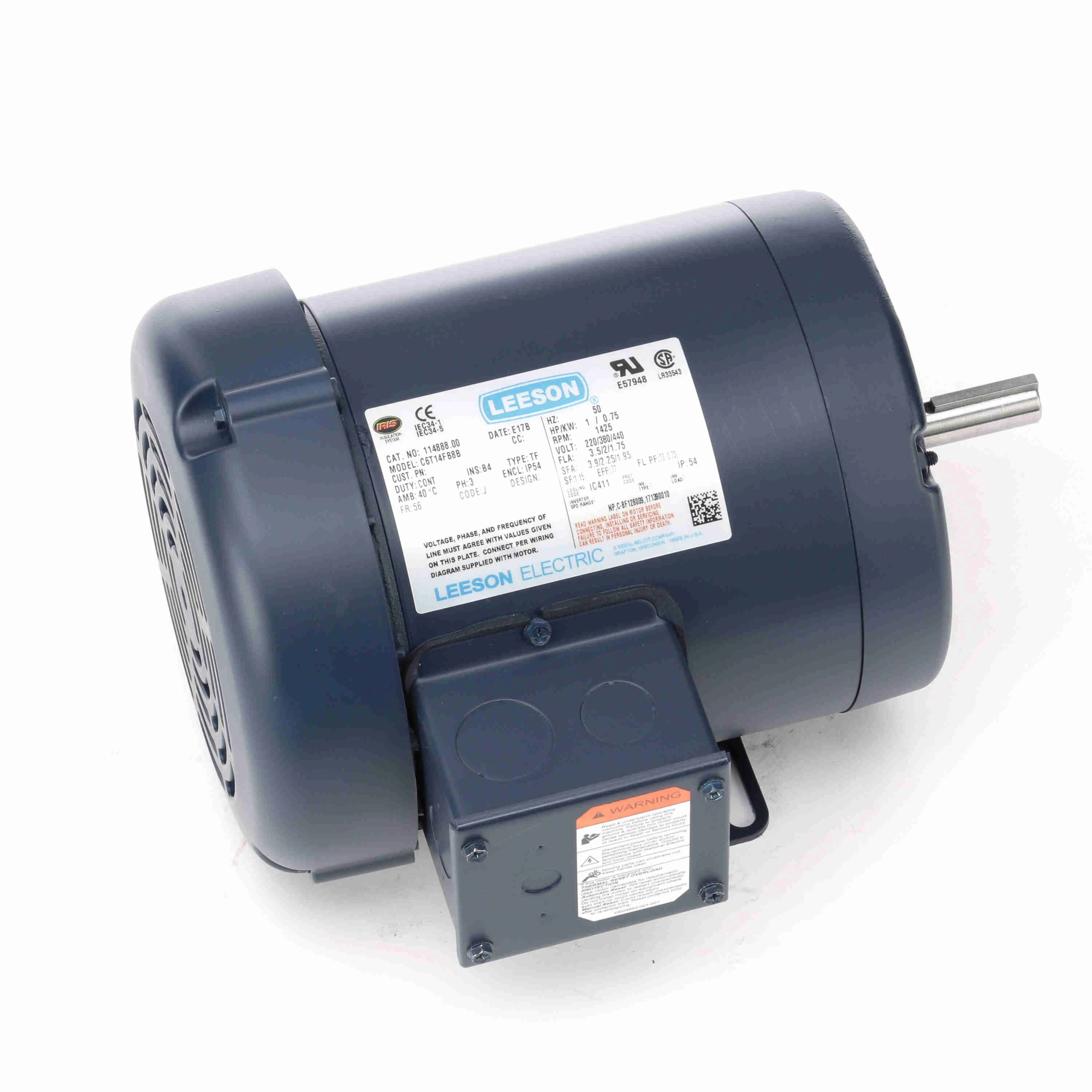

LEESON 114888.00 C6T14FB8B Special Voltage Motor, 1 HP, 3 Phase, 50 Hz, 220/380/440V, 1500 RPM

Item: AD7WGTModel: 114888.00Cross Ref: 4GUT8 / C6T14FB8B
See variants (3)
In Stock

Get it by Monday, Jun 16

€697.19 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item50 Hz Motor
ApplicationGeneral Application
Bearing TypeBall
Duty CycleContinuous
Frame56
Frame MaterialSteel
Frequency50 Hz
Full Load Amps3.5/2/1.75A
Full Load Efficiency77%
Hp1 hp
Insulation ClassClass B
Max. Ambient Temp.40°C
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationClockwise/Counter Clockwise
Mounting TypeRigid Base
Nameplate Rpm1425 RPM
Nema DesignB
No. Of Speeds1
Overall Length11"
Phase3
Service Factor1.15
Shaft Dia.5/8"
Shaft Length1 7/8"
Thermal ProtectionNone
TypeThree Phase
Usable @ 200vNo
Usable @ 208vNo
Voltage220/380/440V AC
Full Load Amps @ 50hz3.5/2/1.75A
Hp @ 50hz1 hp
Hz50
Ins. ClassClass B
Length Less Shaft9 3/16"
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Frame MaterialSteel
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Thermal ProtectionNone
Nominal Efficiency77%
StandardsCE CERTIFIED, CSA CERTIFIED, UL LISTED
Weight31 lbs.

Shipping Info:

Ship weight (kg) 13.95
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
HS code8501515040
Country of OriginUS

Product Details:

Leeson 114888.00 50 TEFC motor is ideal for fans, blowers, conveyors, pumps and compressors.

Features:

  • This 50Hz motor features frames made of steel for resisting corrosion on exposed surfaces.
  • It is equipped with ball bearings for low rotational friction while running at a maximum speed of 1425 rpm.
  • This TEFC motor does not need run capacitors, starting capacitors or centrifugal starting switches that can fail or wear out.
  • It can be operated at a maximum ambient temperature of 40 degrees C.
  • Leeson 114888.00 50 TEFC motor allows horizontal mounting for easy and secure installation.
  • It delivers an efficiency of 77% at full load conditions.

Standards and Approvals:

  • CE
  • CSA
  • UL

Frequently Asked Questions:

Q. What is the advantage of Polyrex EM grease used in Leeson 114888.00 TEFC motor?

A. This grease provides high-temperature lubrication of ball bearings, thereby extending the motor's life.

Q. Which type of starter is used in this motor?

A. An across the line starter is used to start this 50Hz motor and keep it protected from over-ramping.

Product Variants

ProductModelFrameFull Load AmpsHPInsulation ClassLength Less ShaftNameplate RPMOverall LengthRPM RangePrice
LEESON 114307.00 50 Hz Motor 3-phase 3/4hp 1425 220/380-440 56 | AD7WGQ 4GUT6 / C6T14FB7D 114307563.2/1.85/1.63/4B9.187"142511 1/16"1401-1500€687.40
LEESON 131459.00 50 Hz Motor 3-phase 3hp 1425 220/380-440 182t | AD7WHA 4GUU6 / C182T14FB5C 131459182T8.2/4.7/4.13F10.75"142513.5"1401-1500€891.95
LEESON 131481.00 50 Hz Motor 3-phase 5hp 2850 220/380-440 184t | AD7WHB 4GUU7 / C184T28FB14C 131481184T12.8/7.4/6.45F11.75"285014.5"1801-3000€1,095.92
