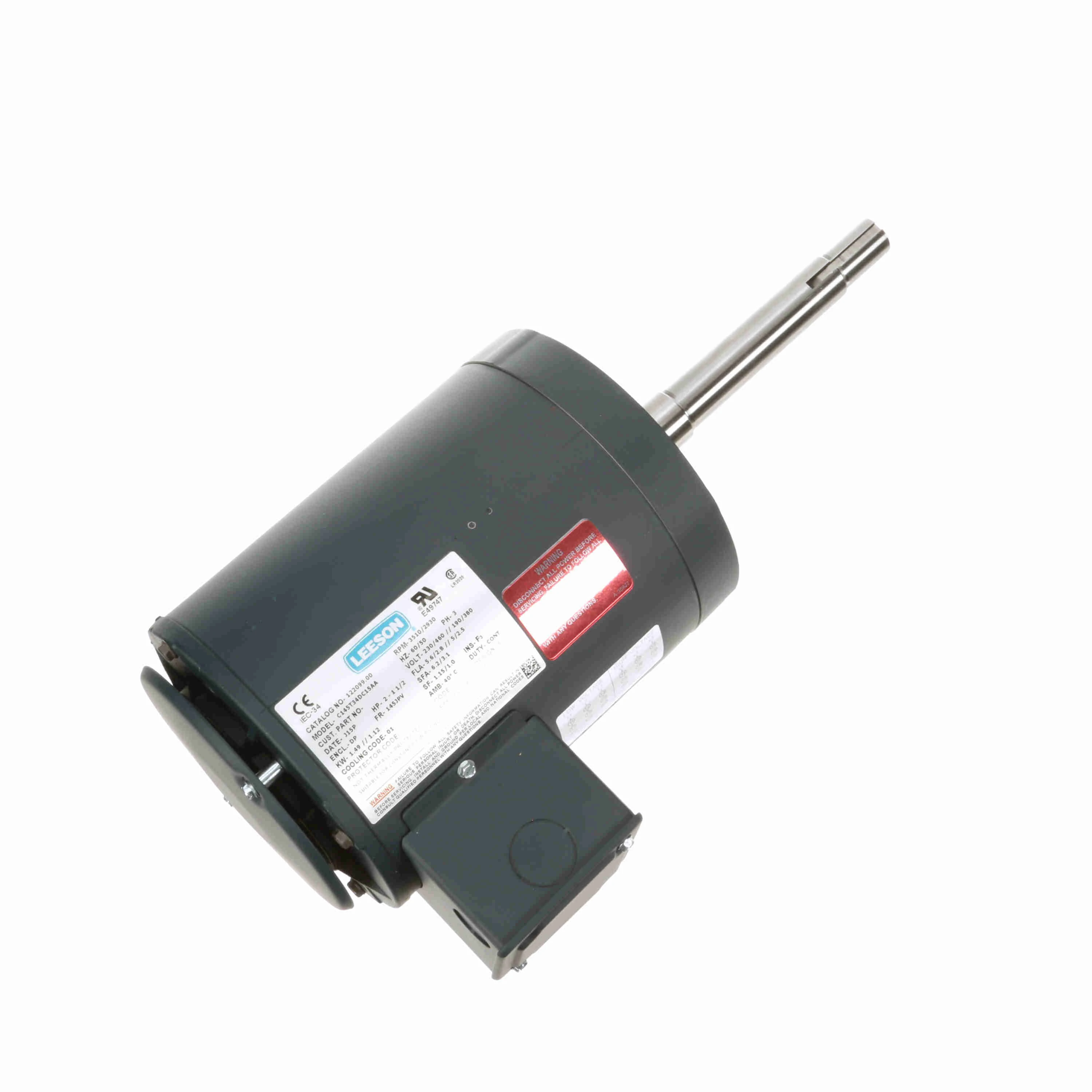

LEESON 122099.00 C145T34DC15AA Close Coupled Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Wednesday, Jun 18
€209.29 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Pump Motor |
| Ambient Temp. | 40°C |
| Code | L |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 145JPV |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.6/2.8A |
| Hp | 2 hp, 1 1/2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3600/3000 RPM |
| Nema Design | B, L |
| Output Kw | 1.49/1.12 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 78.5, 78 |
| Service Factor | 1, 1.15 |
| Shaft Dia. | 1" |
| Shaft Length | 7.333" |
| Type | TD |
| Voltage | 230/460V AC |
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | kW | Mounting | Power Factor | RPM | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
122094 | 143JPV | 3 / 1.5 | 1 / 3/4 | .75 / .56 | Round | 71 / 69.3 | 1800 / 1500 | 1.15 / 1.0 | €249.20 | |
 |
122095 | 143JP | 3.8 / 1.9 | 1 1/2 / 1 | 1.12 / .75 | Rigid | 84 / 80.5 | 3600 / 3000 | 1.0 / 1.15 | €661.57 | |
 |
122096 | 143JPV | 3.8 / 1.9 | 1 1/2 / 1 | 1.12 / .75 | Round | 84 / 80.5 | 3600 / 3000 | 1.15 / 1.0 | €239.74 | |
 |
122101 | 145JPV | 6 / 3 | 2 / 1 1/2 | 1.49 / 1.12 | Round | 74.5 / 72 | 1800 / 1500 | 1.15 / 1.0 | €262.14 | |
 |
122103 | 145JPV | 7.6 / 3.8 | 3 / 2 | 2.24 / 1.49 | Round | 83.5 / 81 | 3600 / 3000 | 1.15 / 1.0 | €202.30 |
