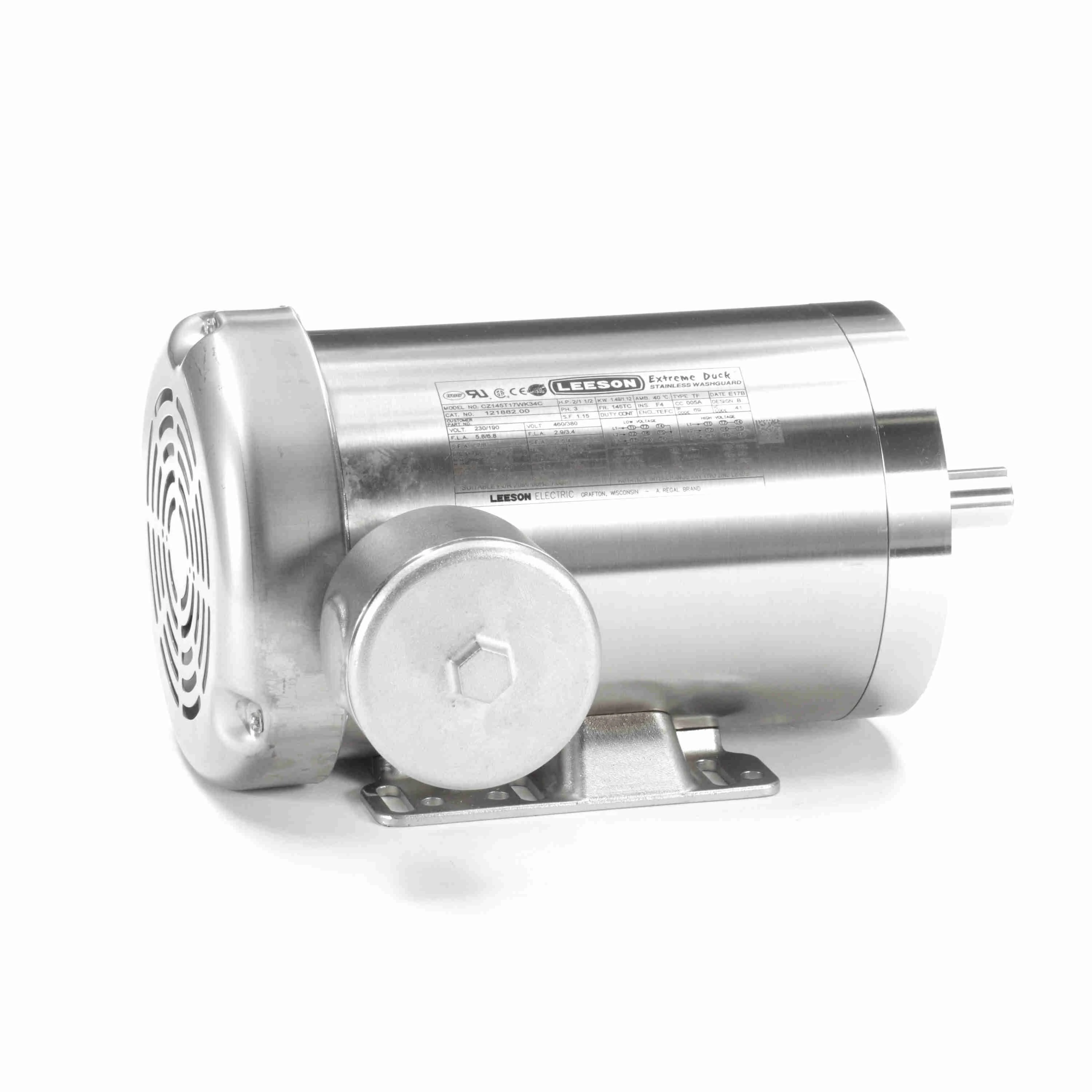

| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 14/25" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Conduit Box | Oversized Stainless Steel Sidebox And Threaded Cover With O-Ring |
| Conduit Box Location | Exterior |
| Drain Plug | None |
| Duty Cycle | Continuous |
| Endshield Material | Stainless Steel |
| Finish | Paint Free |
| Frame | 145TC |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Hp | 2 hp |
| Includes | Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 13 1/4" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Grade | Grade 303 |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Drain Plugs | None |
| Full Load Amps | 2A |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 11 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Product Type | Washdown Motor |
| Standards | BISSC APPROVED, CE, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 64 lbs. |
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| HS code | 8501524000 |
| Country of Origin | US |
| Product | Model | Body Dia. | Conduit Box | Enclosure | Frame | Full Load Amps | HP | kW | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117119 | 6-9/16" | Oversized Stainless Steel BICB and Threaded Cover with O Ring | Totally Enclosed Nonventilated | 56C | 1.7-1.6/0.8 | 1/2 | - | 8.875" | €1,539.49 | |
 |
117121 | 6-9/16" | Oversized Stainless Steel BICB and Threaded Cover with O Ring | Totally Enclosed Nonventilated | 56C | 2.4-2.3/1.15 | 3/4 | - | 9.375" | €1,577.42 | |
 |
117122 | 6-9/16" | Oversized Stainless Steel BICB and Threaded Cover with O Ring | Totally Enclosed Nonventilated | 56C | 2.8-2.6/1.3 | 1 | - | 9.125" | €1,611.15 | |
 |
121880 | 6.625" | Oversized Stainless Steel Sidebox and Threaded Cover with O-Ring | Totally Enclosed Fan-Cooled | 143TC | 4.6-4.8/2.4 | 1.5 | - | 10.625" | €1,751.66 | |
 |
121881 | 6.625" | Oversized Stainless Steel Sidebox and Threaded Cover with O-Ring | Totally Enclosed Fan-Cooled | 145TC | 5.2-4.8/2.4 | 2 | - | 10.625" | €1,938.18 | |
 |
103412 | - | - | TEFC | S56C | 2.5-2.4 / 1.2 | 3/4 | .56 | - | €1,690.78 | |
 |
119522 | - | - | TEFC | 56C | 4.8 / 2.4 | 1 1/2 / 1 | 1.12 / .75 | - | €1,742.26 |
