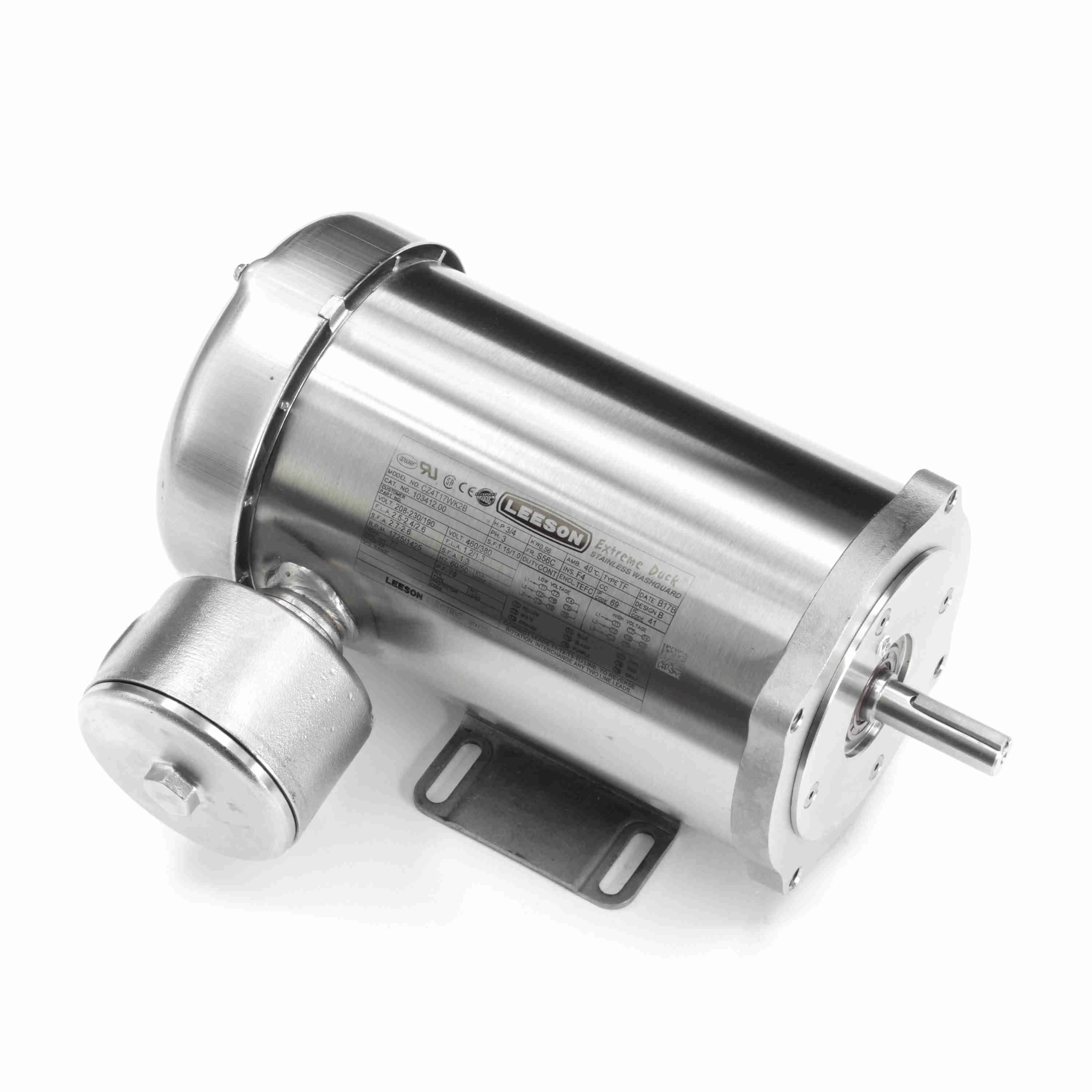

LEESON 103412.00 CZ4T17UK1C General Purpose Motor, 0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€1,690.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Code | K |
| Duty Cycle | Continuous |
| Finish | Paint Free |
| Frame | S56C |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.5-2.4/1.2A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725/1425 RPM |
| Nema Design | B |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 79 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Type | TF |
| Voltage | 208-230/460V AC |
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Body Dia. | Conduit Box | Enclosure | Frame | Full Load Amps | HP | kW | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117119 | 6-9/16" | Oversized Stainless Steel BICB and Threaded Cover with O Ring | Totally Enclosed Nonventilated | 56C | 1.7-1.6/0.8 | 1/2 | - | 8.875" | €1,539.49 | |
 |
117121 | 6-9/16" | Oversized Stainless Steel BICB and Threaded Cover with O Ring | Totally Enclosed Nonventilated | 56C | 2.4-2.3/1.15 | 3/4 | - | 9.375" | €1,577.42 | |
 |
117122 | 6-9/16" | Oversized Stainless Steel BICB and Threaded Cover with O Ring | Totally Enclosed Nonventilated | 56C | 2.8-2.6/1.3 | 1 | - | 9.125" | €1,611.15 | |
 |
121880 | 6.625" | Oversized Stainless Steel Sidebox and Threaded Cover with O-Ring | Totally Enclosed Fan-Cooled | 143TC | 4.6-4.8/2.4 | 1.5 | - | 10.625" | €1,751.66 | |
 |
121881 | 6.625" | Oversized Stainless Steel Sidebox and Threaded Cover with O-Ring | Totally Enclosed Fan-Cooled | 145TC | 5.2-4.8/2.4 | 2 | - | 10.625" | €1,938.18 | |
 |
121882 | 6.625" | Oversized Stainless Steel Sidebox and Threaded Cover with O-Ring | Totally Enclosed Fan-Cooled | 145TC | 6.0-5.8/2.9 | 2 | - | 11.125" | €1,956.52 | |
 |
119522 | - | - | TEFC | 56C | 4.8 / 2.4 | 1 1/2 / 1 | 1.12 / .75 | - | €1,742.26 |
