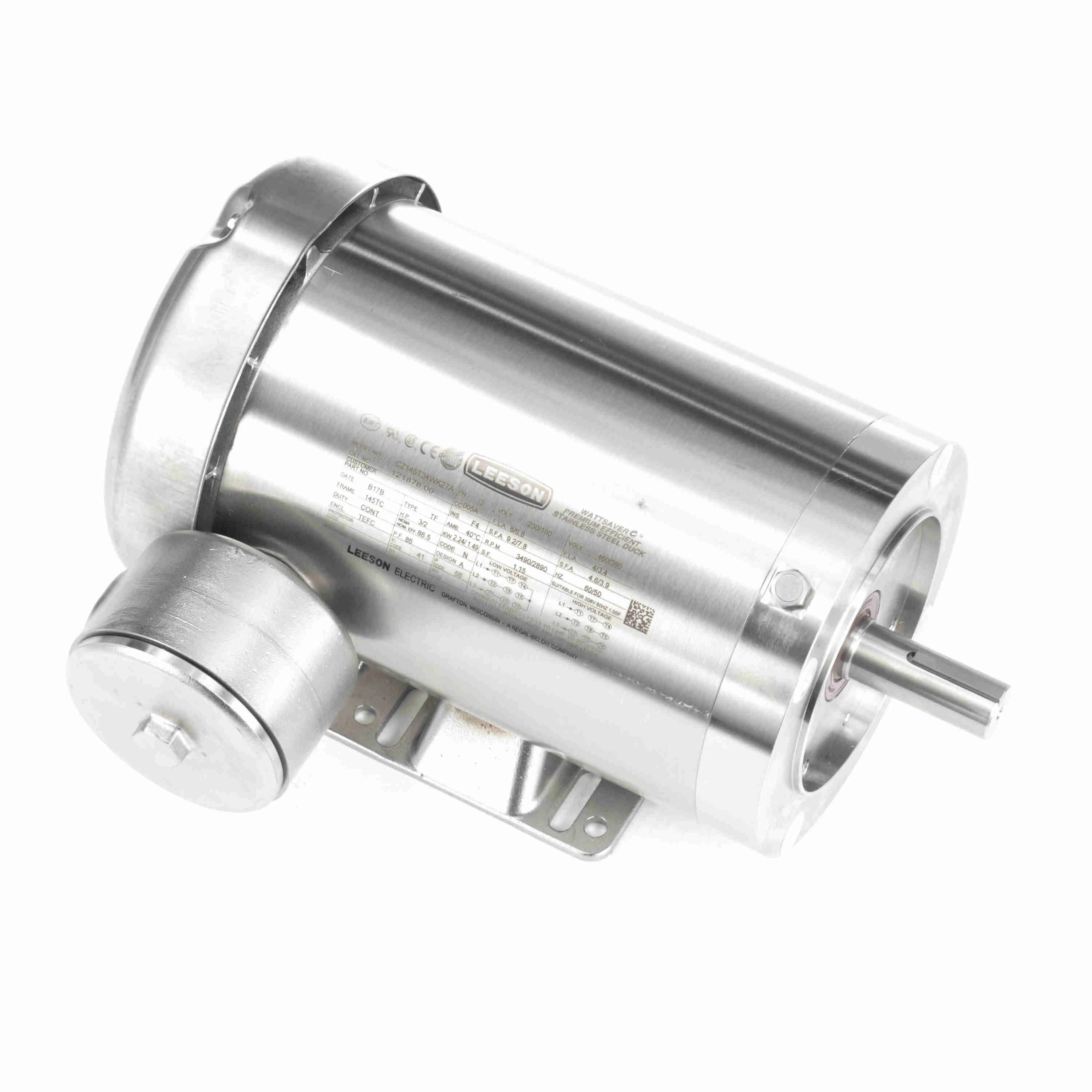

LEESON 121878.00 CZ145T34WK27A General Purpose Motor, 3/2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Tuesday, Jun 17
€2,291.23 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Code | N |
| Design | A |
| Duty Cycle | Continuous |
| Finish | Unfinished |
| Frame | 145TC |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 8/4A |
| Grease Type | Polyrex EM |
| Hp | 3 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600/3000 RPM |
| Packaging | B |
| Phase | 3 |
| Power | 2.2 kW |
| Power Factor | 86 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Type | TF |
| Voltage | 230/460V AC |
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Enclosure | Frame | Full Load Amps | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103388 | - | B | TEFC | S56C | 2.5-2.4 / 1.2 | 3/4 | 50/60 | F | €1,506.64 | |
 |
117267 | 042541 | B | TENV | 56C | 2.4-2.3 / 1.15 | 3/4 / 1/2 | 50/60 | F | €1,427.03 | |
 |
117273 | 042541 | B | TENV | 56HC | 2.6 / 1.3 | 1 / 3/4 | 50/60 | F | €1,408.25 | |
 |
117275 | 042541 | B | TENV | 56HC | 2.35-2.3 / 1.15 | 1/2 / 1/3 | 50/60 | F | €1,717.18 | |
 |
119491 | 042542 | B | TEFC | 56C | 3.2-3.2 / 1.6 | 1 | 50/60 | F | €1,623.26 | |
 |
119492 | 042542 | B | TEFC | 56HC | 3.8-3.8 / 1.9 | 1 / 3/4 | 50/60 | F | €1,800.71 | |
 |
119494 | 042542 | B | TEFC | 56HC | 4.8 / 2.4 | 1 1/2 / 1 | 50/60 | F | €1,689.14 |
