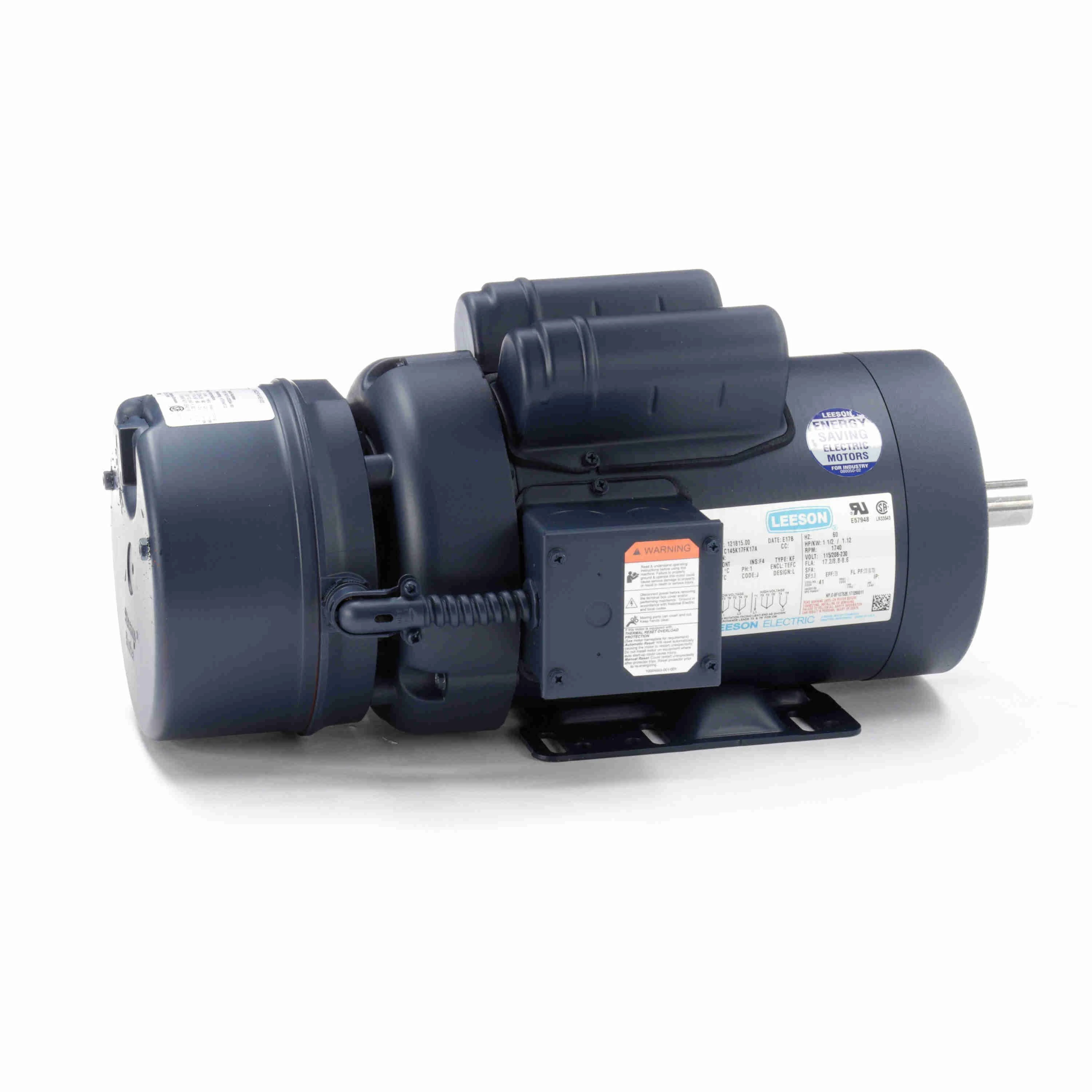

LEESON 121815.00 C145K17FK17A Brake Motor, 1.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
€1,691.12 /unit
Request a Quote
Payment
Payment
| Item | Brake Motor |
| Break-down Torque | 10.8 lbs.-ft. |
| Code | J |
| Design | J, L |
| Duty Cycle | Continuous |
| Frame | 145TC |
| Full Load Amps | 17.2/8.8-8.6A |
| Grease Type | Polyrex EM |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Output Kw | 1.12 kW |
| Packaging | B |
| Phase | 1 |
| Power | 1.12 kW |
| Power Factor | 73 |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Type | KF |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 18 |
| Ship height (cm) | 22.4 |
| Ship length (cm) | 46.3 |
| Ship width (cm) | 21.95 |
| Country of Origin | US |
| Product | Model | Design | Enclosure | Frame | Full Load Amps | HP | Insulation Class | kW | Lubrication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
111951 | N | TEFC | 56C | 10.6 / 5.3 | 1 | B | 0.75 | Polyrex EM | €1,545.67 | |
 |
114165 | L | TENV | 56C | 5.8 / 2.9-2.9 | 1/3 | B | .246 | Polyrex EM | €1,062.50 | |
 |
114167 | N | TEFC | 56C | 10.8 / 5.4 | 3/4 | B | 0.56 | Polyrex EM | €1,509.62 | |
 |
121816 | L | TEFC | 145TC | 18.4 / 9.2 | 2 | F | 1.49 | VERIFY | €1,733.18 | |
 |
111950 | N | TEFC | 56C | 8.8 / 4.4 | 1/2 | B | 0.37 | Polyrex EM | €1,109.63 |
