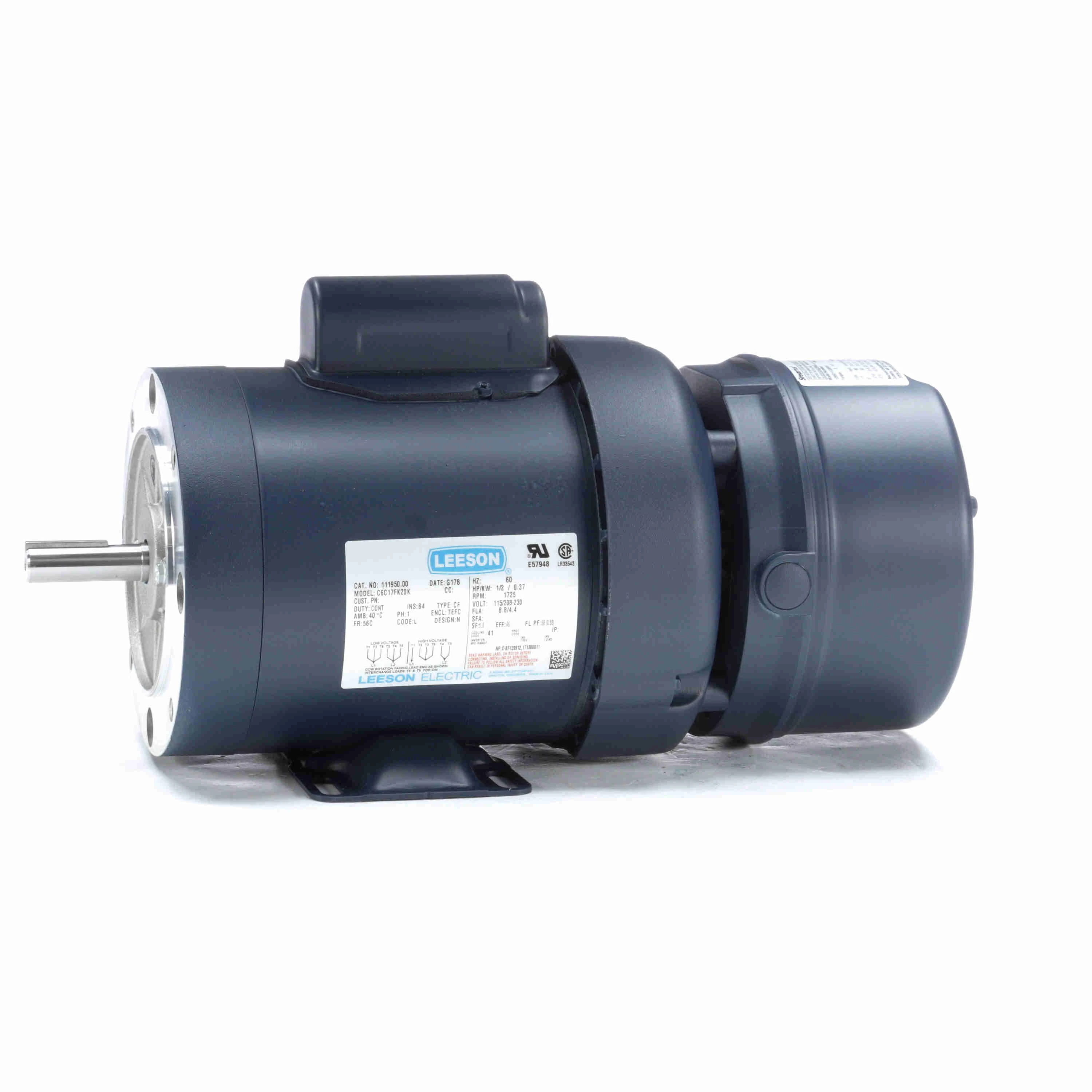

LEESON 111950.00 C6C17FK20K Brake Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Monday, Jun 16
€1,109.63 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Brake Motor |
| Application | Brake Motor |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Break-down Torque | 67.3 lbs.-ft. |
| Code | L |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | L, N |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.36A |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Includes | Key |
| Insulation Class | Class B |
| Inverter Rated | No |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Output Kw | 0.37 kW |
| Overall Length | 15 11/16" |
| Packaging | B |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 58 |
| Rpm Range | 1701-1800 RPM |
| Series | Series 56000 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Brake Model/series | Series 56000 |
| Brake Rating | 3 lbs.-ft. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 13 7/8" |
| Manufacturers Warranty Length | 18 Months |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Manual |
| Standards | CSA, UL RECOGNIZED |
| Weight | 32 lbs. |
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 57.91 |
| Ship width (cm) | 26.82 |
| Country of Origin | US |
| Product | Model | Design | Enclosure | Frame | Full Load Amps | HP | Insulation Class | kW | Lubrication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
111951 | N | TEFC | 56C | 10.6 / 5.3 | 1 | B | 0.75 | Polyrex EM | €1,545.67 | |
 |
114165 | L | TENV | 56C | 5.8 / 2.9-2.9 | 1/3 | B | .246 | Polyrex EM | €1,062.50 | |
 |
114167 | N | TEFC | 56C | 10.8 / 5.4 | 3/4 | B | 0.56 | Polyrex EM | €1,509.62 | |
 |
121815 | L | TEFC | 145TC | 17.2 / 8.8-8.6 | 1.5 | F | 1.12 | Polyrex EM | €1,691.12 | RFQ
|
 |
121816 | L | TEFC | 145TC | 18.4 / 9.2 | 2 | F | 1.49 | VERIFY | €1,733.18 |
