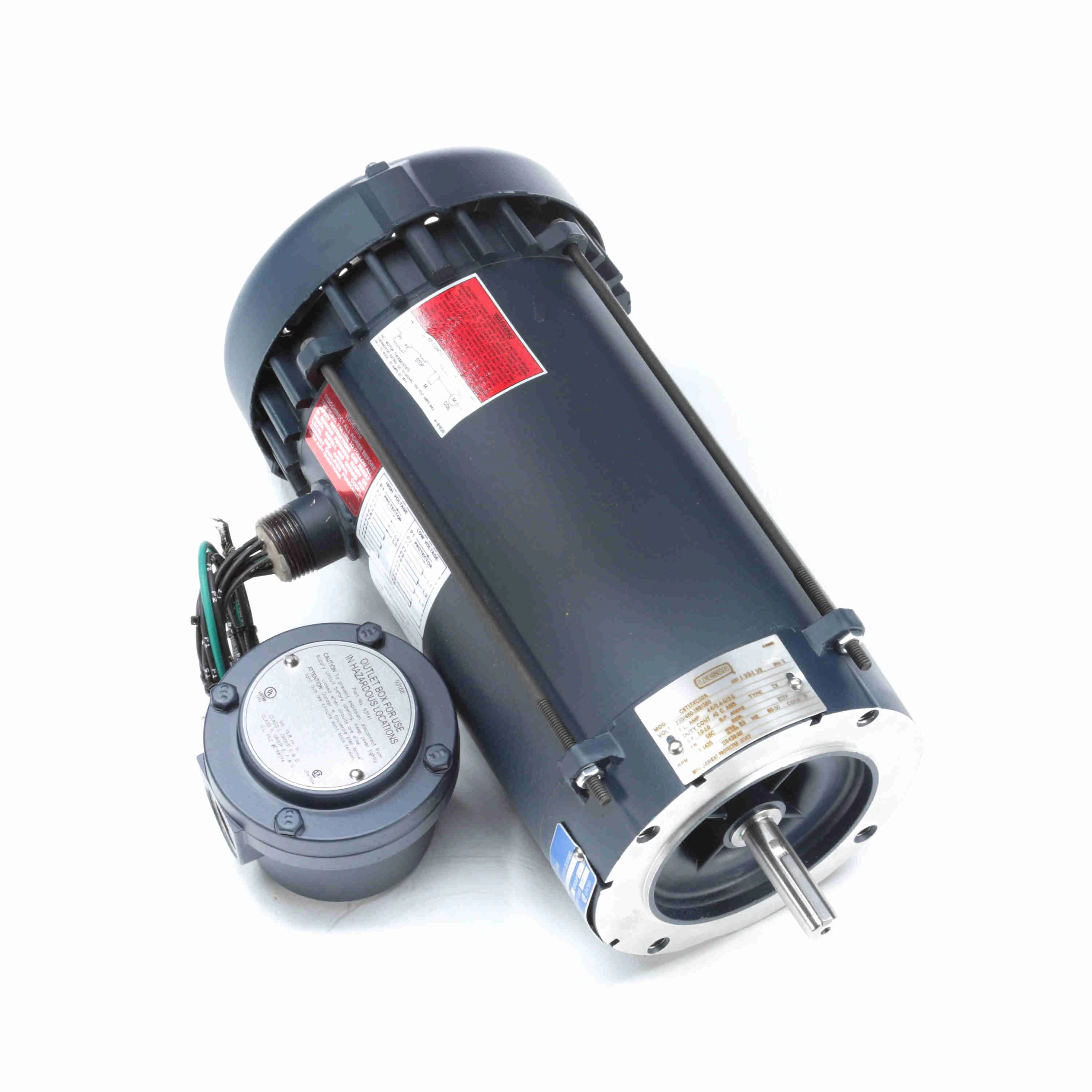

LEESON 119430.00 C6T17XC50A / 6T17XC50A Explosion Proof Motor, 1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Monday, Jun 16
€1,348.28 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Code | P |
| Design | B |
| Duty Cycle | Continuous |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frequency | 50/60 Hz |
| Full Load Amps | 4.8/2.4A |
| Hazardous Location Class | EXP Proof CL I GR C&D CL II GR F&G T3C |
| Hp | 1 1/2 hp |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Reversible |
| Mounting Type | Round |
| Nameplate Rpm | 1800/1500 RPM |
| Output Rating | 1.12 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 71, 77.5 |
| Service Factor | 1 |
| Thermal Protection | Thermostat |
| Type | TX |
| Voltage | 230/460V AC |
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| Country of Origin | MX |
| Product | Model | Design | Enclosure | Frame | Full Load Amps | HP | kW | Motor Thermal Protection | Packaging | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
111933 | B | EPNV | 56C | 1.6-1.6 / .8 | 1/2 / 1/3 | 0.37 / 0.25 | MWJ71KX | B | €1,036.57 | |
 |
111936 | B | EPFC | 56C | 3-3.2 / 1.6 | 3/4 / 1/2 | 0.56 / 0.37 | MWJ66KL | B | €1,068.83 | |
 |
111944 | B | EPNV | 56C | 1.1-1.1 / .65 | 1/3 | .246 | MWJ72KX | B | €996.80 | |
 |
116187 | B | EPNV | 56J | 1.6-1.6 / .8 | 1/2 / 1/3 | 0.37 / 0.25 | MWJ71KX | B | - | RFQ
|
 |
117852 | B | EPNV | 56C | 1.8-1.6 / .8 | 1/2 | .37 | A-A56227-63 | B | €1,116.66 | |
 |
117853 | B | EPFC | 56C | 2.9-3 / 1.5 | 3/4 / 1/2 | .56 / .37 | A-A56227-63 | B | €1,135.09 | |
 |
119422 | B | EPFC | 56C | 3 / 1.5 | 1 / 3/4 | .75 / .56 | MWJ64KX | F | €1,226.71 |
