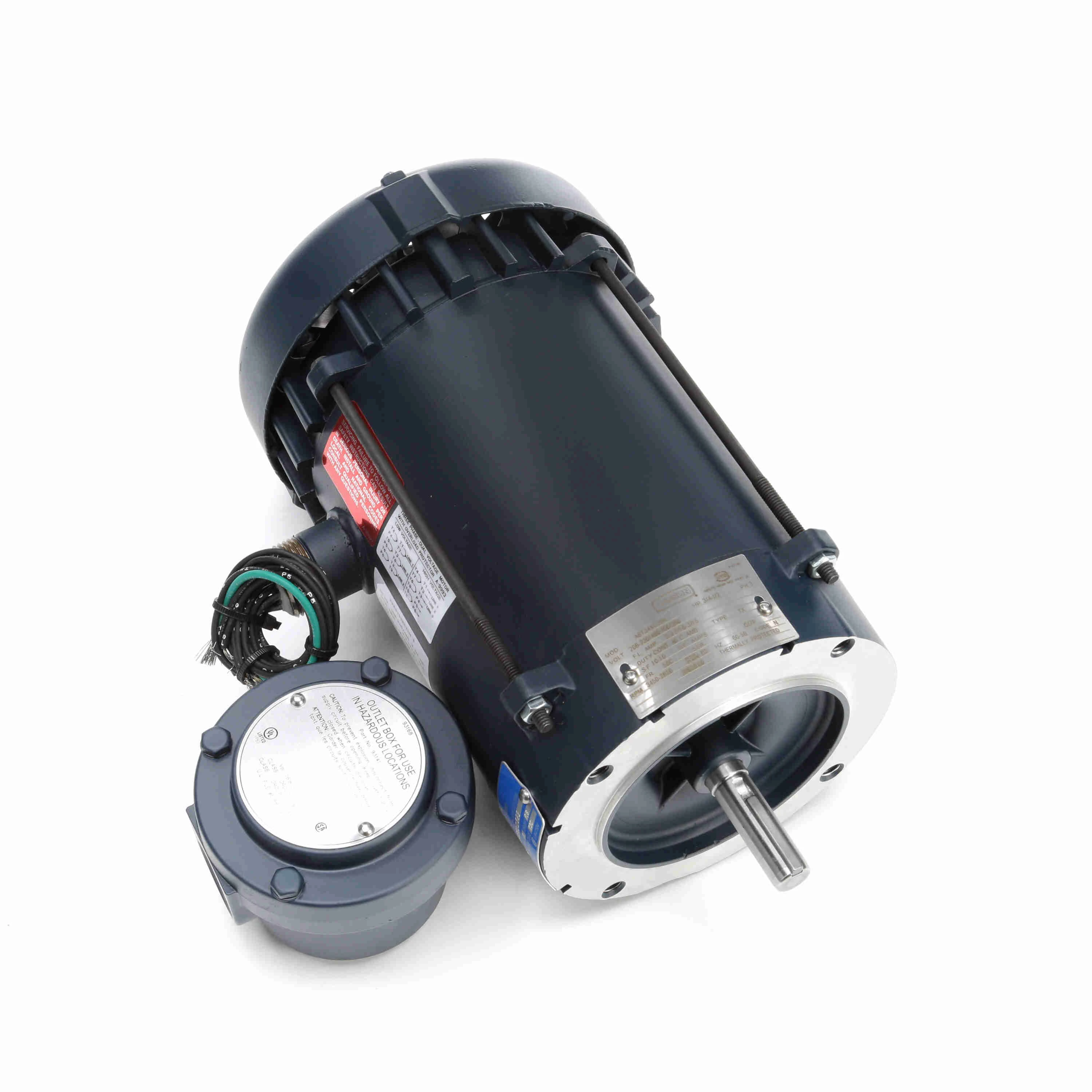

| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Assembly | A-S90894 |
| Code | N |
| Conduit Box Position | F1 |
| Design | B |
| Duty Cycle | Continuous |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frequency | 50/60 Hz |
| Full Load Amps | 3-3.2/1.6A |
| Grease Type | Polyrex EM |
| Hazardous Location Class | 1C, D/2F, G |
| Hp | 3/4 hp, 1/2 hp |
| Insulation Class | Class B |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 3600/3000 RPM |
| Output Rating | 0.56 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 69.1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | TX |
| Voltage | 208-230/460V AC |
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | MX |
| Product | Model | Design | Enclosure | Frame | Full Load Amps | HP | kW | Motor Thermal Protection | Packaging | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
111933 | B | EPNV | 56C | 1.6-1.6 / .8 | 1/2 / 1/3 | 0.37 / 0.25 | MWJ71KX | B | €1,036.57 | |
 |
111944 | B | EPNV | 56C | 1.1-1.1 / .65 | 1/3 | .246 | MWJ72KX | B | €996.80 | |
 |
116187 | B | EPNV | 56J | 1.6-1.6 / .8 | 1/2 / 1/3 | 0.37 / 0.25 | MWJ71KX | B | - | RFQ
|
 |
117852 | B | EPNV | 56C | 1.8-1.6 / .8 | 1/2 | .37 | A-A56227-63 | B | €1,116.66 | |
 |
117853 | B | EPFC | 56C | 2.9-3 / 1.5 | 3/4 / 1/2 | .56 / .37 | A-A56227-63 | B | €1,135.09 | |
 |
119422 | B | EPFC | 56C | 3 / 1.5 | 1 / 3/4 | .75 / .56 | MWJ64KX | F | €1,226.71 | |
 |
119423 | B | EPFC | 56C | 3.3 / 1.65 | 1 / 3/4 | .75 / .56 | A-A56227-63 | F | €1,332.72 |
