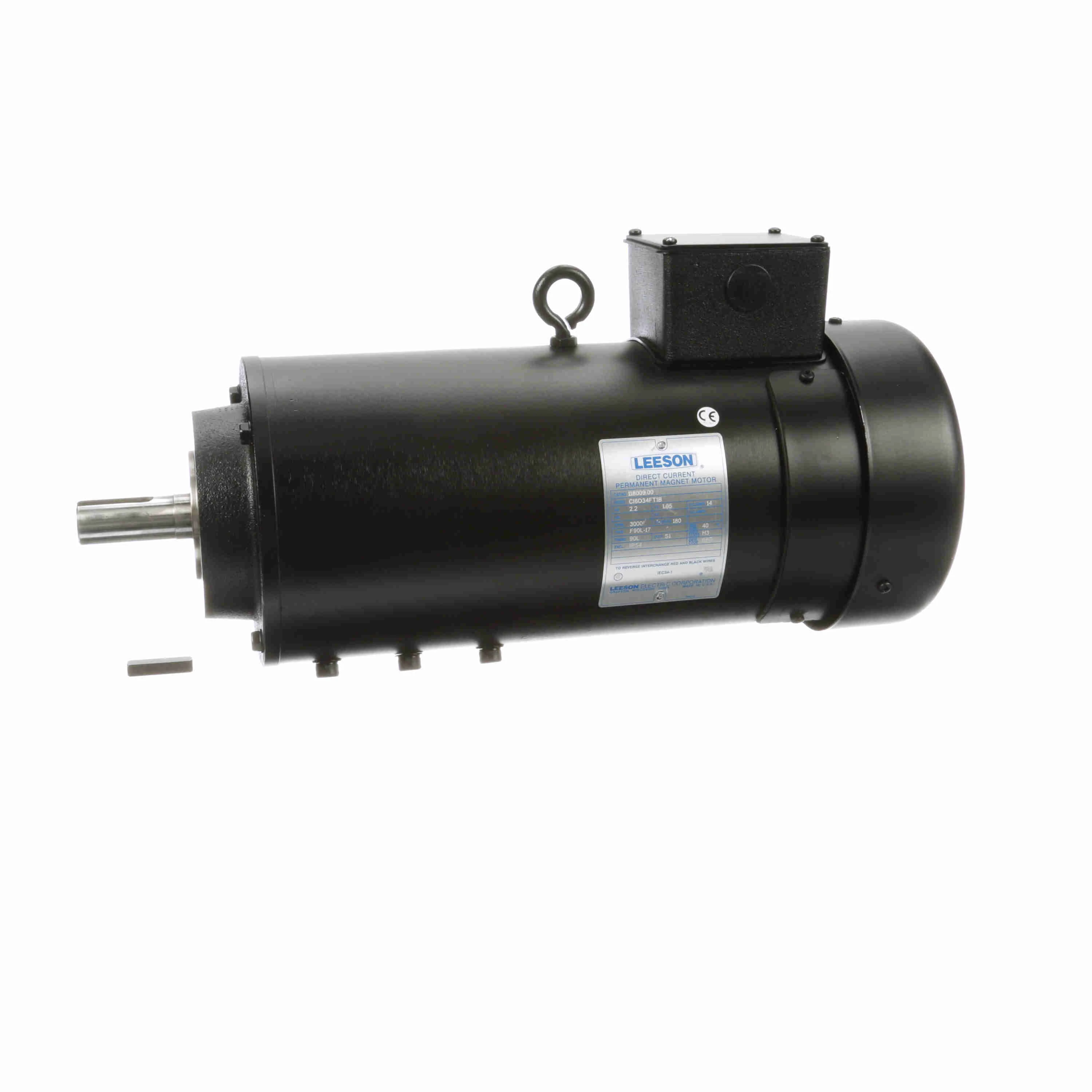

LEESON 118009.00 CI6D34FT1 / CI6D34FT1B Metric Motor, 180V, 3000 RPM
Get it by Wednesday, Jun 18
€2,108.13 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Metric Motor |
| Amps | 14A |
| Assembly | LD-58 |
| Duty Cycle | Continuous |
| Form Factor | 1.05 |
| Frame | 90L |
| Insulation Class | Class H |
| Max. Ambient Temp. | 40°C |
| Motor Shaft Rotation | Reconn |
| Mounting Type | Special |
| Nameplate Rpm | 3000 RPM |
| Nominal Efficiency | 73.2% |
| Power | 2.2 kW |
| Service Factor | 1 |
| Shaft Dia. | 24 mm |
| Torque | 42 lbs.-in. |
| Type | F90L-17 |
| Voltage | 180V |
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 59.39 |
| Ship width (cm) | 31.45 |
| Country of Origin | US |
| Product | Model | Amps | Form Factor | Frame | Insulation Class | kW | Mounting | Packaging | RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98015 | 3.5 | 1.05 | 71 | F | 0.55 | Special | PG659401.08B | 1800 | €647.39 | |
 |
108369 | 4.9 | 1.05 | 80 | F | 0.75 | Special | PG659401.08B | 1800 | €827.53 | |
 |
108370 | 6.7 | 1.05 | 80 | F | 1.1 | Special | PG659401.08B | 1800 | €988.02 | |
 |
108371 | 9.0 | 1.05 | 80 | H | 1.5 | Special | PG659401.08B | 1800 | €1,302.98 | |
 |
108372 | 7.0 | 1.05 | 80 | F | 1.1 | Special | PG659401.08B | 3000 | €800.78 | |
 |
108373 | 9.3 | 1.05 | 80 | F | 1.5 | Special | PG659401.08B | 3000 | €884.85 | |
 |
118010 | 20 | 1.05 | 90L | H | 3 | Special | 307032.193 | 3000 | €698.20 | RFQ
|
