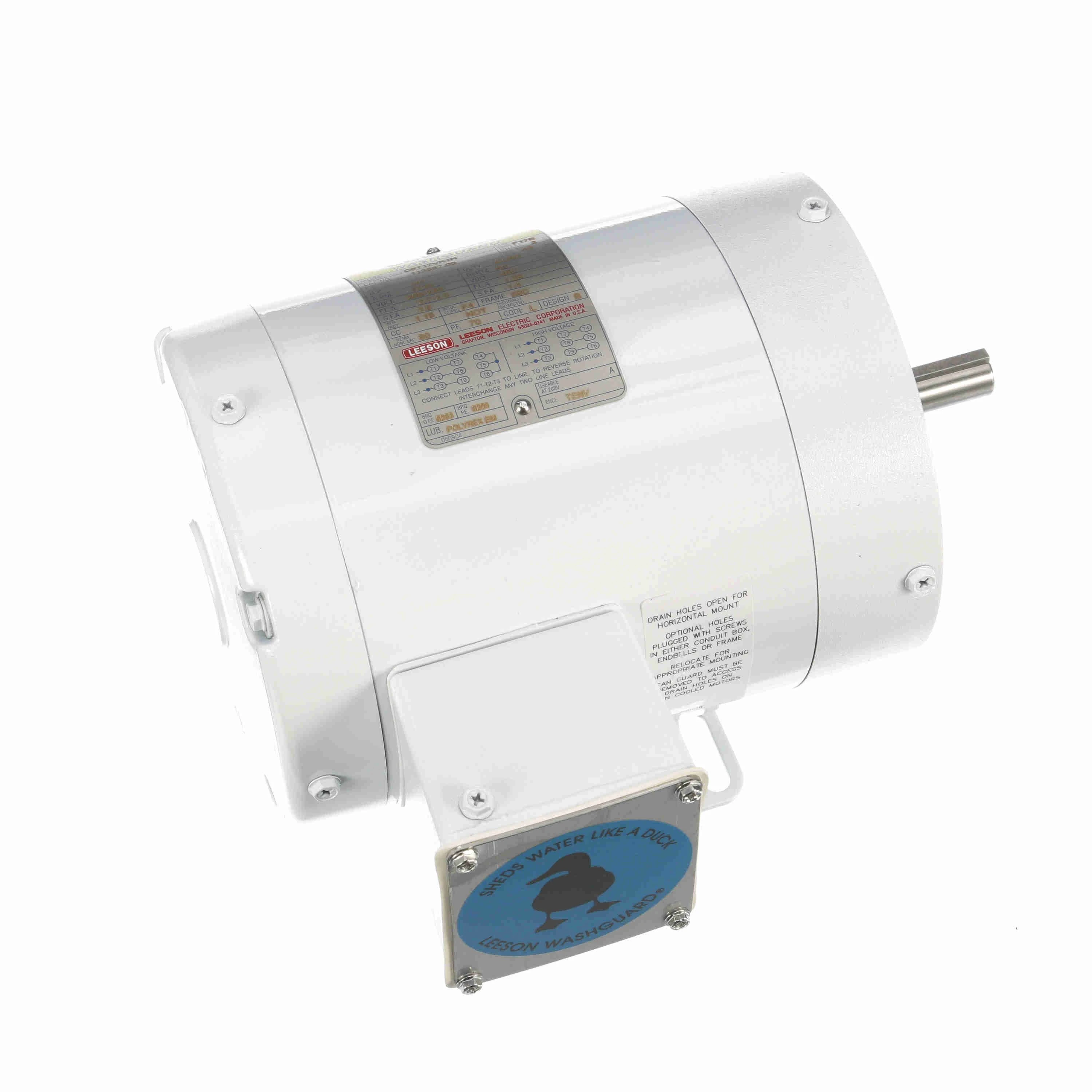

LEESON 113587.00 C6T17VK1H General Purpose Motor, 0.75 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Jun 17
€731.69 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Color | White |
| Conduit Box Location | Exterior |
| Design | B |
| Duty Cycle | Continuous |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.2A |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 10 9/16" |
| Packaging | B |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 70 |
| Removable Base | No |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Type | TN |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 8 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1725 RPM |
| Product Type | Washdown Motor |
| Standards | BISSC, CE, CSA, UL |
| Weight | 33 lbs. |
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Body Dia. | Bolt Circle Dia. | Design | Enclosure | Finish | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
112429 | - | - | - | B | TEFC | - | 56C | - | €633.88 | |
 |
112430 | - | - | - | B | TEFC | - | 56C | - | €731.69 | |
 |
112547 | - | 7.3" | 5 7/8" | B | TEFC | Unfinished | 56C | Rolled Steel | €684.74 | |
 |
113586 | - | - | - | B | TENV | - | 56C | - | €633.88 | |
 |
113590 | - | - | - | B | TENV | - | 56C | - | €724.27 | |
 |
113591 | - | - | - | B | TENV | - | 56HC | - | €802.00 | |
 |
115743 | - | - | - | B | TENV | - | 56C | - | €789.02 |
