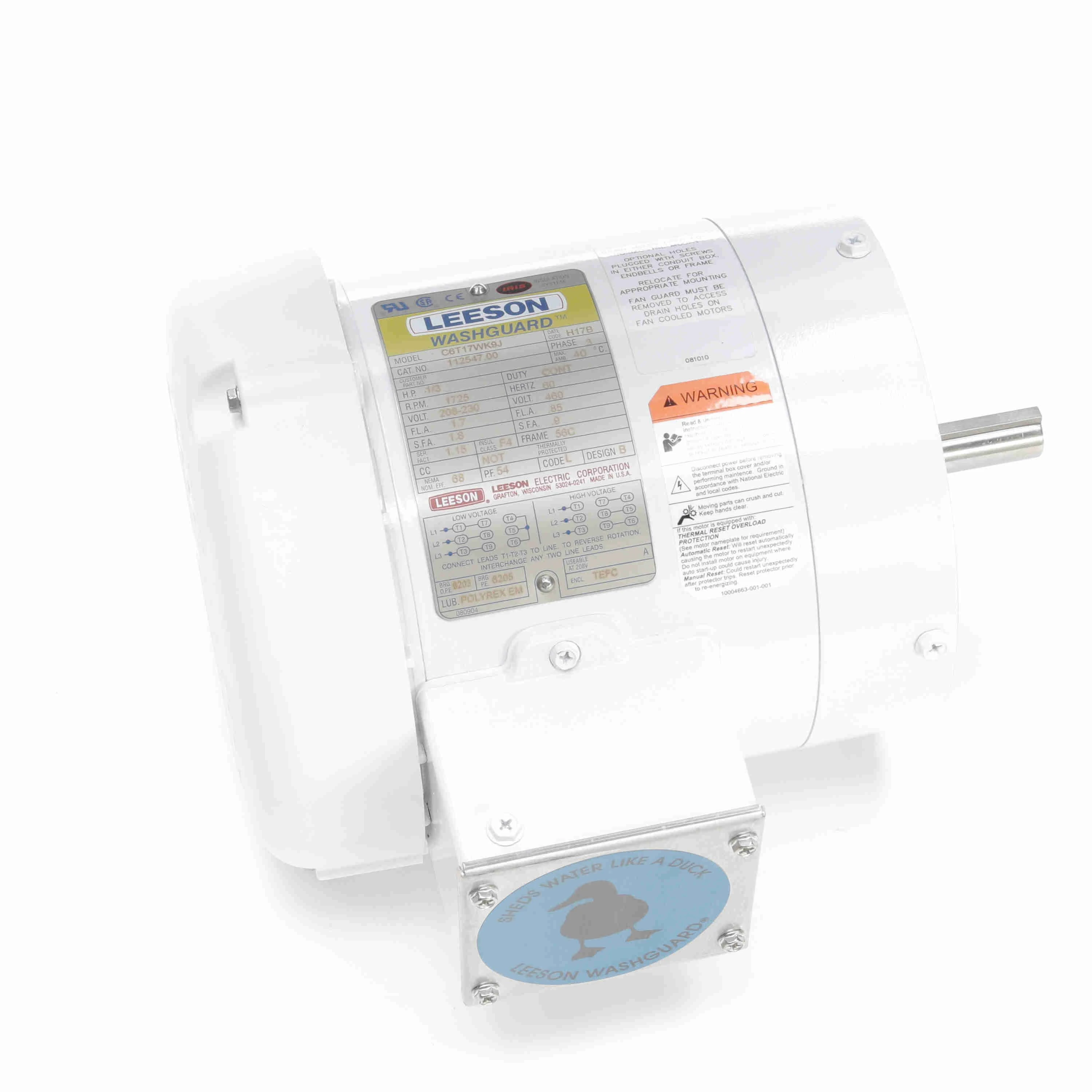

LEESON 112547.00 C6T17WK9J General Purpose Motor, 0.33 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Wednesday, Jun 18
€684.74 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 7.3" |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Conduit Box Location | Exterior |
| Design | B |
| Drain Plug | (1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell |
| Duty Cycle | Continuous |
| Finish | Unfinished |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.5-1.7/0.85A |
| Grease Type | Polyrex EM |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68% |
| Overall Length | 10 3/8" |
| Packaging | B |
| Phase | 3 |
| Power | 0.246 kW |
| Power Factor | 54 |
| Removable Base | No |
| Rotation | Reversible |
| Service Factor | 1.2 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | Manual |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Drain Plugs | (1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell |
| Hz | 60 |
| Ins. Class | Class F |
| Length Less Shaft | 8 7/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.2 |
| Motor Thermal Protection | Manual |
| Nameplate Rpm | 1725 RPM |
| Product Type | Washdown Motor |
| Standards | CE, CSA CERTIFIED, UL RECOGNIZED, USDA |
| Weight | 25 lbs. |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
