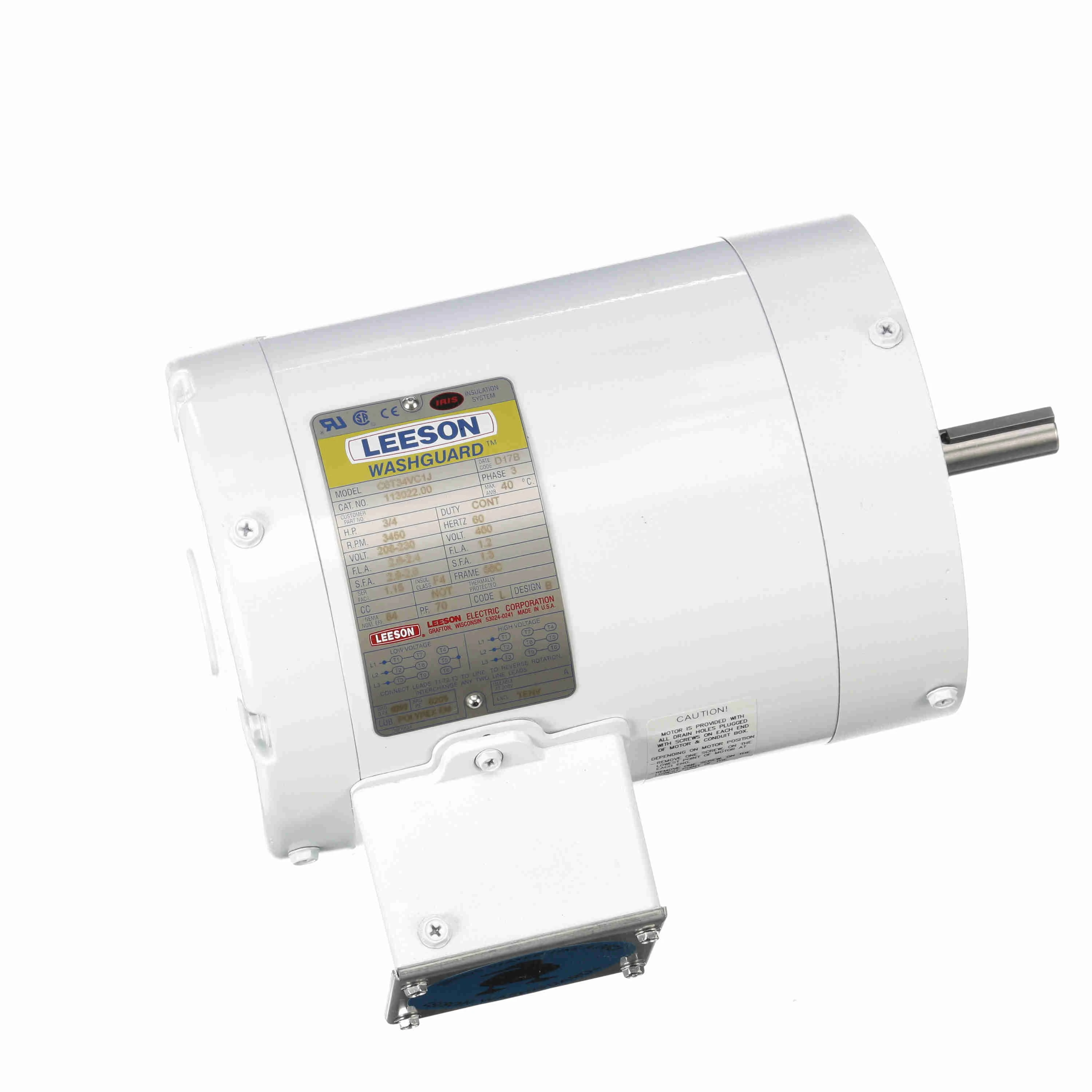

LEESON 113022.00 C6T34VC1J General Purpose Motor, 0.75 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
Get it by Wednesday, Jun 18
€622.74 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Color | White |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B |
| Duty Cycle | Continuous |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.1A |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84% |
| Overall Length | 11 1/16" |
| Packaging | B |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 70 |
| Removable Base | No |
| Rotation | Reversible |
| Rpm | 3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Type | TN |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 9 1/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Product Type | Washdown Motor |
| Standards | BISSC, CE, CSA, UL |
| Weight | 31 lbs. |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Enclosure | Frame | Full Load Amps | HP | Hz | kW | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
113019 | TENV | 56C | 2.7-2.5 / 1.25 | 3/4 | 60 | .56 | 40 | - | €712.29 | |
 |
113023 | TENV | 56C | 2.6 / 1.3 | 1 | 60 | .75 | 40 | - | €726.25 | |
 |
113024 | TENV | 56C | 3.8 / 1.9 | 1.5 | 60 | 1.12 | 40 | - | €768.69 | |
 |
113473 | TENV | 56C | 2.0-1.8 / .9 | 1/2 | 60 | .37 | 40 | - | €615.45 | |
 |
113649 | TENV | 56C | 1.1 / .55 | 1/4 | 60 | .187 | 40 | - | €561.70 | |
 |
116644 | TEFC | 56C | 2 / 1 | 1/2 / 1/3 | 50/60 | 0.37 / 0.25 | 40 | - | €615.62 | |
 |
116645 | TEFC | 56C | 2.7-2.8 / 1.4 | 3/4 / 1/2 | 50/60 | 0.56 / 0.37 | 40 | - | €712.29 |
