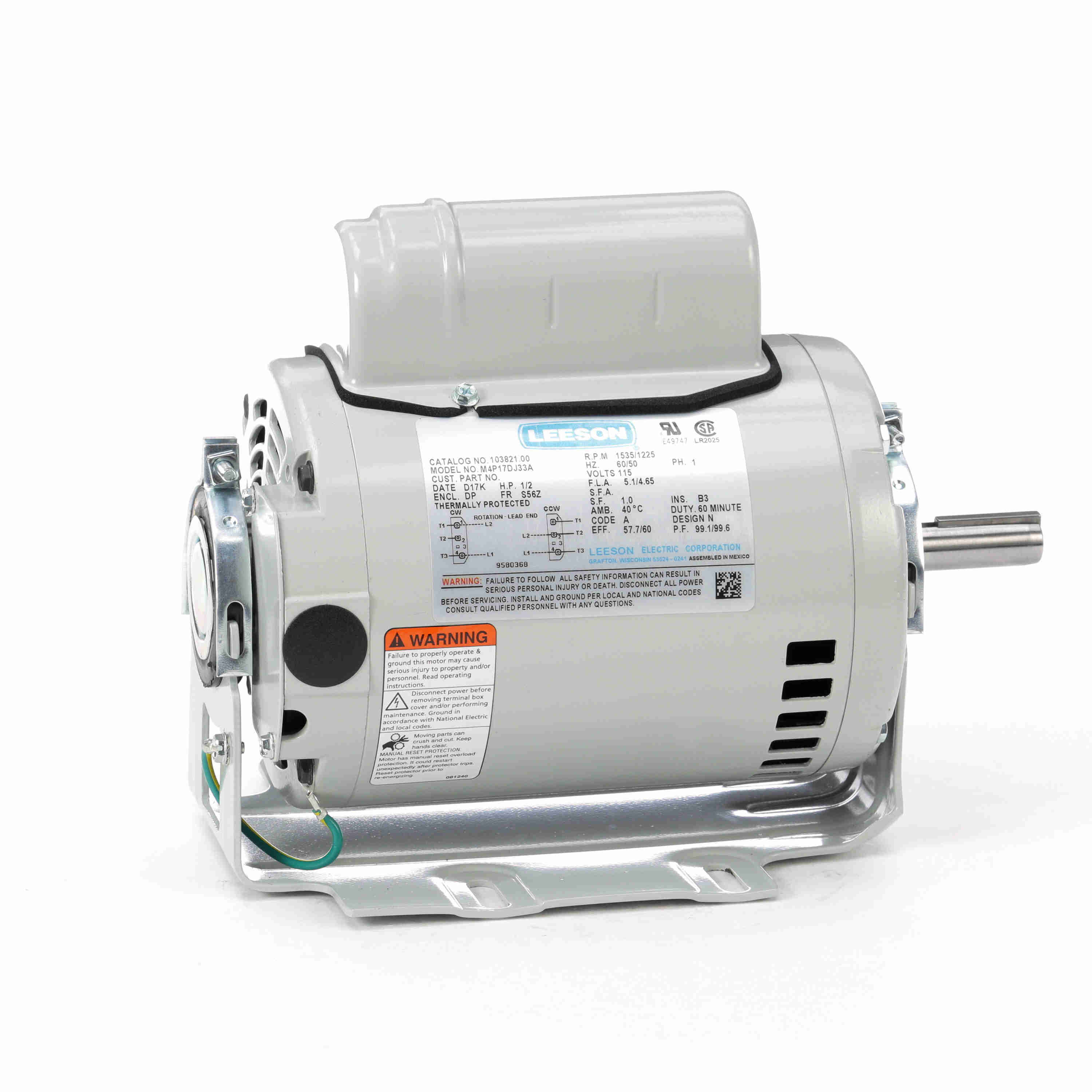

LEESON 103821.00 M4P17DJ33A Instant Reversing Motor, 0.50 HP, 1 Phase, 60/50 Hz, 115 and 115V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Instant Reverse Motor |
| Ambient Temp. | 40°C |
| Code | A |
| Duty Cycle | 60 min. |
| Frame | S56Z |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.1/4.65A |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Lubrication | Polyrex EM |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1535/1225 RPM |
| Nema Design | A, N |
| No. Of Wires | 3 |
| Packaging | F |
| Phase | 1 |
| Power | 0.37 kW |
| Service Factor | 1 |
| Thermal Protection | Manual |
| Type | PD |
| Voltage | 115V AC |
| Ship weight (kg) | 11.79 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| Country of Origin | MX |
| Product | Model | Duty | Frame | Full Load Amps | Hz | Insulation Class | Motor Thermal Protection | Packaging | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100802 | Continuous | S56 | 6.1 | 60 | F | MEJ26RB | B | 98 | €573.78 |
