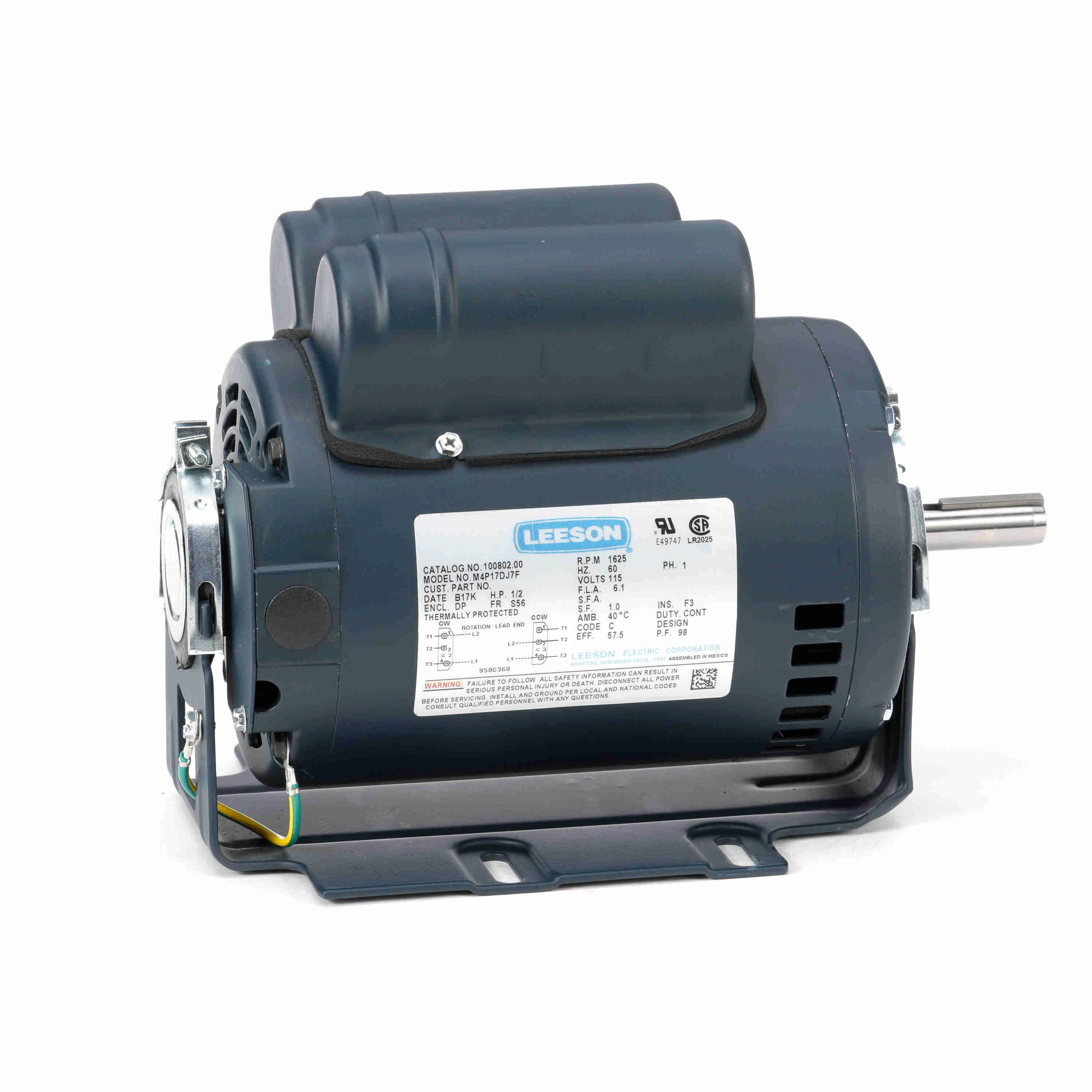

LEESON 100802.00 M4P17DJ7F Instant Reversing Motor, 0.50 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Friday, Jun 20
€573.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 20
Payment
| Item | Instant Reverse Motor |
| Ambient Temp. | 40°C |
| Assembly | LO100802 |
| Code | C |
| Duty Cycle | Continuous |
| Frame | S56 |
| Frequency | 60 Hz |
| Full Load Amps | 6.1A |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Dripproof |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1625 RPM |
| Nema Design | C |
| No. Of Wires | 3 |
| Packaging | B |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 98 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Thermal Protection | Manual |
| Type | PD |
| Voltage | 115V AC |
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
| Product | Model | Duty | Frame | Full Load Amps | Hz | Insulation Class | Motor Thermal Protection | Packaging | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103821 | 60 MINUTE | S56Z | 5.1 / 4.65 | 50/60 | B | CEJ63CB | F | 99.1 / 99.6 | - | RFQ
|
