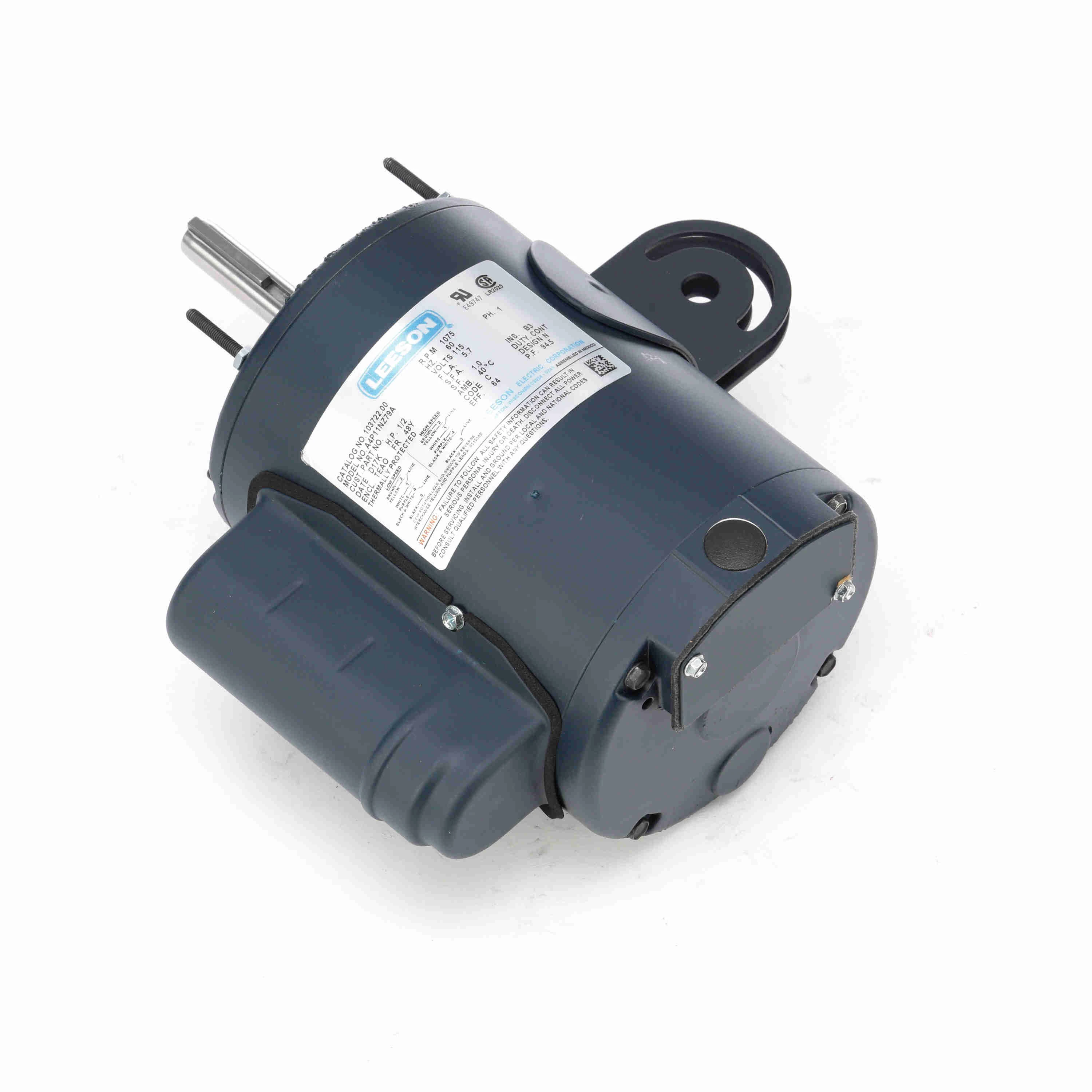

LEESON 103722.00 A4P11NZ79A Pedestal Fan Motor, 0.50 HP, 1 Phase, 60 Hz, 115V, 1200 RPM
Get it by Wednesday, Jun 18
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | C |
| Design | C, N |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 5.7A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Round Swing Arm |
| Nameplate Rpm | 1075 RPM |
| No. Of Speeds | 1 |
| Output Kw | 0.37 kW |
| Packaging | F |
| Phase | 1 |
| Power Factor | 94.5 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/9" |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115V AC |
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
