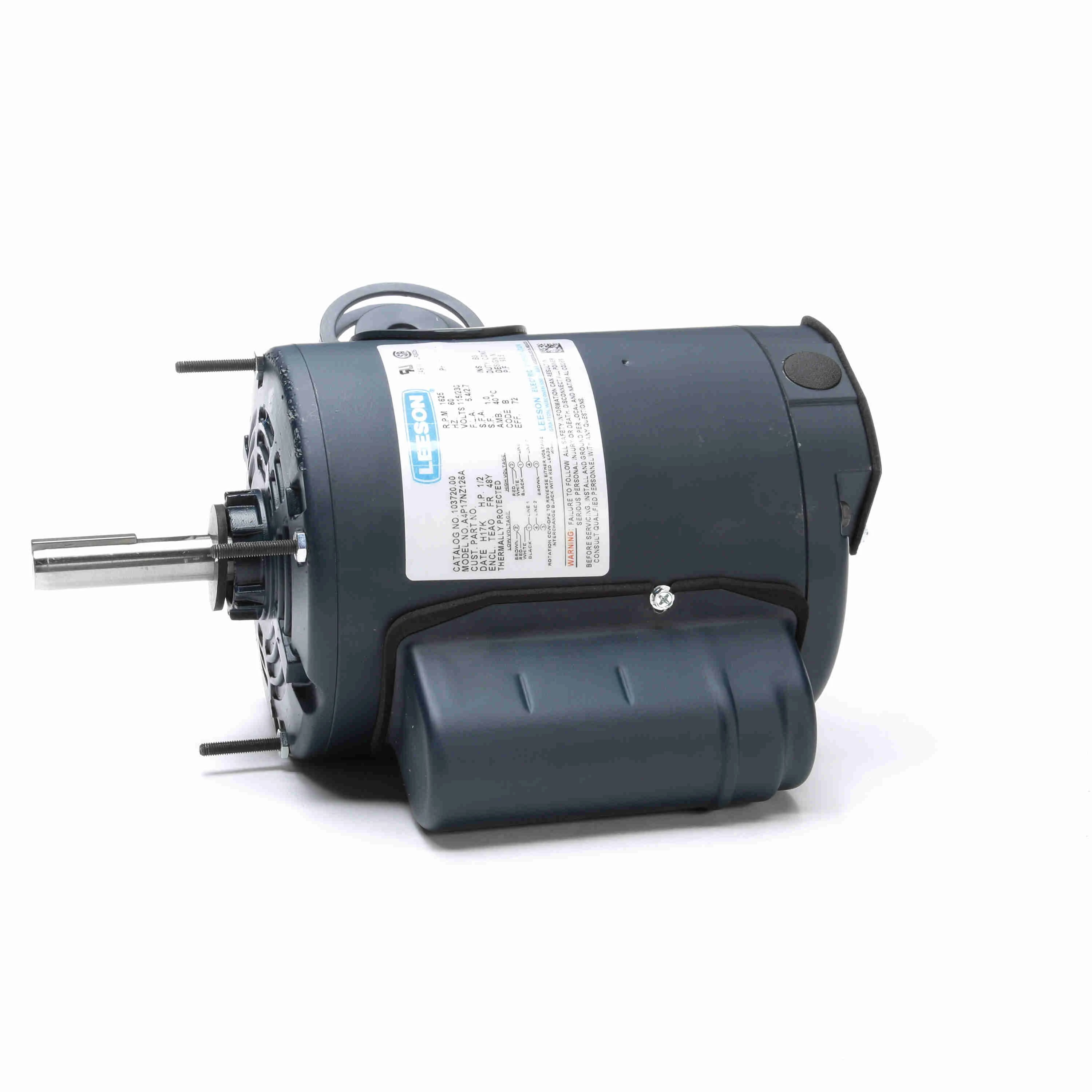

LEESON 103720.00 A4P17NZ126A Pedestal Fan Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€342.38 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | B |
| Design | B, N |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frequency | 60 Hz |
| Grease Type | Multemp SRL |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Lubrication | Multemp SRL |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Round Swing Arm |
| Nameplate Rpm | 1625 RPM |
| No. Of Speeds | 1 |
| Output Kw | 0.37 kW |
| Packaging | F |
| Phase | 1 |
| Power Factor | 93.5 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/9" |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115/230V AC |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
