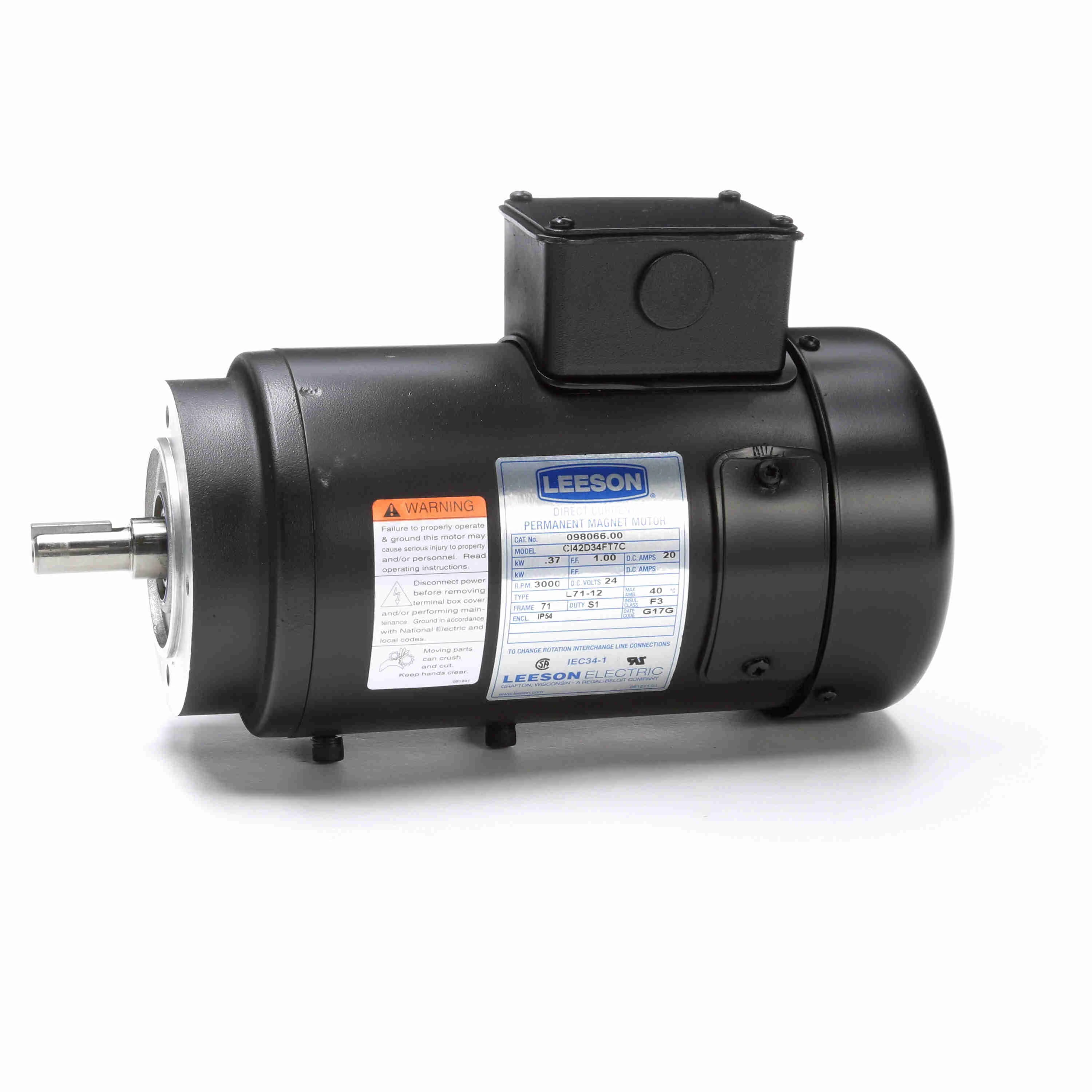

LEESON 098066.00 CI42D34FT7 / CI42D34FT7C Metric Motor, 24V, 3000 RPM
Get it by Monday, Jun 16
€819.89 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Metric Motor |
| Duty Cycle | Continuous |
| Efficiency | 72.2% |
| Form Factor | 1 |
| Frame | 71 |
| Full Load Torque | 10.5 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Lubrication | Grease |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting | Special |
| Mounting Type | Special |
| Nameplate Rpm | 3000 RPM |
| Output Kw | 0.37 kW |
| Packaging | PG659401.08B |
| Power | 0.37 kW |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 14 mm |
| Type | L71-12 |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Leeson 098066.00 CI42D34FT7 metric magnet motor is used for powering lathes, milling machines and grinders. It can also be used for drive fans and blowers for ventilation, cooling and air circulation in buildings, factories and HVAC systems.
A. Proper alignment, secure mounting and ensuring proper ventilation are essential during installation to prevent overheating and premature wear.
A. Yes, by reversing the direction of the current through the stator windings, the motor can rotate in either direction.
A. Cleaning, inspecting connections and checking for signs of wear can extend the motor's life.
| Product | Model | Amps | Assembly | Duty | Frame | Insulation Class | kW | Lubrication | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
98065 | 11 | - | S1 | 71 | F | 0.18 | Polyrex EM | 40 | €619.56 | |
 |
98067 | 20 | - | S1 | 71 | F | 0.37 | Polyrex EM | 40 | €679.06 | |
 |
108456 | 40 | - | S1 | 80 | F | 0.75 | Polyrex EM | 40 | €787.66 | |
 |
108458 | 78 | - | S1 | 80D | H | 1.5 | Polyrex EM | 40 | €1,144.31 | |
 |
M1130207.00 | 10 | M1040938 | S1 | 63D | F | 0.18 | Polyrex EM | 40 | €194.90 | |
 |
M1130297.00 | 10 | M1040702 | S1 | 63D | F | 0.18 | - | 40 | €656.58 |
