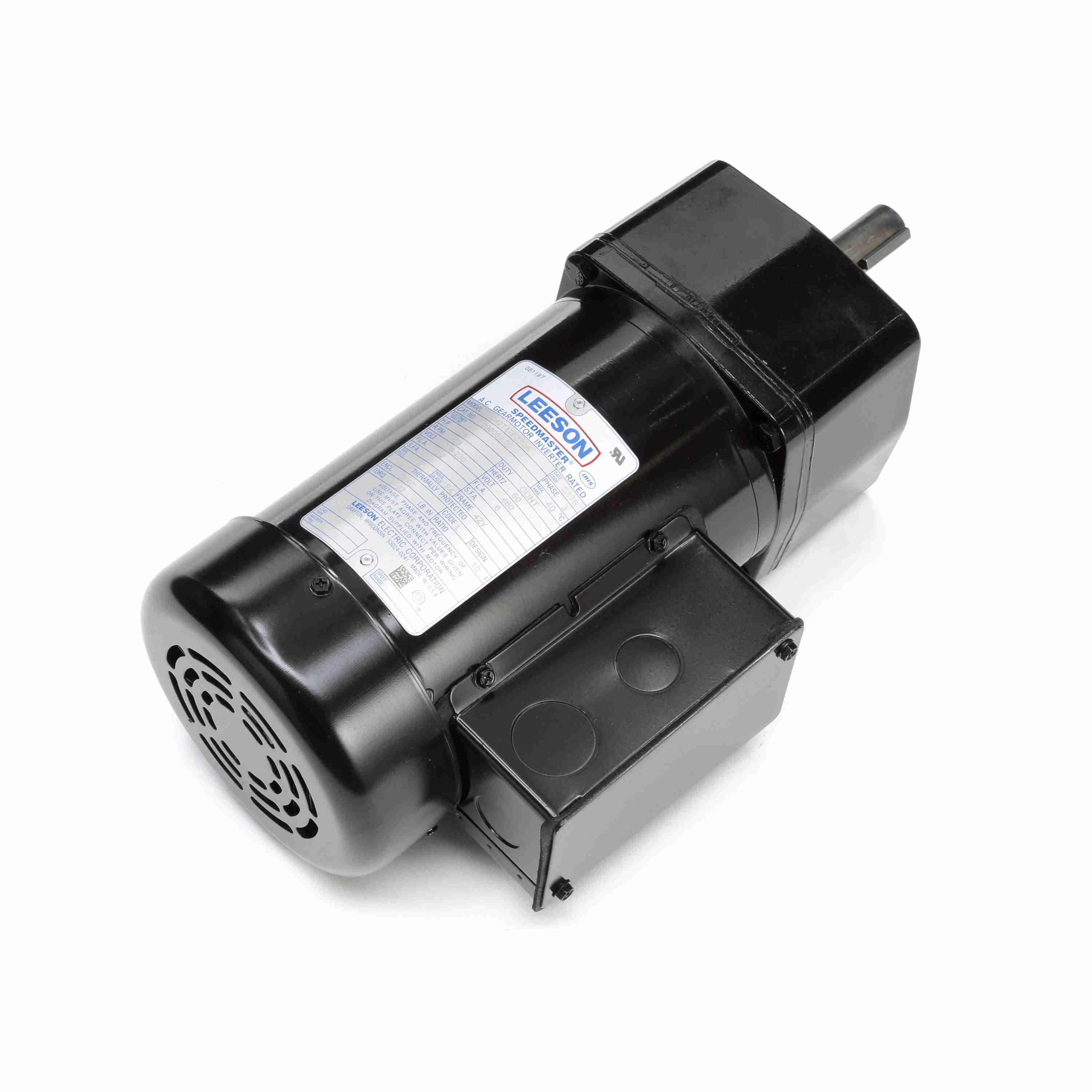

LEESON 096069.00 C42T17FZ32 / C42T17FZ32A Parallel Shaft Gearmotor, 0.25 HP, 3 Phase, 60 Hz, 208-230/460V, 173 RPM
Get it by Tuesday, Jun 17
€1,143.75 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | AC Gearmotor |
| Bearing Type | Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | Enamel |
| Full Load Amps | 1.2/0.6A |
| Gear Case Material | Die Cast Aluminum |
| Gear Ratio | 10:1 |
| Housing Material | Rolled Steel |
| Input Hp | 1/4 hp |
| Insulation Class | Class F4 |
| Keyway Size | 0.18" x 1" |
| Length Less Shaft | 11.45" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Mounting | All Position Except Shaft Up |
| Mounting Orientation | All Except Shaft Up |
| Nameplate Rpm | 173 RPM |
| No Load Rpm | 179 RPM |
| Overhung Load | 300 lbs. |
| Phase | 3 |
| Rotation | Reversible |
| Rpm Range | 151-200 RPM |
| Seals | Heavy Duty, Single Lip, Spring Loaded |
| Shaft Orientation | Parallel |
| Thermal Protection | None |
| Voltage | 208-230/460V AC |
| Agma Gear Class | Class 9 |
| Application | Inverter Duty |
| Brake Type | None |
| Frequency | 60 Hz |
| Full Load Current | 1.2/0.6A |
| Gear Material | Precision Machined and Hardened |
| Housing Material Finish | Black High Gloss Enamel |
| Input Horsepower | 0.25 hp |
| Inverter Rated | Yes |
| Keyway Type | 0.18 sq. in. x 1" |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 173 RPM |
| Maximum Torque | 92 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 42Y |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Type | Horizontal or Vertical Shaft Down |
| Nameplate Speed | 173 RPM |
| No Load Speed | 179 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230/460V AC |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 4.97" |
| Overall Length | 13.07" |
| Overall Width | 4.29" |
| Overhung Load Capacity | 327 lbs.-ft. |
| Seal Type | Heavy Duty, Single Lip, Spring Loaded |
| Service Factor | 1 |
| Standards | CE Y, CSA Y, UL |
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501514020 |
| Country of Origin | US |
