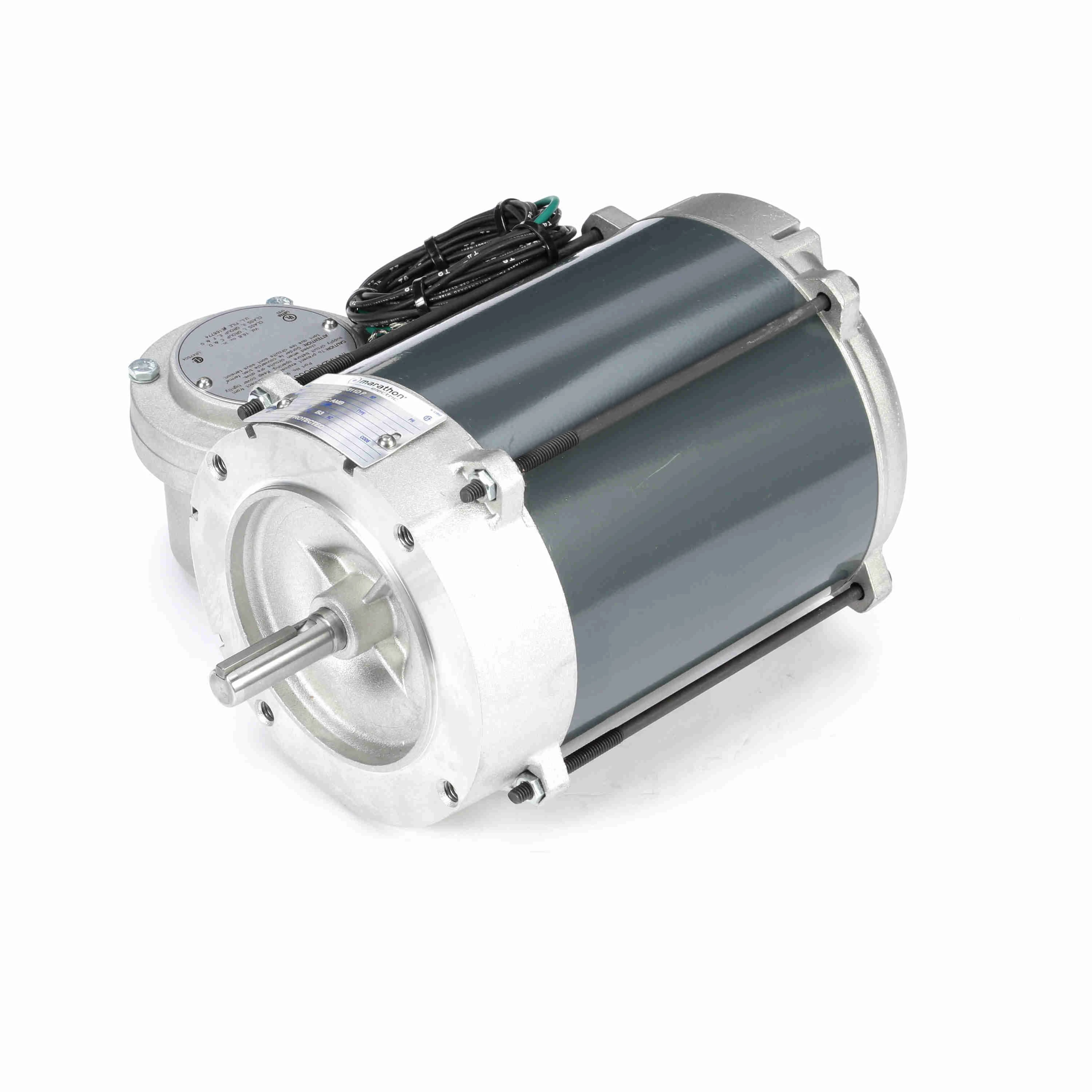

LEESON 056T17E5311 G828 / 56T17E5311D Explosion Proof Motor, 0.33 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Friday, Jun 13
€892.68 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Hazardous Location |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Hazardous Location Class | Class 1C, Class D/2F, Class G |
| Hazardous Location Division | Division 1 |
| Hp | 1/3 hp |
| Includes | Conduit Box |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length Less Shaft | 9.938" |
| Motor Application | Hazardous Location |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nominal Efficiency | 74.5% |
| Number Of Speeds | 1 |
| Overall Length | 12" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Full Load Amps | 1.20-1.20/0.6A |
| Hz | 60 |
| Ins. Class | Class B |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 1212 lbs. |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Full Load Amps | Hazardous Location Class | HP | Item | Lead Length | Length Less Shaft | NEMA Design | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17G5315 | 2.3-2.4/1.2 | 1 C,D / 2 F,G | 1/2 | Hazardous Location Motor | 12" to 18" | 11.875" | None | 68% | €938.99 | |
 |
056T17E5312 | 0.44 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 1/4 | Explosion Proof Motor | - | - | B | - | €844.53 | |
 |
056T17E5310 | 1.1-1.1/.55 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 1/4 | Explosion Proof Motor | - | - | B | - | €844.53 |
