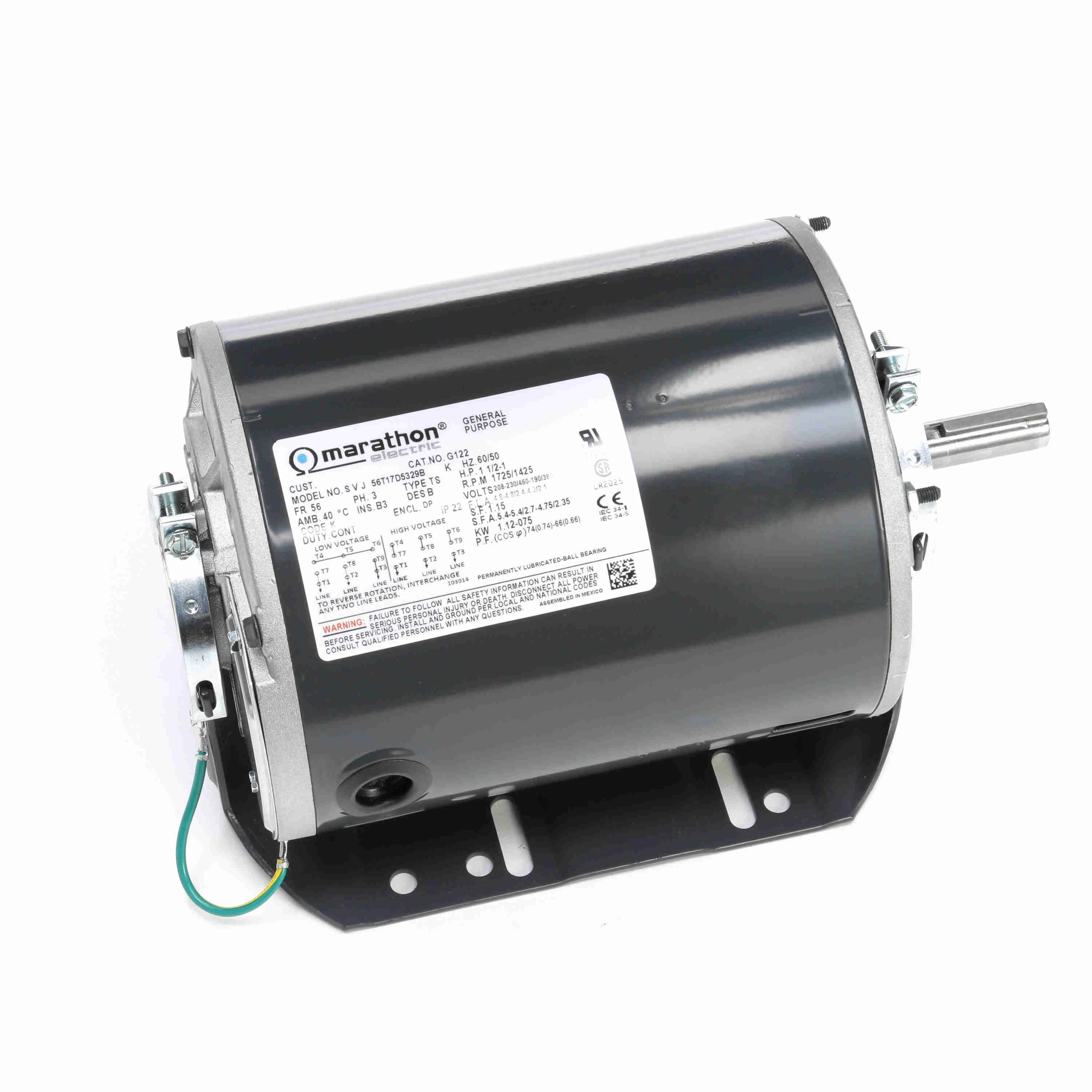

LEESON 056T17D5329 G122 / 56T17D5329B Fan/Blower Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Jun 17
€548.83 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Conduit Box Position | F1 Only |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 4.8/2.4A |
| Full Load Efficiency | 80% |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | No |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Resilient Base |
| Nema Design | B |
| Number Of Speeds | 1 |
| Overall Length | 11 3/8" |
| Phase | 3 |
| Power | 1.12 kW |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 9.062" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.91" |
| Shaft Orientation | Horizontal |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 1 yr. |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Service Factor | 1.15 |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Standards | CSA (MC236833), UL (E46035) |
| Weight | 29 lbs. |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 20.32 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | kW | Mounting | Orientation | RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K49PN4088X | 56H | 5.1-5.2/2.6 | 1.5 | 60 | - | RB | Horizontal or Vertical | 1725 | €622.91 | |
 |
5K49UN4086X | 56H | 6.2-6.0/3.0 | 2 | 60 | - | RB | Horizontal or Vertical | 1725 | €679.08 | |
 |
5K46KN4085 | 56 | 3.3-3.0/1.5 | 3/4 | 50/60 | - | RB | Horizontal or Vertical | 1725/1425 | €483.39 | |
 |
056T17D5350 | 56HZ | 9.2-8.6/4.3 | 3 | 60 | 2.24 | Resilient Base | Horizontal | 1800 | €755.64 | |
 |
056T17D2104 | 56 | 1.5-1.6/.8 | 1/3 | 60 | 0.25 | Resilient Base | Horizontal | 1800 | €461.16 | |
 |
5K49PN3052 | 56 | 1.3/0.7 | 3.25 | 60 | - | RB | Horizontal or Vertical | 1725/1140 | €748.84 | |
 |
056T17D2101 | 56 | 3.4-3.4/1.7 | 1 | 60 | 0.75 | Resilient Base | Horizontal | 1800 | €571.67 |
