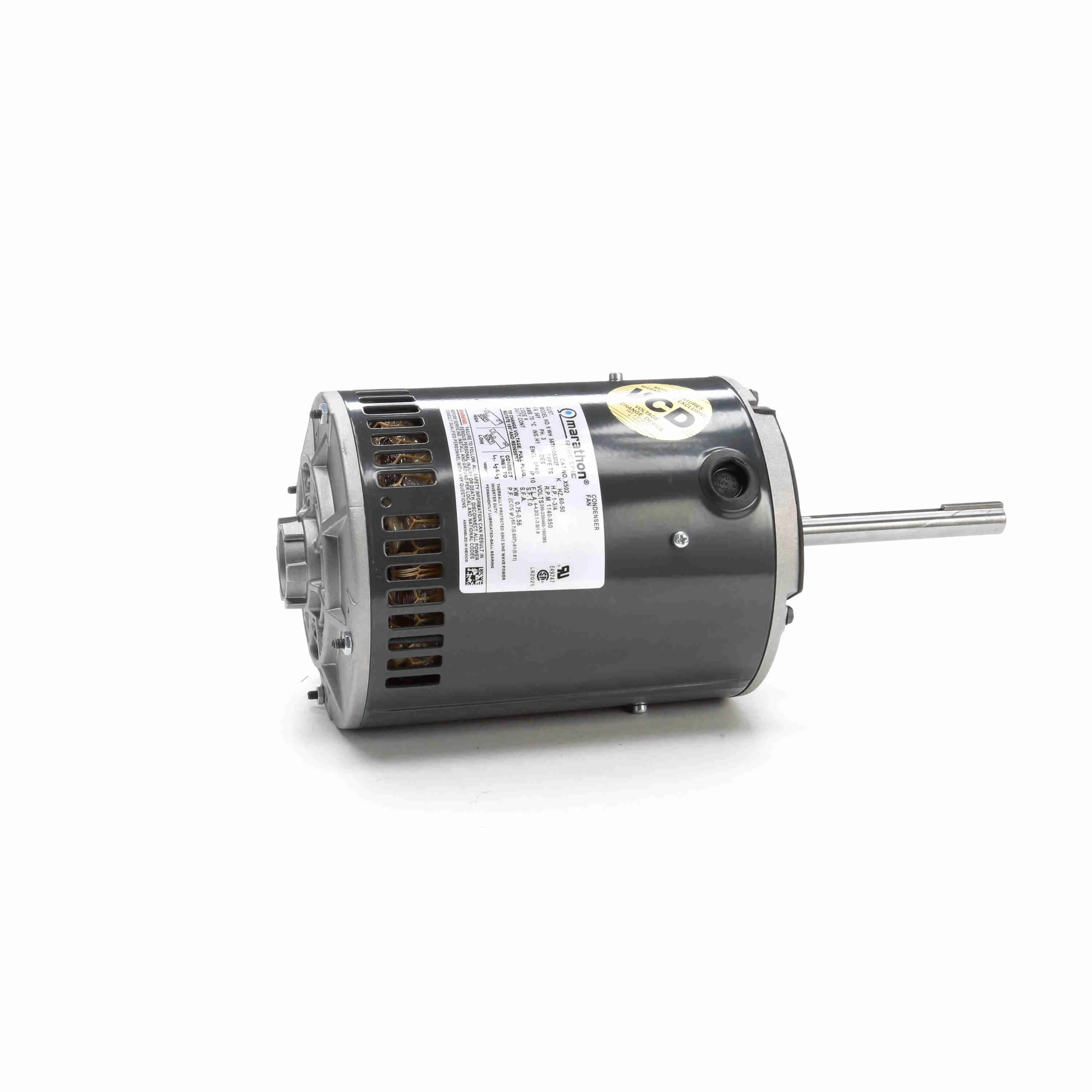

LEESON 056T11O5302 X502 / 56T11O5302F Condenser Fan Motor, 1/0.75 HP, 3 Ph, 60/50 Hz, 200-230/460 and 190/380V, 1200 RPM
Get it by Tuesday, Jun 17
€521.89 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 70°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Capacitor Required | No |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Enclosure Type | Open Air Over |
| Features | (4) Locating Screws 90 Degrees Apart, 3-5/16 In From Outer Edge Of Shaft Slinger, Voltage Change Device For Quick Voltage Changes |
| Frame | 56Y |
| Frame Material | Steel |
| Full Load Amps | 4-4.2/2.1A |
| Full Load Efficiency | 75.5% |
| Hp | 1 hp |
| Insulation Class | Class H |
| Length Less Shaft | 10.062" |
| Max. Ambient Temp. | 70°C |
| Motor Application | HVAC/R |
| Motor Design | Three Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal, Vertical Shaft Up |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Belly Band Footless |
| Nameplate Rpm | 1140 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 75.5% |
| Number Of Speeds | 1 |
| Overall Length | 15.062" |
| Phase | 3 |
| Power | 0.75 kW |
| Removable Base | No |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 5" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460V |
| Warranty | 1 yr. |
| Hz | 50/60 Hz |
| Ins. Class | Class H |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Band/Stud |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Output Watts | 750 W |
| Standards | CSA CERTIFIED (LR2025), UL RECOGNIZED |
| Weight | 29 lbs. |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 42.06 |
| Ship width (cm) | 19.05 |
| HS code | 8501516040 |
| Country of Origin | MX |
| Product | Model | Duty | Enclosure | Frame | Full Load Amps | HP | Insulation Class | kW | NEMA Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T11O5303 | CONTINUOUS AOM | OPAO | 56Z | 5.5-5.4/2.7 | 1.5 | H | 1.12 | NO DESIGN CODE | €568.32 | |
 |
056T8O5307 | CONTINUOUS AOM | OPAO | 56Y | 7.5-6.8/3.4 | 1.5 | H | 1.12 | B | €1,129.75 | |
 |
056T11O5304 | CONTINUOUSAOM | OPAO | 56Y | 7.2-6.8/3.4 | 2 | H | 1.49 | NO DESIGN CODE | €616.60 | |
 |
5K49RN6429S | Continuous | DP | 56Z | 1.6 | 1 | B | - | - | €705.63 | |
 |
056T8O5302 | CONTINUOUSAOM | OPAO | 56Y | 5.3-5.3/2.65 | 1 | H | 0.75 | NO DESIGN CODE | €984.05 | |
 |
056T11O5300 | CONTINUOUS AOM | OPAO | 56Y | 2.4-2.7/1.35 | 1/2 | H | 0.37 | NO DESIGN CODE | €762.43 | |
 |
5K38SN267S | Continuous | Open | 48Z | 3.3-3.8/1.9 | 3/4 | B | - | B | €138.51 |
