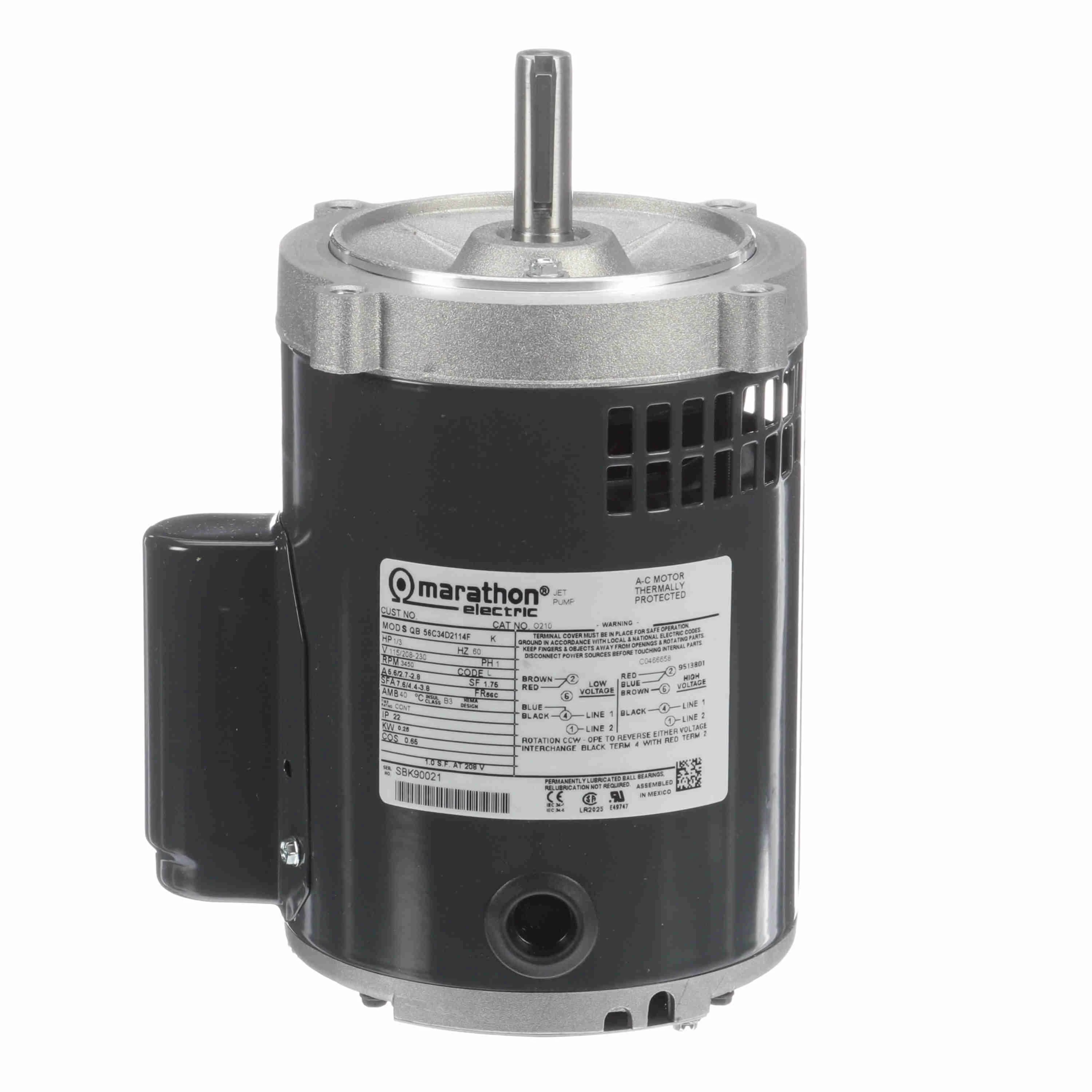

LEESON 056C34D2114 O210 / 56C34D2114F Fan and Blower Motor, 0.33 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Tuesday, Jun 17
€254.97 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Oil Burner Motor |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 5.6/2.7-2.8A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Selective CCW |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3450 RPM |
| Nema Design | Definite Duty |
| Number Of Speeds | 1 |
| Phase | 1 |
| Power | 0.25 kW |
| Rpm | 3600 RPM |
| Service Factor | 1.75 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Body Dia. | Enclosure | Full Load Amps | HP | kW | Motor Mounting Position | Mounting | NEMA Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KC39RN44X | 5.66" | Open Dripproof | 13.2/6.5-6.6 | 1 | - | Horizontal | Face | - | €368.56 | |
 |
5KC49TN2141X | 6.42" | Open Dripproof | 21.2/11.5-10.6 | 2 | - | All Angle | Face | - | €621.06 | |
 |
5KCR48TN2142T | 6.42" | Open Dripproof | 29.4/14.7 | 3 | - | All Angle | Face | - | €987.75 | |
 |
5KC36JN268X | 5.625" | - | 7.6/3.8 | 1/2 | - | Horizontal | - | - | €279.04 | |
 |
5KC37FN71X | 5.625" | - | 6.4/3.2 | 1/3 | - | Horizontal | - | - | €254.97 | |
 |
056C34D2105 | - | DP | 12/6.2-6 | 1 | 0.75 | - | C-Face Footless | DEFINITE DUTY | €379.67 | |
 |
056S34D93 | - | DP | 5.5 | 1/3 | 0.25 | - | C-Face Footless | NO DESIGN CODE | €77.66 | RFQ
|
