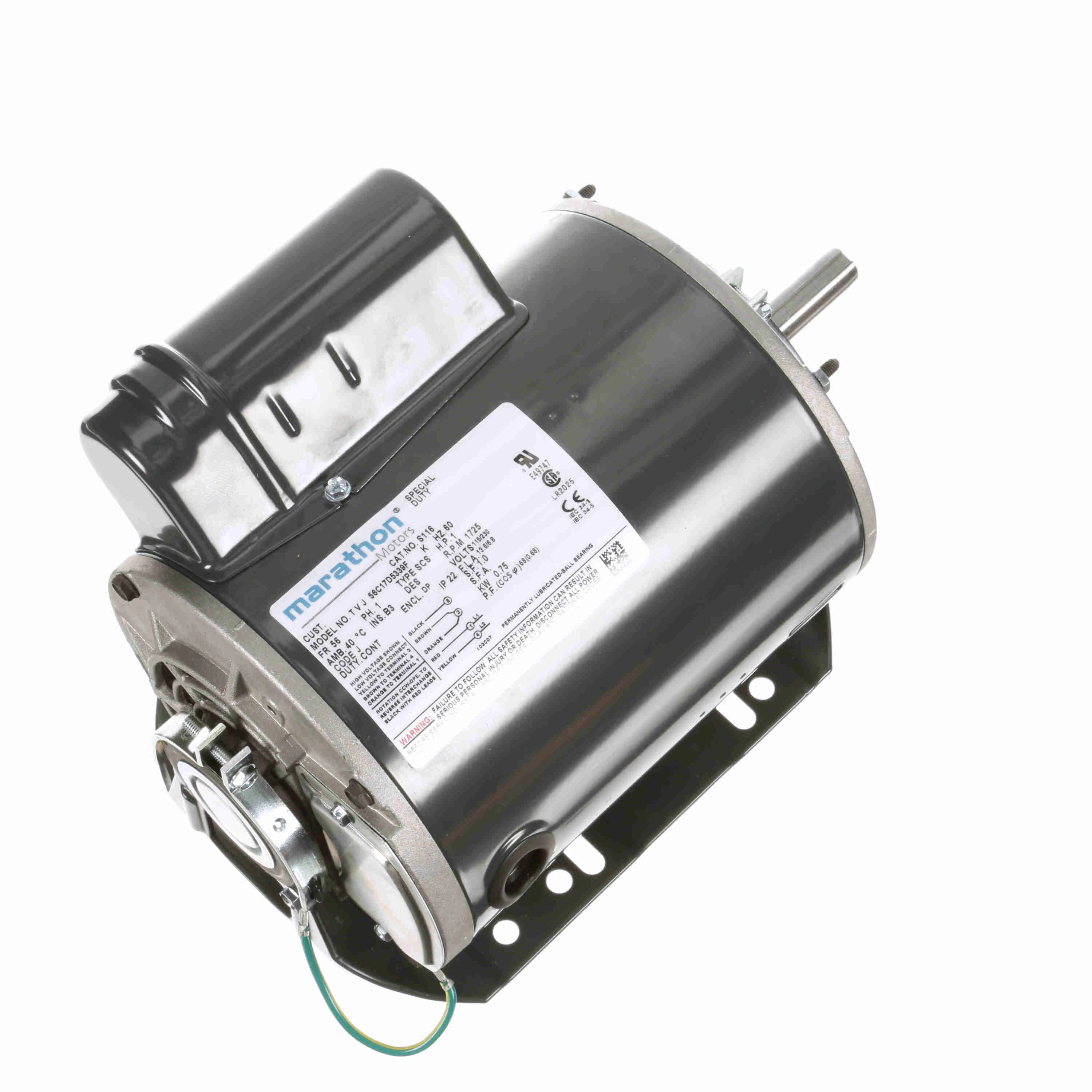

LEESON 056C17D5339 S116 / 56C17D5339F General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€558.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.6/6.8A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 7/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Overall Length | 11 3/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 29 lbs. |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 24.43 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Motor Design | Nominal Efficiency | Shaft Dia. | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048C17D2028 | 48 | 7.0/3.5 | 1/3 | 7.75" | Capacitor-Start | 57.5 | 1/2" | 1.5" | €285.83 | |
 |
048C17D2029 | 48 | 7.0/3.5 | 1/3 | 7.75" | Capacitor-Start | 57.5 | 1/2" | 1.5" | €360.76 | |
 |
048S17D2105 | 48Y | 6.6 | 1/3 | 7.75" | Split-Phase | 57.5 | 1/2" | 2" | €249.41 | |
 |
048S17D2106 | 48Z | 9.2 | 1/2 | 8.25" | Split-Phase | 59.5 | 1/2" | 2" | €274.73 | |
 |
056C17D2060 | 56 | 10.4/5.2 | 3/4 | 10" | Capacitor-Start | 70 | 5/8" | 2" | €417.95 | |
 |
056C17D2061 | 56 | 10.4/5.2 | 3/4 | 10" | Capacitor-Start | 70 | 5/8" | 2" | €434.00 | |
 |
056C17D2097 | 56 | 9.0/4.5 | 1/2 | 8.25" | Capacitor-Start | 59.5 | 5/8" | 1.875" | €351.89 |
