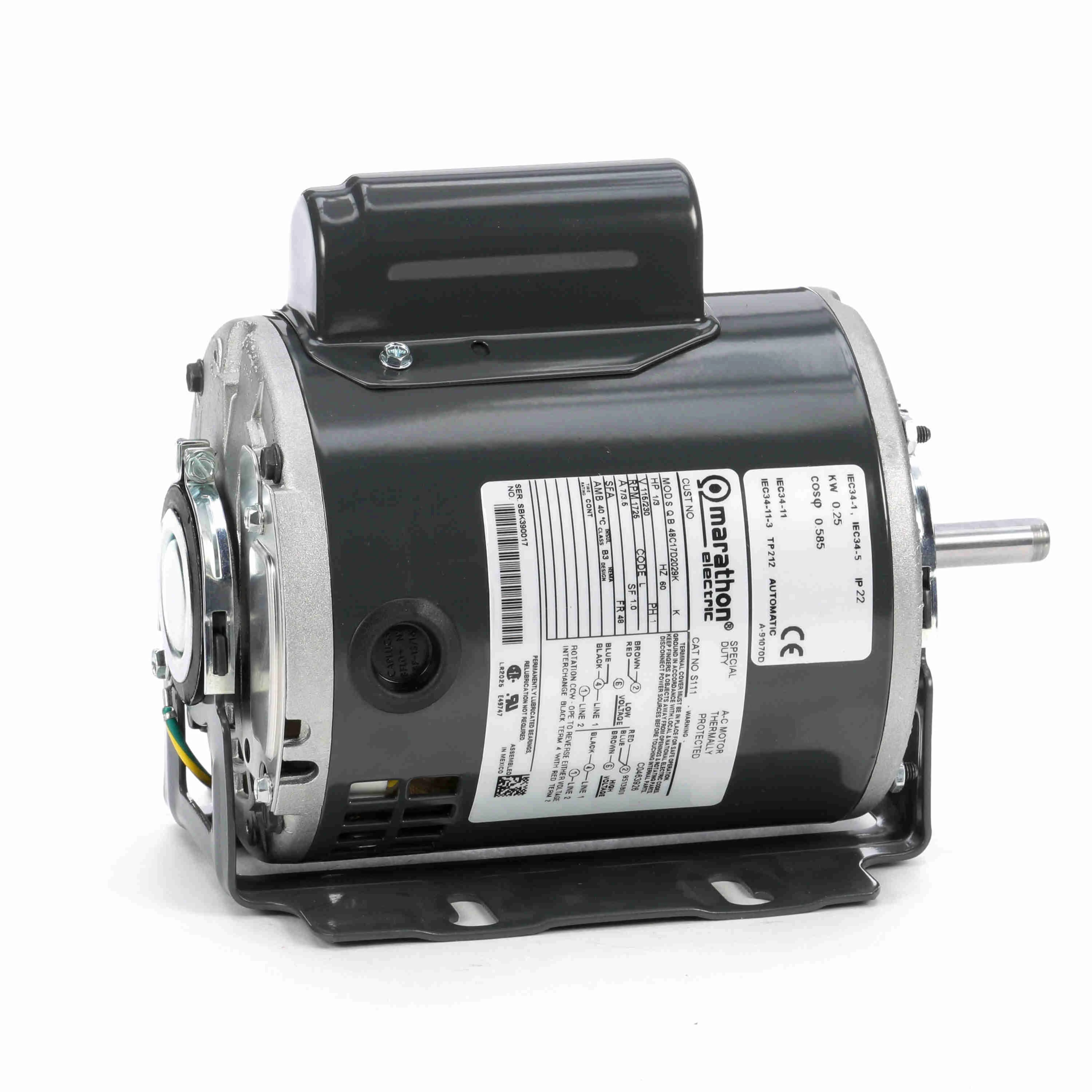

| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 59.5% |
| Enclosure Type | Open Dripproof |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7/3.5A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 7 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Overall Length | 9 5/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 9/16" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Motor Design | Nominal Efficiency | Shaft Dia. | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048C17D2028 | 48 | 7.0/3.5 | 1/3 | 7.75" | Capacitor-Start | 57.5 | 1/2" | 1.5" | €285.83 | |
 |
048S17D2105 | 48Y | 6.6 | 1/3 | 7.75" | Split-Phase | 57.5 | 1/2" | 2" | €249.41 | |
 |
048S17D2106 | 48Z | 9.2 | 1/2 | 8.25" | Split-Phase | 59.5 | 1/2" | 2" | €274.73 | |
 |
056C17D2060 | 56 | 10.4/5.2 | 3/4 | 10" | Capacitor-Start | 70 | 5/8" | 2" | €417.95 | |
 |
056C17D2061 | 56 | 10.4/5.2 | 3/4 | 10" | Capacitor-Start | 70 | 5/8" | 2" | €434.00 | |
 |
056C17D2097 | 56 | 9.0/4.5 | 1/2 | 8.25" | Capacitor-Start | 59.5 | 5/8" | 1.875" | €351.89 | |
 |
056C17D2099 | 56Z | 9.0/4.5 | 1/2 | 8.25" | Capacitor-Start | 59.5 | 5/8" | 2" | €363.61 |
