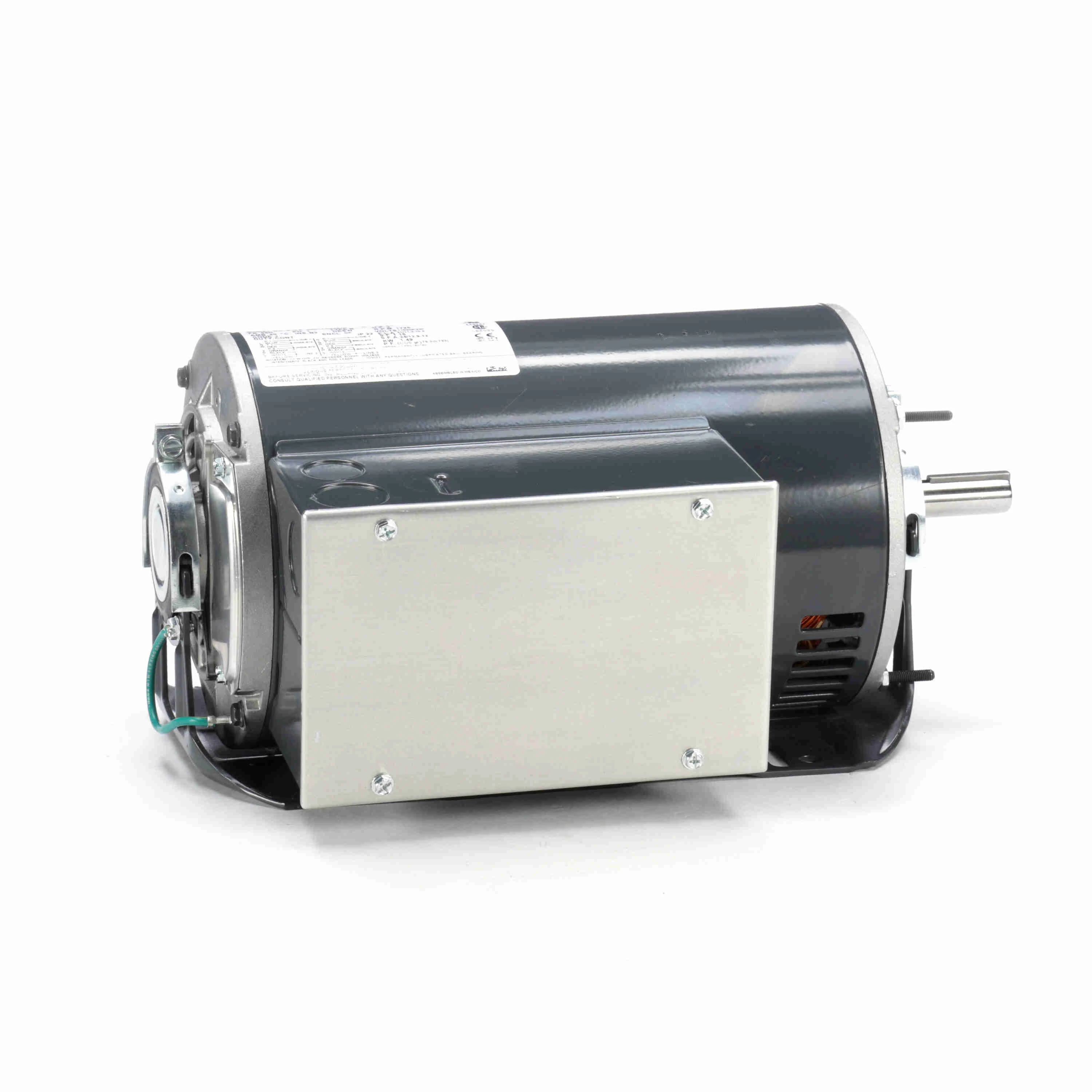

LEESON 056B17D5331 B352 / 56B17D5331H Fan and Blower Motor, 2 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Tuesday, Jun 17
€627.50 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Design | N |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Enclosure Type | Dripproof |
| Frame | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 21/10.5-11.3A |
| Full Load Efficiency | 78.5% |
| Hp | 2 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 11.938" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Thermal Protection | Automatic |
| Mounting Type | Resilient Base Extended Studs |
| Nameplate Rpm | 1800 RPM |
| Nema Design | N |
| Number Of Speeds | 1 |
| Overall Length | 13 7/8" |
| Phase | 1 |
| Power | 1.49 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Warranty | 1 yr. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 50 lbs. |
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | kW | Length Less Shaft | Motor Thermal Protection | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR48TN3084X | 56H | 5.3-5.4/3.6-3.7 | 1, 1/3 | 50/60 | - | 10 11/16" | Auto | Cradle Base | €1,009.98 | |
 |
5KCR49PN3011 | 56 | 9.0/6.4 | 3/4, 1/4 | 60 | - | 9.625" | Auto | Cradle Base | €764.89 | |
 |
5KCR49PN3011X | 56 | 9.0/6.4 | 3/4, 1/4 | 60 | - | 9.625" | None | Cradle Base | €898.24 | |
 |
5KCR49PN3012X | 56 | 4.3-4.4/3.1-3.2 | 3/4, 1/4 | 60 | - | 9.625" | Auto | Cradle Base | €777.23 | |
 |
5KCR49SN3009 | 56 | 10.8/7.4 | 1, 1/3 | 60 | - | 10.125" | None | Cradle Base | €951.96 | |
 |
5KCR49SN3009X | 56 | 10.8/7.4 | 1, 1/3 | 60 | - | 10.125" | Auto | Cradle Base | €990.85 | |
 |
056C17D2074 | 56 | 10.0/5.2-5.0 | 3/4 | 60 | 0.56 | - | - | Resilient Base - Extended Studs | €399.76 |
