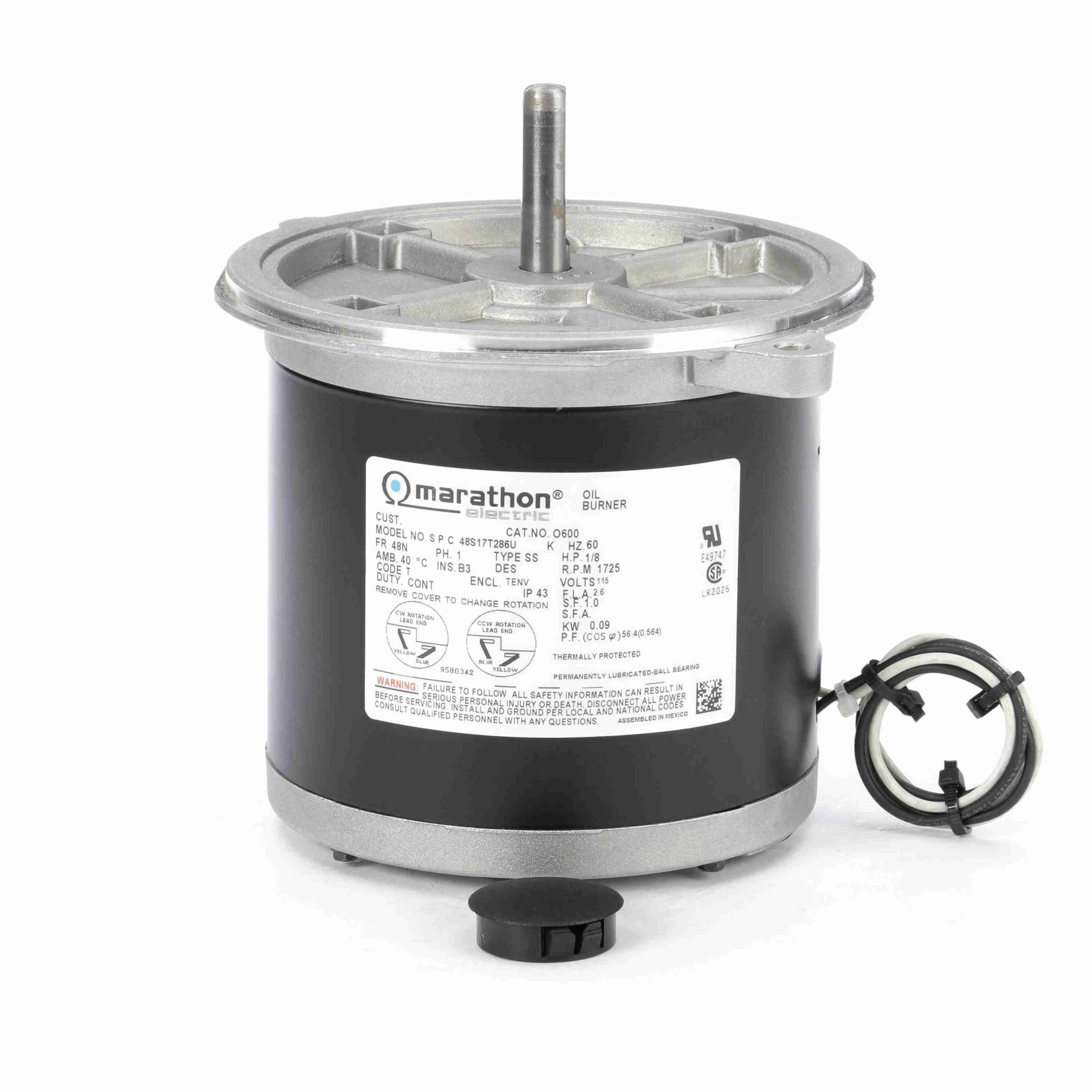

LEESON 048S17T286 48S17T286U / O600 Fan and Blower Motor, 0.13 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Jun 17
€217.52 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Oil Burner Motor |
| Assembly | F1 Only |
| Base Type | Non Removable |
| Bearing Type | Ball |
| Body Dia. | 6 3/4" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 50.5% |
| Features | Nema N Or M Flange Direct, Two Bolt |
| Frame | 48N |
| Frequency | 60 Hz |
| Full Load Amps | 2.6A |
| Full Load Efficiency | 50.5% |
| Hp | 1/8 hp |
| Insulation Class | Class B |
| Lead Length | 20" |
| Length Less Shaft | 5 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Flange Type | Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face, Footless |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Selective Clockwise |
| Motor Sub Application | Oil Burner |
| Motor Thermal Protection | Manual |
| Motor Type | Split Phase |
| Mounting Type | N Flange Footless |
| Nameplate Rpm | 1725 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Number Of Studs | 2 |
| Output Kw | 0.09 kW |
| Overall Length | 7.562" |
| Phase | 1 |
| Power | 0.09 kW |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 3/4" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| No. Of Speeds | 1 |
| Nominal Efficiency | 50.5% |
| Output Watts | 90 W |
| Removable Base | No |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 11 lbs. |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Enclosure | Frame | Full Load Amps | HP | Hz | kW | Mounting | Orientation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH33GN5014U | TENV | 48N | 4.9 | 1/3 | 60 | - | - | Horizontal or Vertical | €285.83 | |
 |
048C34S24 | SEMI ENCLOSED | 48N | 2.95/1.5 | 1/5 | 60 | 0.15 | N-Flange Footless | Horizontal | €281.51 | |
 |
048S17T290 | TENV | 48N | 3.3 | 1/6 | 60 | - | - | Horizontal or Vertical | €198.17 | |
 |
048C34D2024 | DP | 48NZ | 5.6/2.7-2.8 | 1/3 | 60 | 0.25 | N-Flange Footless | Horizontal | €306.21 | |
 |
048S34S2005 | SEMI ENCLOSED | 48MZ | 2.7A | 1/6 | 60 Hz | 0.125 | Round | Horizontal | €282.33 | |
 |
048C34D2028 | DP | 48NZ | 7.4/3.5-3.7 | 1/2 | 60 | 0.37 | N-Flange Footless | Horizontal | €377.81 | |
 |
048S34S2003 | SEMI ENCLOSED | 48NZ | 4.2 | 1/4 | 60 | 0.19 | N-Flange Footless | Horizontal | €281.51 |
