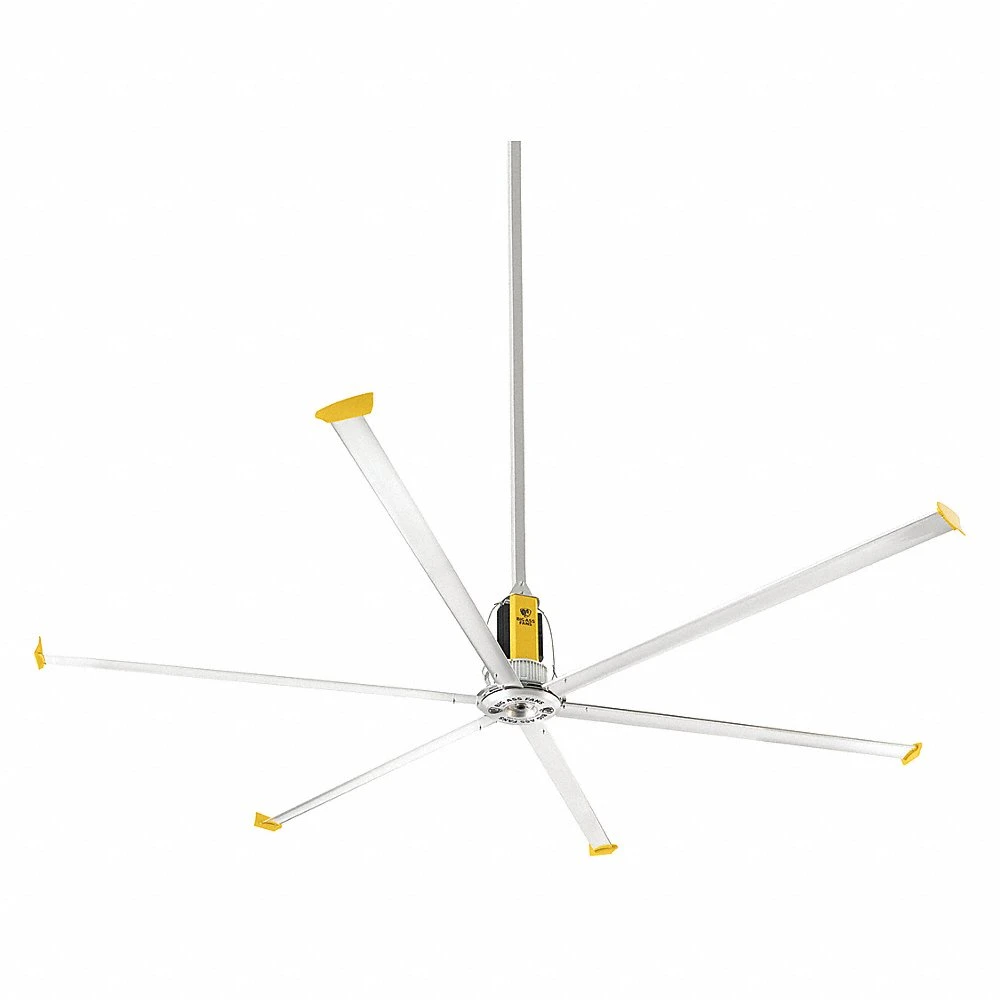

BIG ASS FANS F-PFD1-1622S34 Industrial HVLS Fan, 16 ft Blade Dia, Variable Speeds, 138, 670 cfm, 200 to 277 V AC
Get it by Monday, Jun 16
€15,435.52 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Fan |
| Air Flow Rate | 138670 CFM |
| Amps | 7.55A |
| Blade Color | Silver |
| Blade Dia. | 16 ft. |
| Blade Finish | Anodized Aluminum |
| Blade Material | Aluminum |
| Coverage Area (cooling) | 15000 sq. ft. |
| Down Rod Outside Dia. | 36" |
| Environmental Applications | Industrial |
| Frequency | 50/60 Hz |
| Housing Color | Yellow |
| Housing Finish | Powder Coat |
| Includes | Airfoils, Controller, Drop Tube, Fan Motor Assembly, Mount, Safety Cable |
| Light Kit | No Light |
| Max. Ambient Temp. | 131°F |
| Max. Mounting Height | 29 ft. |
| Min. Mounting Height | 21 ft. |
| Motor Design | Brushless Direct Drive |
| Motor Enclosure Design | Brushless Direct Drive |
| Motor Hp | 1 1/2 hp |
| Motor Insulation | Class F |
| Mounting Location | I Beam, Spanning Trusses Or Joists |
| Mounting Type | Bracket |
| Number Of Blades | 6 |
| Number Of Speeds | Variable |
| Phase | 1, 3 |
| Reversible | Yes |
| Rpm | 108 RPM |
| Sound Level | 35 dBA |
| Speed Control | Yes |
| Thermal Protection | Auto |
| Voltage | 200-277V AC |
| Wattage | 1443 W |
| Air Flow | 138670 CFM |
| Area Covered (cooling) - Fans | 15000 sq. ft. |
| Area Covered (destratification) - Fans | 15000 sq. ft. |
| Bearing Type | Permanently Lubricated, Double Sealed, SKF Ball bearing |
| Blade Diameter | 16 ft. |
| Fan Blade Color | Silver |
| Fan Housing Color | Yellow |
| Fan Mounting Location | I Beam, Spanning Trusses or Joists |
| Fan Watts | 1443 W |
| Hz | 50/60 Hz |
| Motor Enclosure | Brushless Direct Drive |
| Mount Type | Bracket |
| Series | Powerfoil D |
| Speed Controllable - Fans | Yes |
| Standards | CSA STANDARD 22.2 NO. 113, UL STANDARD 507 |
| Ship weight (kg) | 172.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
| Model | Price | |
|---|---|---|
| F-PFD1-1204S34 | €17,070.43 | |
| F-PFD1-1222S34 | €15,616.95 | |
| F-PFD1-1604S34 | €16,886.69 | |
| F-PFD1-2022S34S65 | €16,046.65 | |
| F-PFD1-2004S34S65 | €16,744.48 | |
| F-PFD1-0804S34 | €16,562.69 | |
| F-PFD1-0822S34 | €16,455.47 |
