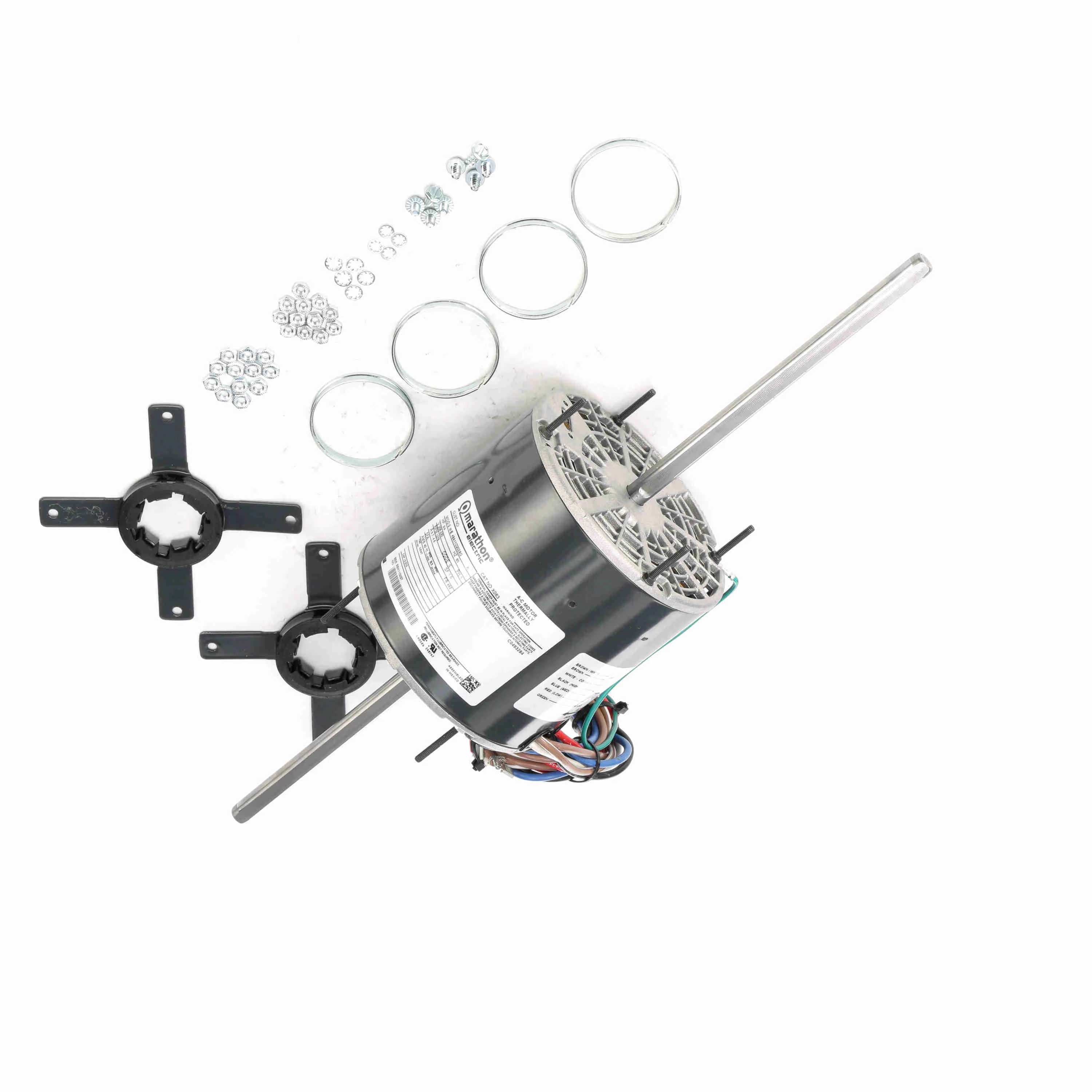

LEESON 048A11O2028 X063 / 48A11O2028G Fan and Blower Motor, 0.75 HP, 1 Phase, 60 Hz, 208-230V, 1200 RPM
Get it by Tuesday, Jun 17
€351.27 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Design | No Design Code |
| Duty Cycle | Continuous |
| Efficiency | 65.7% |
| Enclosure Type | Open Air Over |
| Frame | 48Z |
| Full Load Amps | 4.5-5.7A |
| Hp | 3/4 hp |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Extended Studs Footless |
| Motor Shaft Rotation | Fixed Counter Clockwise |
| Motor Thermal Protection | Automatic |
| Mounting Type | Extended Studs, Footless |
| Nema Design | No Design Code |
| Phase | 1 |
| Power | 0.56 kW |
| Service Factor | 1 |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 208-230V AC |
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 15.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Duty | Frame | Full Load Amps | HP | kW | Mounting | RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
048A17O70 | CONTINUOUS AOM | 48Z | 1.8-1.7 | 1/3 | 0.246 | Resilient Rings - Extended Studs | 1625 | €86.17 | RFQ
|
 |
048A11O2012 | CONTINUOUSAOM | 48Y | 1.0 | 1/8 | 0.09 | Extended Studs - Footless | 1075 | €95.60 |
