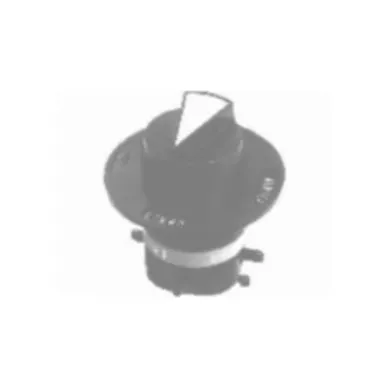

JOHNSON CONTROLS S-2300-2 Pneumatic Selector Switch
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Selector Switch |
| Air Connections Size | 1/4" |
| Air Connections Type | Barbed |
| Control Range | +40°F to +120°F |
| Depth | 2 7/8" |
| Fits Pipe O.d. | 1/4" |
| Height | 2 7/8" |
| Includes | 4 ft. Of 1/4" OD Plastic Tubing, Cover, Mounting Screws |
| Type | Five Ports, One Exhausting, Two Pairs Switching |
| Width | 2 1/2" |
| Air Consumption | 0.579 SCFM |
| Connection Size | 1/4" |
| Connection Type | Barb |
| Maximum Control Pressure | 30 psi |
| Maximum Control Temperature | 120°F |
| Maximum Operating Air Pressure | 30 psi |
| Maximum Operating Temperature | 120°F |
| Minimum Control Pressure | 0 psi |
| Minimum Control Temperature | 40°F |
| Overall Depth | 2 7/8" |
| Overall Height | 2 7/8" |
| Overall Width | 2 1/2" |
| Product Type | Pneumatic Selector Switch |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 7.3 |
| Ship length (cm) | 7.3 |
| Ship width (cm) | 6.35 |
| Country of Origin | MX |
| Product | Model | Price | |
|---|---|---|---|
|
S-2300-3 | €339.12 |
