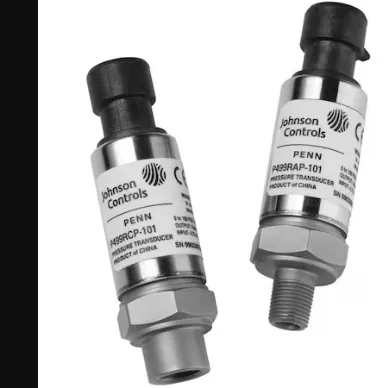

JOHNSON CONTROLS P499VCP-101C Pressure Trans 0-100 Psig, 010 Vdc Output
Get it by Friday, Jun 13
€197.92 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Head Pressure Control |
| For Media | Ammonia, Carbon Dioxide, Condensate, Glycol, Water |
| Housing Material | Stainless Steel |
| Overall Depth | 3 3/16" |
| Overall Width | 7/8" |
| Process Connection Size | 1/4" |
| Input Voltage | 12-30V DC |
| Ip Rating | IP67 |
| Mounting Type | Direct Mount |
| Product Type | Electronic Pressure Transducer |
| Series | P499 Series |
| Standards | C-TICK COMPLIANT, CCN NKPZ, CE LISTED, FILE E29374, FILE E322274, UL LISTED |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.1 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 2.22 |
| Country of Origin | CN |
| Product | Model | Accuracy | Item | Loop Resistance | Max. Pressure | Model | Nema Rating | Operating Temp. | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P499RAP-105C | +/- 1% | Electronic Pressure Transducer | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 0.5 to 4.5 VDC | €201.85 | |
 |
P499RCP-101C | +/- 1% | Electronic Pressure Transducer | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 0.5 to 4.5 VDC | €244.66 | |
|
P499ACP-107C | +/-1% Full Span | Pressure Transducer | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 1500 psi | - | 8 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 4 to 20mA | €324.64 | |
|
P499RAP-101C | +/-1% Full Span | Pressure Transducer | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 200 psi | - | 9 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 0.5 to 4.5 VDC | €194.75 | |
|
P499RAP-107C | +/-1% Full Span | Pressure Transducer | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 1500 psi | - | 11 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 0.5 to 4.5 VDC | €191.23 | |
 |
P499RCP-105C | - | Pressure Transmitter | - | - | - | - | - | - | €248.90 | |
 |
P499RCP-107 | - | Transducer | - | - | P499Rcp-107 | - | - | - | €269.66 |
