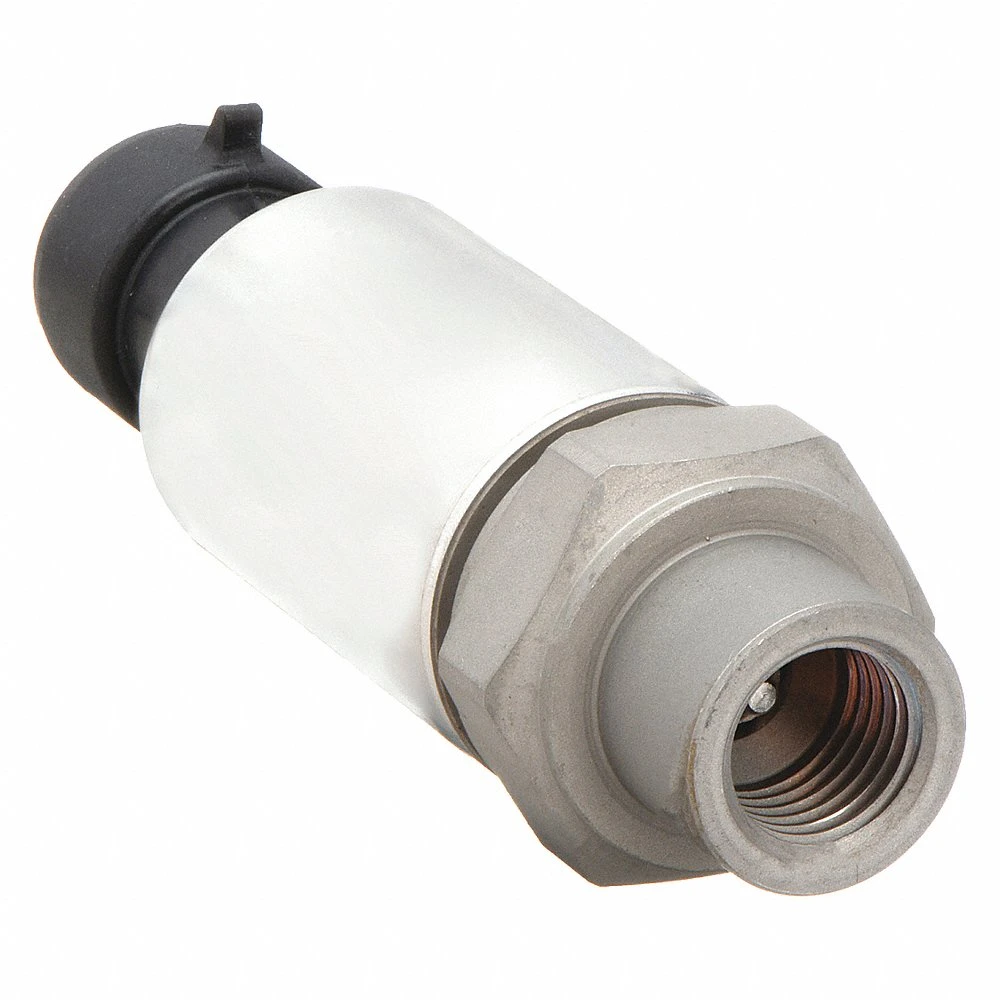

JOHNSON CONTROLS P499RCP-105C Pressure Transmitter, 0 Psi To 500 Psi, 0.5 To 4.5V Dc, 3-Pin Packard Connector
Get it by Friday, Jun 13
€248.90 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Pressure Transmitter |
| Accuracy | -1% to +1% |
| Burst Pressure | 5x |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Electrical Connection | 3-Pin Packard Connector |
| Explosion/fire Proof | No |
| Features | 1% Total Error Band, Environmentally Protected Electronics, Long Operating Life, Single-Piece Machined Port |
| Fitting Material | Stainless Steel |
| For Media Type | Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water |
| For Use With Media Type | Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water |
| Full-scale Accuracy | ±1% Of Full Scale |
| Housing Material | Stainless Steel |
| Includes | Transducer |
| Intrinsically Safe | No |
| Max. Operating Temp. | 185°F |
| Max. Pressure | 500 psi |
| Maximum Loop Resistance | 100 M ohms |
| Mfr. Series | P499 Series |
| Min. Operating Temp. | -40°F |
| Min. Pressure | 0 psi |
| Nist Traceable Certificate | No |
| Number Of Wires | 3 |
| Operating Temp. | -40°F to +185°F |
| Output | 0.5-4.5V DC |
| Overall Length | 3.19" |
| Overall Width | 7/8" |
| Overpressure | 2x |
| Pressure Range | 0 psi to 500 psi |
| Pressure Units | Psig/Bar |
| Process Connection Angle | 45° |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Connection Size - Transmitter | 1/4" |
| Range | 0 psi to 500 psi |
| Range Units | Psi |
| Safety Rating | Class I Div. 2 |
| Storage Temp. Range | -40°F to +257°F |
| Wetted Materials | Stainless Steel |
| Electrical Connections | 3 Pin Packard Connector |
| Manufacturers Warranty Length | 3 yrs. |
| Maximum Operating Temperature | 185°F |
| Maximum Pressure | 500 psi |
| Minimum Operating Temperature | -40°F |
| Minimum Pressure | 0 psi |
| Power Required | 5V DC |
| Process Connection | 1/4" Male SAE 45° Flare |
| Process Connection Type | SAE 45° Flare |
| Series | P499 Series |
| Standards | UL LISTED |
| Storage Temperature Range | -40°F to 257°F (-40°C to 125°C) |
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 2.22 |
| Country of Origin | CN |
| Product | Model | Accuracy | Item | Loop Resistance | Max. Pressure | Model | Nema Rating | Operating Temp. | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P499RAP-105C | +/- 1% | Electronic Pressure Transducer | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 0.5 to 4.5 VDC | €201.85 | |
 |
P499RCP-101C | +/- 1% | Electronic Pressure Transducer | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 0.5 to 4.5 VDC | €244.66 | |
|
P499ACP-107C | +/-1% Full Span | Pressure Transducer | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 1500 psi | - | 8 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 4 to 20mA | €324.64 | |
|
P499RAP-101C | +/-1% Full Span | Pressure Transducer | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 200 psi | - | 9 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 0.5 to 4.5 VDC | €194.75 | |
|
P499RAP-107C | +/-1% Full Span | Pressure Transducer | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 1500 psi | - | 11 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 0.5 to 4.5 VDC | €191.23 | |
 |
P499RCP-107 | - | Transducer | - | - | P499Rcp-107 | - | - | - | €269.66 | |
|
P499ACP-107 | - | Transducer | - | - | P499Acp-107 | - | - | - | €274.90 |
