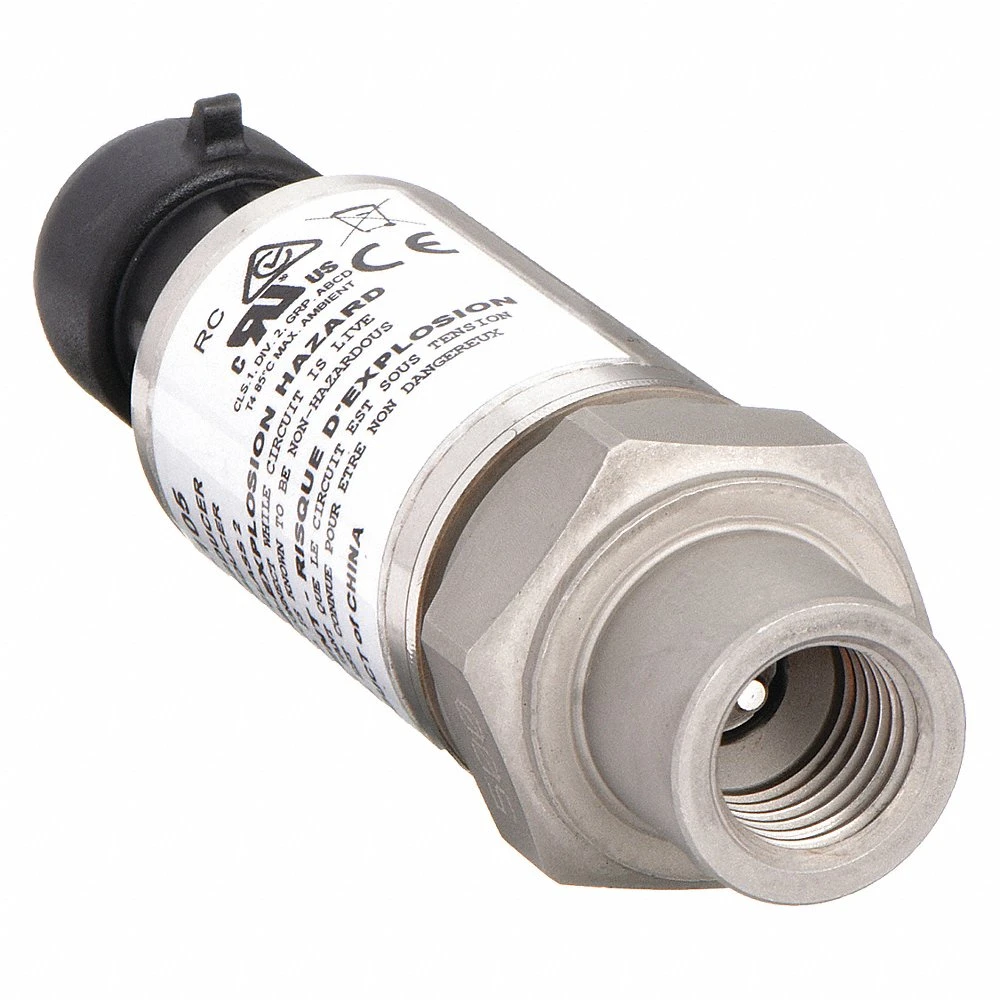

JOHNSON CONTROLS P499RCP-101K Pressure Transducer 0 To 100 Psi
Get it by Tuesday, Jun 17
€327.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Electronic Pressure Transducer |
| Accuracy | -1% to +1% |
| Cable Length | 6.5 ft. , 78" |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Compatible With | All Media Compatible With 17-4Ph Stainless Steel, Including Ammonia |
| Explosion/fire Proof | No |
| Features | 1% Total Error Band, Environmentally Protected Electronics, Long Operating Life, Single-Piece Machined Port |
| Fitting Material | Stainless Steel |
| For Use With Media Type | Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water |
| Housing Material | Stainless Steel |
| Intrinsically Safe | No |
| Loop Resistance | Minimum Between Transducer Body And Any Wire, 100 m ohms @ 500 V DC |
| Material | Stainless Steel |
| Nema Rating | 7 - Class 1, Division 2, Groups A, B, C, And D |
| Nist Traceable Certificate | No |
| Number Of Wires | 3 |
| Operating Temp. | -40°F to +185°F |
| Output | 0.5-4.5V DC |
| Output Voltage | 0.5-4.5V DC |
| Overall Length | 3.19" |
| Overall Width | 7/8" |
| Power Required | 5V DC |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Connection Size - Transmitter | 1/4" |
| Range | 0 psi to 100 psi |
| Range Units | Psi |
| Burst Pressure | 5x Range |
| Electrical Connections | 3 Pin Packard Connector |
| Full-scale Accuracy | -1% to +1% Full Scale |
| Includes | 6.5 ft. (2m) Wire Harness, Transducer |
| Manufacturers Warranty Length | 3 yrs. |
| Maximum Loop Resistance | 100 Mega ohms @ 500V DC |
| Maximum Operating Temperature | 185°F |
| Maximum Pressure | 100 psi |
| Minimum Operating Temperature | -40°F |
| Minimum Pressure | 0 psi |
| Overpressure | 2 x Range |
| Pressure Range | 0 psi to 100 psi |
| Pressure Units | psig/bar |
| Process Connection | 1/4" Male SAE 45° Flare |
| Process Connection Type | SAE 45° Flare |
| Safety Rating | Class I Div. 2 |
| Series | P499 Series |
| Standards | UL LISTED |
| Storage Temperature Range | -40°F to 257°F (-40°C to 125°C) |
| Wetted Materials | Stainless Steel |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 2.22 |
| HS code | 9026204000 |
| Country of Origin | CN |
| Model | Accuracy | Item | Lead Length | Loop Resistance | Max. Pressure | Nema Rating | Operating Temp. | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P499ACP-107K | +/- 1% | Electronic Pressure Transducer | 78" | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 4 to 20 mA | €218.56 | |
| P499RAP-105K | +/- 1% | Electronic Pressure Transducer | 78" | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 0.5 to 4.5 VDC | €208.90 | |
| P499RCP-105K | +/- 1% | Electronic Pressure Transducer | 78" | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 0.5 to 4.5 VDC | €402.20 | |
| P499VCP-105K | +/- 1% | Electronic Pressure Transducer | 78" | Minimum Between Transducer Body and Any Wire, 100 MOhms @ 500 Vdc | - | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 to 185 Degrees F | 0 to 10 VDC | €230.34 | |
| P499VCP-107K | +/-1% Full Span | Pressure Transducer | 78.74" | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 1500 psi | 13 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 0 to 10 VDC | €235.62 | |
| P499ACP-105K | +/-1% Full Span | Pressure Transducer | 78.74" | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 1000 psi | 7 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 4 to 20mA | €235.08 | |
| P499RAP-101K | +/-1% Full Span | Pressure Transducer | 78.74" | Minimum Between Transducer Body and Any Wire: 100 megohm @ 500 VDC | 200 psi | 10 - Class 1, Division 2, Groups A, B, C, and D | -40 Degrees to 185 Degrees F | 0.5 to 4.5 VDC | €208.90 |
