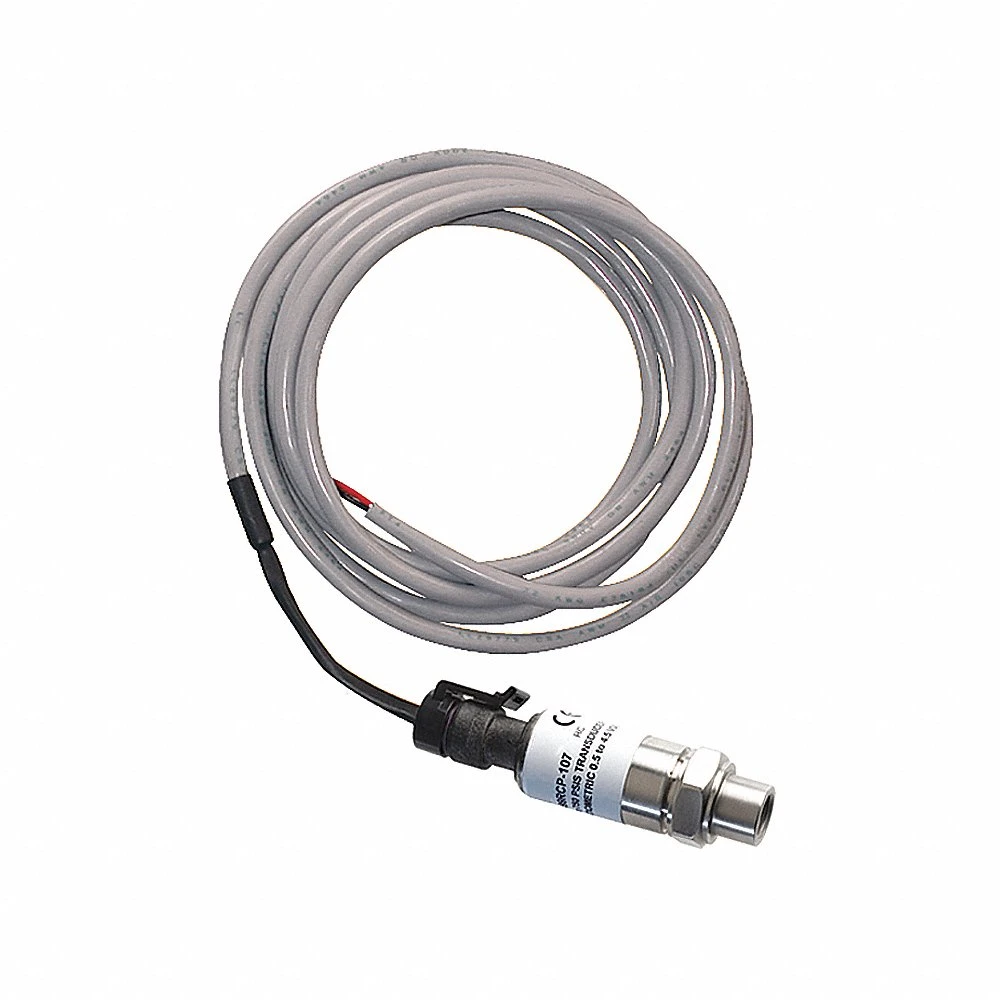

JOHNSON CONTROLS P266SNR-2C Pressure Transducer 0 To 754 Psi
Get it by Tuesday, Jun 17
€180.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pressure Transducer |
| Ambient Temp. Range | -40°C to +60°C |
| Application | Condenser Fans, Refrigeration |
| Controls | Single Stage Condenser Fans |
| Housing Material | Aluminum |
| Max. Pressure Range | 754 psig |
| Overall Depth | 2 3/4" |
| Overall Height | 6 1/4" |
| Overall Width | 7" |
| Pressure | 0 psi to 754 psi |
| Process Connection Gender | Female |
| Process Connection Size | 1/4" |
| Sensor Cable Length | 6.6 ft. |
| Input Voltage | 5V DC |
| Ip Rating | IP54 |
| Mounting Type | Remote Mount |
| Nema Rating | 3R |
| Pressure Range | 0 psig to 754 psig |
| Pressure Range - Maximum | 754 psig |
| Pressure Range - Minimum | 0 psig |
| Product Type | Electronic Pressure Transducer |
| Series | P266 Series |
| Standards | C-TICK COMPLIANT (N1813), CE LISTED, CULUS FILE E244421, FCC TO CFR47 PART 15, SUBPART B CLASS A |
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 17.78 |
| HS code | 9026204000 |
| Country of Origin | CN |
| Model | Ambient Temp. Range | Function | Item | Pressure | Requires | Price | |
|---|---|---|---|---|---|---|---|
| P266ABA-100C | -40 to 60 C | - | Condenser Fan Speed Control | - | P266SNR-1C or P266SNR-2C | €649.43 | |
| P266ACA-100C | -40 to 60 C | - | Condenser Fan Speed Control | - | P266SNR-1C or P266SNR-2C | €560.45 | |
| P266BCA-100C | -40 to 60 C | - | Condenser Fan Speed Control | - | P266SNR-1C or P266SNR-2C | €677.66 | |
| P266BHA-100C | -40 to 60 C | - | Condenser Fan Speed Control | - | P266SNR-1C or P266SNR-2C | €799.23 | |
| P266AAA-100C | -40 to 60 Degrees C | Fan Speed Control | Condenser Fan Speed Control | Senser Dependent. Refer to P266SNR-1C or P266SNR-2C | P266SNR-1C or P266SNR-2C | €514.57 | |
| P266BHA-2K | -40 to 60 Degrees C | Fan Speed Control | Condenser Fan Speed Control | Senser Dependent. Refer to P266SNR-1C or P266SNR-2C | - | €1,101.61 | |
| P266SNR-1C | -40 to 60 C | - | Pressure Transducer | 0 to 508 PSI | - | €180.55 |
