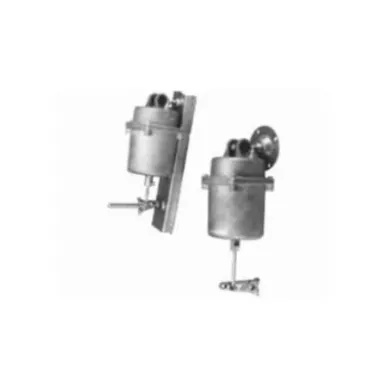

| Item | Damper Actuator |
| Actuator Connection | Ball Joint Connector |
| Actuator Type | Linear |
| Air Connection Size | 1/8" |
| Air Connection Type | NPT |
| Application | Dampers |
| Control Pressure - Maximum | 30 psi |
| Control Pressure - Minimum | 20 psi |
| Diaphragm Material | Synthetic Elastomer |
| Fire/smoke Applications | Not UL Recognized Components for Fire/Smoke Applications |
| Includes Positioner | Positioner Not Included |
| Installation Orientation | Versatile |
| Manufacturer Series | D-3153 |
| Mounting | Pivot |
| Mounting Hardware Included | Mounting Bracket |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -20°F |
| Overall Width | 5 1/4" |
| Specific Valve Action | Spring Return Down |
| Spring Range Maximum | 13 psi |
| Spring Range Minimum | 8 psi |
| Stroke | 3" |
| Valve Action | Normally Closed, Normally Open |
| Ship weight (kg) | 2.93 |
| Country of Origin | MX |
| Product | Model | Height | Item | Length | Operating Pressure | Stroke | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
D-3153-2 | 6" | Linear Pneumatic Actuator | 12" | 0 to 20 | 3" | 6" | €807.17 | |
|
D-3153-1 | 8" | Linear Pneumatic Actuator | 12" | 0 to 20 | 3" | 6" | €1,182.43 | |
|
D-3153-3 | 6" | Linear Pneumatic Actuator | 12" | 0 to 20 | 3" | 6" | €840.09 | |
 |
D-3244-3 | 23.625" | Pneumatic Damper Actuator | 15.75" | 0 to 25 | 4" | 12" | €1,777.00 | |
 |
D-3244-4 | 23.625" | Pneumatic Damper Actuator | 15.75" | 0 to 25 | 4" | 12" | €1,043.70 | |
 |
D-3246-1 | 28" | Pneumatic Damper Actuator | 15.75" | 0 to 25 | 6" | 12" | €1,721.27 | |
|
D-3153-20 | - | Damper Actuator | - | - | - | - | €956.14 |
