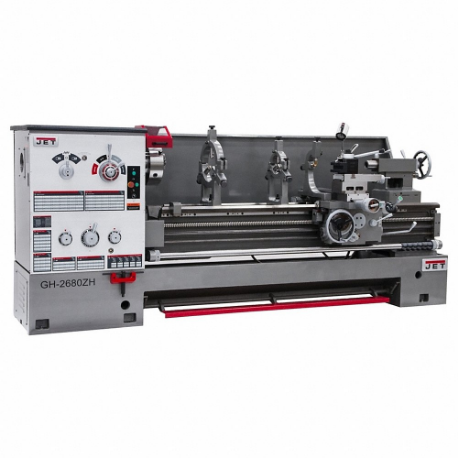

JET TOOLS 321863 Lathes, Turning, 26 Inch Size x 80 in, 4 1/8 Inch Size Spindle Bore, D1-8 Camlock
Get it by Tuesday, Jun 17
€72,590.60 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Lathe |
| Applications | Turning |
| Bed Width | 12" |
| Distance Between Centers | 80" |
| Drive | Geared Head |
| Features | End Mill Styleinch And Metricspiral Cutting Edgesteel And Carbide Tool Shanksvery High Insert Diameter (+0 / -20Micron M) And Corner Radius Precision ( +/-8Micron M) |
| Frequency | 60 Hz |
| Hp | 7 1/2 hp |
| Includes | (2) Steady Rests With Roller Bearings (5) Piece Quick Change Tool Post Set, 12" 3 Jaw Scroll Chuck With Top Reversing Jaws, Drive Plate, E-Stop On Carriage, Electronic Chuck Key Holder, Face Plate, Fitted Top Mats To Hold Tooling, Follow Rest, Foot Brake, Fully Integrated Coolant System, Large Capacity Steady Rest With Ball Bearing Tips, Led Work Lamp, Micro-Carriage Bed Stop |
| Length Of Gap | 8 |
| Max. Metric Thread | 14 mm |
| Max. Spindle Speed | 1600 RPM |
| Max. Threads Per Inch | 72 |
| Min. Cross Feed | 0.01" |
| Min. Metric Thread | 1 mm |
| Min. Spindle Speed | 36 RPM |
| Min. Threads Per Inch | 1.625 |
| Number Of Inch Threads | 48 |
| Number Of Metric Threads | 22 |
| Number Of Spindle Speeds | 12 |
| Overall Width | 40" |
| Phase | Three |
| Sound Level | 88 dBA |
| Spindle Bore | 4 1/8" |
| Spindle Nose Type | D1-8 Camlock |
| Swing In Gap | 34" |
| Swing Over Bed | 26" |
| Swing Over Cross Slide | 16 1/2" |
| Tailstock Taper | MT5 |
| Voltage | 230/460V AC |
| Ship weight (kg) | 4162.95 |
| Ship height (cm) | 144.78 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 109.22 |
| Country of Origin | CN |
