Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

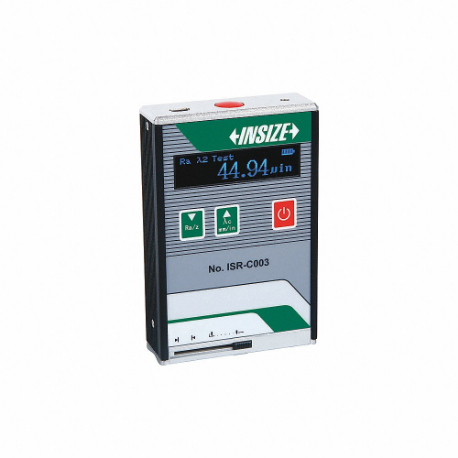

| Item | Surface Roughness Tester |
| Analysis Graph | Yes |
| Battery Included | Yes |
| Battery Voltage | 9V |
| Compatible Memory Card | None |
| Detector Measuring Force | 3.34 mN |
| Dimensions (display Unit) | 0.94" x 2.75" x 4.17" |
| Display Functions | Select Sampling Length |
| Display Size | 2 7/25" |
| Drive Unit | Skidded |
| Drive Unit Principle | Skid |
| Features | Automatic Power Off |
| Includes | Calibration Block |
| Includes Case | No |
| Includes Printer | No |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 104°F |
| Measuring Condition Standards | ANSI, ISO-4287, JISB0601, ISO-12085, JIS-B0631 |
| Number Of Parameters Measured | 4 |
| Number Of Sampling Spans | 3 |
| Operating Position | Horizontal, Vertical |
| Operating Temp. Range | -4°F to +104°F |
| Probe Positions | Axial |
| Probe Sensor Type | Piezoelectric |
| Probe Tip Radius | 10 µm |
| Profile | Ra, Rz, Rq, Rt |
| Profile Resolution | 0.01 µin. |
| Sampling Length | 1/5" |
| Sampling Range Arbitrary Length | 4.17 mm |
| Spc Output | No |
| Transverse Cutoff Length | 0.01" |
| Dimensions - Display Unit | 0.94" x 2.75" x 4.17" |
| Display Screen Size | 2.28" |
| Includes Battery | Yes |
| Maximum Operating Temperature - C | 40°C |
| Maximum Operating Temperature - F | 104°F |
| Measuring Range | 2µin. to 590µin., 4µin. to 1968µin. |
| Measuring Range (in.) | 2µin. to 590µin., 4µin. to 1968µin. |
| Measuring Range (mm) | 0.05 mm |
| Measuring Range Ra | 0.05 μm to 15 μm |
| Measuring Range Rz | 0.1 μm to 50 μm |
| Minimum Operating Temperature - C | -20°C |
| Minimum Operating Temperature - F | -4°F |
| Operating Temperature Range | -4°F to +104°F |
| Parameters Measured | Ra, Rq, Rt, Rz |
| Power Supply | 9V Battery |
| Product Type | Portable Surface Roughness Tester with Onboard Display |
| Tester Series | Series Insize C003 |
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
ISR-C002 | €3,491.45 | |
 |
ISR-S400 | €6,810.85 | |
 |
ISR-C300 | €3,906.33 | |
 |
ISR-S1000B | €24,406.12 |
