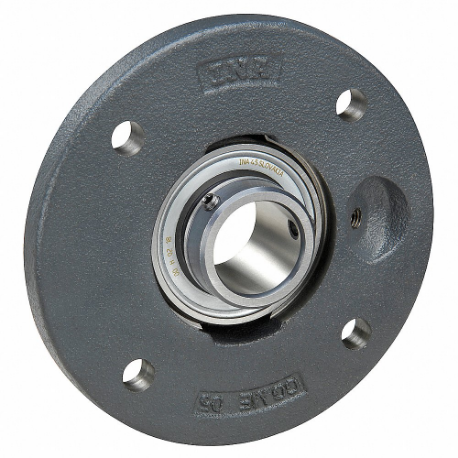

| Item | Bearing |
| Bolt Circle Dia. | 100 mm |
| Bore Dia. | 30 mm |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 20700N |
| Flange Thickness | 9.5 mm |
| Grade | Grade 100CR6 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Circular |
| Included Bearing | Radial Insert Ball |
| Includes | Text |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Load Direction | Radial |
| Lubricant Material | Lithium Complex Grease |
| Lubrication Openings | Threaded Lubrication Hole |
| Max. Temp. | 50°C |
| Min. Temp. | -30°C |
| Mount Hole Size | 11.5 mm |
| Mounting Bolt Size | M10 |
| Number Of Mounting Holes | 4 |
| Overall Height | 125 mm |
| Overall Length | 125 mm |
| Overall Width | 19 mm |
| Rolling Element Rows | 1 |
| Seal Material | Nitrile Rubber |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screws |
| Split Housing | Not Split |
| Static Radial Load Capacity | 11300N |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 100CR6 |
| Bolt Circle Diameter | 100 mm |
| Bore Diameter | 30 mm |
| Closure | Double Sealed |
| Expansion Type | Fixed |
| Maximum Temperature | 50°C |
| Minimum Temperature | -30°C |
| Number Of Mount Holes | 4 |
| Standards | GTB14 DIN1680-2 |
| Ship weight (kg) | 1.07 |
| Ship height (cm) | 12.5 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 1.9 |
| Country of Origin | SK |
