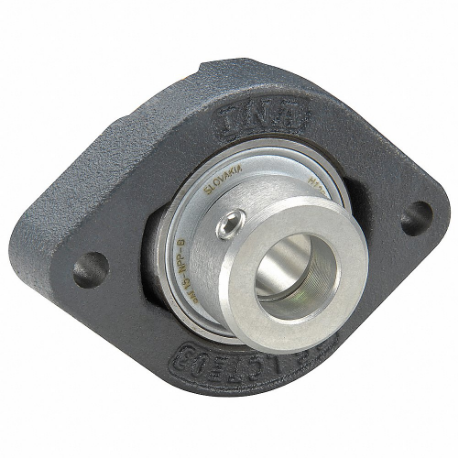

| Item | Bearing |
| Bore Dia. | 15 mm |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 9800N |
| Flange Thickness | 15 mm |
| Grade | Grade 100CR6 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | Radial Insert Ball |
| Includes | Text |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Load Direction | Radial |
| Lubricant Material | Lithium Complex Grease |
| Lubrication Openings | None |
| Max. Temp. | 50°C |
| Min. Temp. | -30°C |
| Mount Hole Center-to-center Length | 63.5 mm |
| Mount Hole Size | 6.6 mm |
| Mounting Bolt Size | M6 |
| Number Of Mounting Holes | 2 |
| Overall Height | 58.7 mm |
| Overall Length | 81 mm |
| Overall Width | 30.5 mm |
| Rolling Element Rows | 1 |
| Seal Material | Nitrile Rubber |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Eccentric Collar |
| Split Housing | Not Split |
| Static Radial Load Capacity | 4750N |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.87 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 3.05 |
| Country of Origin | SK |
