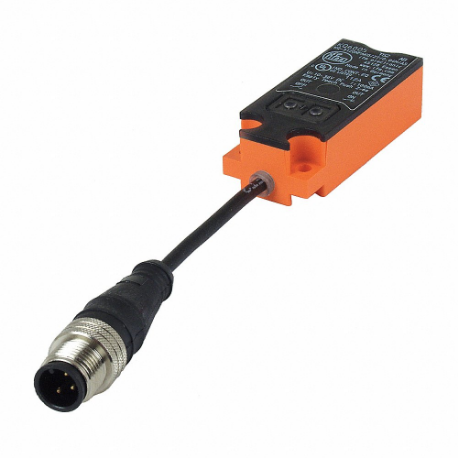

| Item | Rectangular Proximity Sensor |
| Basic Proximity Sensor Case Material | Plastic |
| Depth | 14 mm |
| Electronic Lock | Yes |
| Housing | Rectangular |
| Length | 48 mm |
| Max. Detecting Distance | 12 mm |
| Max. Load Current | 100 mA |
| Output Mode | NC/No |
| Overload Protection | Yes |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Operating Frequency | 10 Hz |
| Proximity Sensor Output Circuit Type | PNP |
| Reverse Polarity Protection | Yes |
| Shielded / Unshielded | Unshielded |
| Short-circuit Protection | Yes |
| Sio Mode | Yes |
| Teach Function | Yes |
| Thread Size | M12 |
| Type Of Short-circuit Protection | Pulsed |
| Width | 20 mm |
| Ac Supply Voltage Rating | Not Rated |
| Body Material | PBT |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Easy Installation |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67, IP69K |
| Number Of Pins | 3 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | NO or NC |
| Output Circuit Current - Maximum | 100 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Sensing Distance - Maximum | 12 mm |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Capacitive |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 0.1m |
| Sensor Depth | 14 mm |
| Sensor Height | 48 mm |
| Sensor Width | 20 mm |
| Standards | EN 55011, EN 60068-2-27, EN 61000-4-2 ESD, EN 61000-4-3 HF RADIATED, EN 61000-4-4 BURST, EN 61000-4-6 HF CONDUCTED, UL LISTED |
| Supply Voltage | 10-30V DC |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.4 |
| Ship length (cm) | 4.8 |
| Ship width (cm) | 2 |
| Country of Origin | DE |
