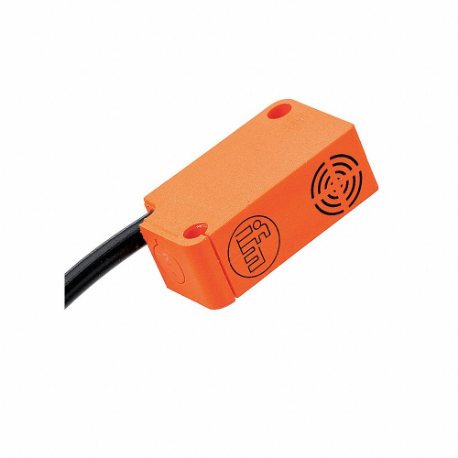

| Item | Rectangular Proximity Sensor |
| Basic Proximity Sensor Case Material | Plastic |
| Cable Length | 2m |
| Depth | 16 mm |
| Length | 28 mm |
| Max. Detecting Distance | 2 mm |
| Max. Load Current | 200 mA |
| Output Mode | NC |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection | Cable |
| Proximity Sensor Operating Frequency | 800 Hz |
| Proximity Sensor Output Circuit Type | NPN |
| Shielded / Unshielded | Shielded |
| Width | 10 mm |
| Ac Supply Voltage Rating | Not Rated |
| Body Material | PBT |
| Dc Supply Voltage Rating | 10-36V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Number Of Wires | 3 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -4°F |
| Output Circuit | NPN |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 200 mA |
| Output Circuit Type | NPN |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Overall Depth | 16 mm |
| Overall Height | 28 mm |
| Overall Width | 10 mm |
| Sensing Distance - Maximum | 2 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 2m |
| Standards | EN 55011, EN 61000-4-2 ESD, EN 61000-4-3 HF RADIATED, EN 61000-4-4 BURST, EN 61000-4-6 HF CONDUCTED |
| Supply Voltage | 10-36V DC |
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 2.8 |
| Ship width (cm) | 1 |
| Country of Origin | RO |
