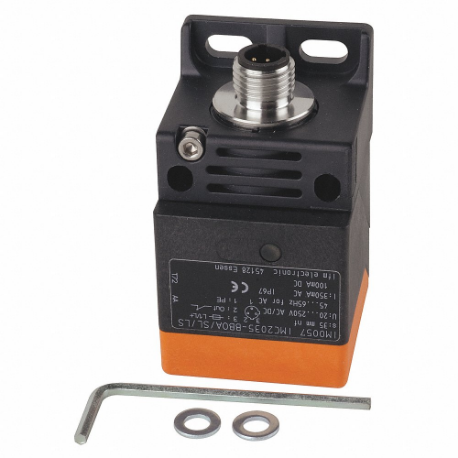

| Item | Rectangular Proximity Sensor |
| Basic Proximity Sensor Case Material | Plastic |
| Case Material | PPE, PPS |
| Depth | 40 mm |
| Housing | Rectangular |
| Increased Sensing Range | Yes |
| Length | 66 mm |
| Max. Detecting Distance | 35 mm |
| Max. Load Current | 250/100 mA |
| Number Of Pins | 3 |
| Operating Temp. Range | -13°F to +158°F |
| Output Mode | NC |
| Overload Protection | No |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection Type | Unf Male Connector |
| Proximity Sensor Operating Frequency | 25 Hz AC/50 Hz DC |
| Proximity Sensor Output Circuit Type | Three Wire |
| Reverse Polarity Protection | No |
| Shielded / Unshielded | Unshielded |
| Short-circuit Proof | No |
| Thread Size | 1/2"-20 |
| Width | 40 mm |
| Ac Supply Voltage Rating | 20-250V AC |
| Body Finish | Bronze Coated |
| Body Material | PPE |
| Dc Supply Voltage Rating | 20-250V DC |
| Display Qty | 1 |
| Electrical Connection | 1/2" Connector |
| Electrical Installation Type | Direct Connector |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Number Of Wires | 2 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | 2 Wire AC/DC |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 250 mA |
| Output Circuit Type | AC, DC-Type |
| Output Circuit Voltage - Maximum | 6V DC |
| Overall Depth | 40 mm |
| Overall Height | 66 mm |
| Overall Width | 40 mm |
| Sensing Distance - Maximum | 35 mm |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Rectangular |
| Standards | EN 55011, EN 60947-5-2 |
| Supply Voltage | 20-250V AC, 20-250V DC |
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 4 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 4 |
| Country of Origin | RO |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
IM0020 | Proximity Sensor | €226.80 | |
 |
KQ6005 | Rectangular Proximity Sensor | €158.98 | |
 |
KQ6003 | Rectangular Proximity Sensor | €155.67 | |
 |
KQ6001 | Rectangular Proximity Sensor | €186.08 | |
 |
IS5001 | Rectangular Proximity Sensor | €89.80 | |
 |
IM5115 | Rectangular Proximity Sensor | €117.46 | |
|
IM5116 | Rectangular Proximity Sensor | €121.99 |
